Product Catalogue

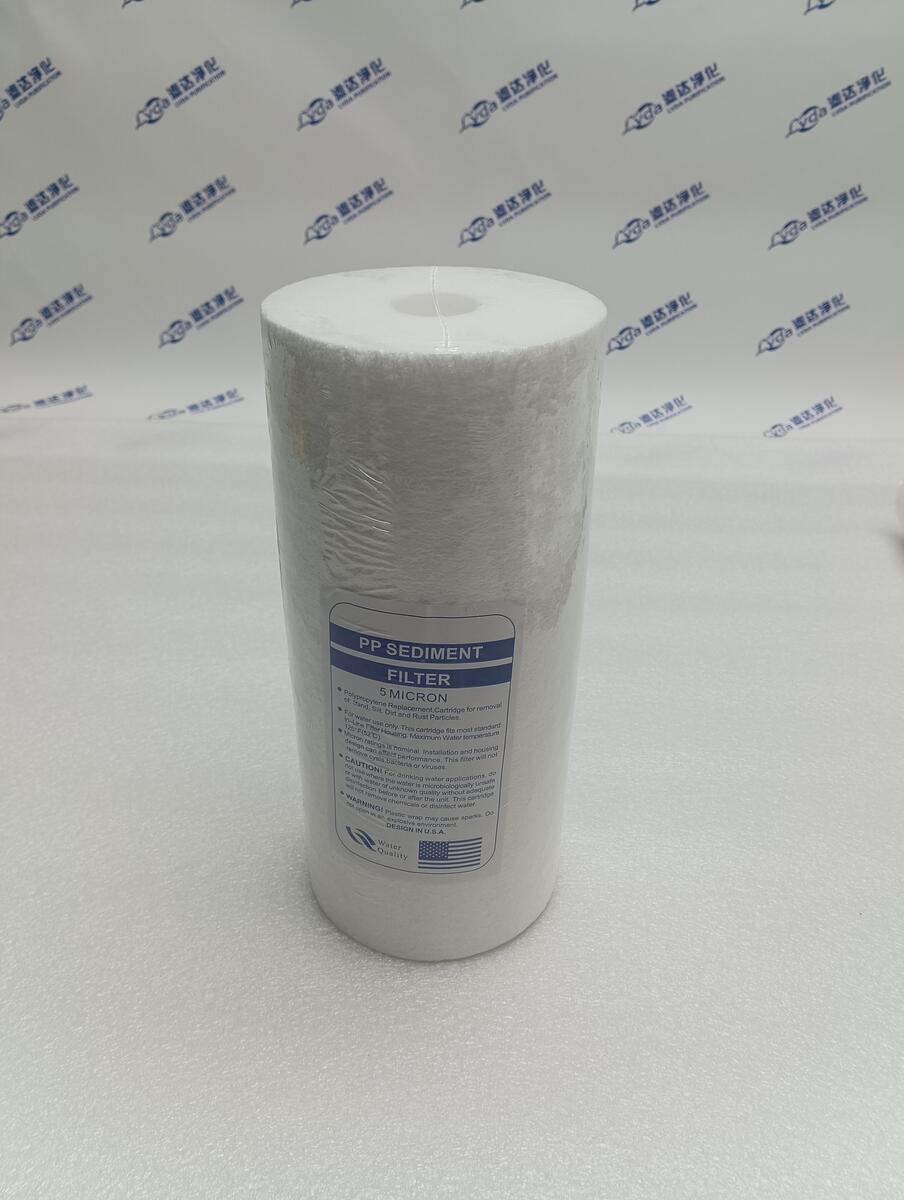

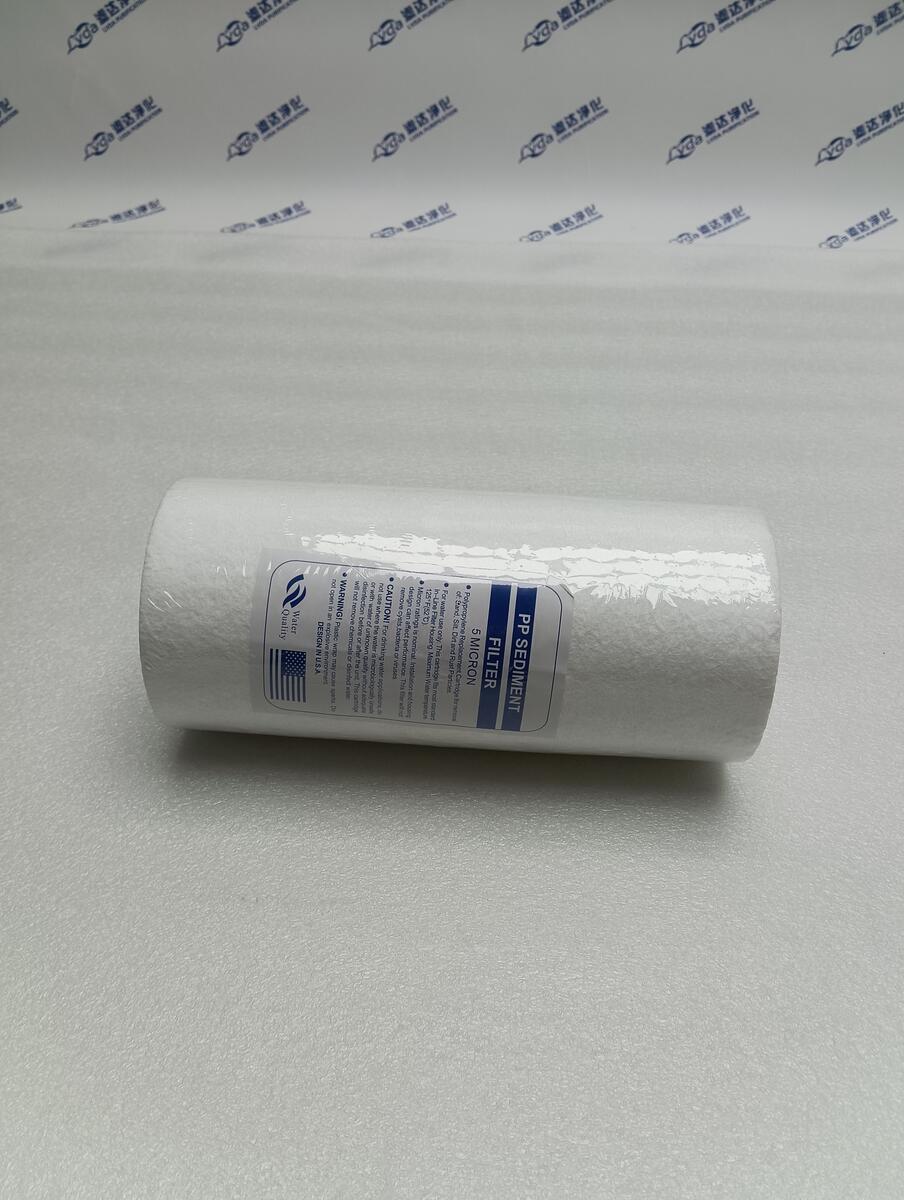

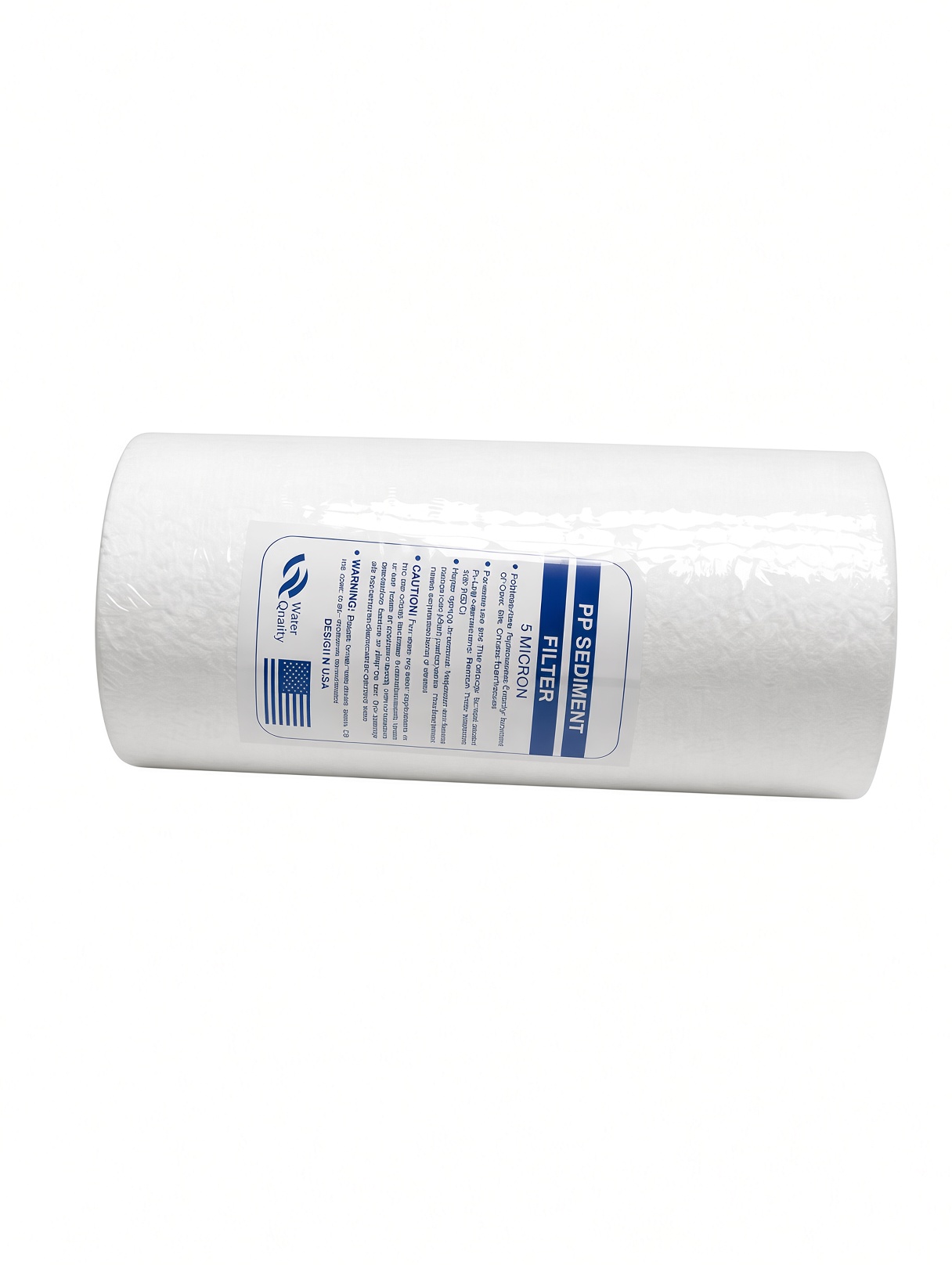

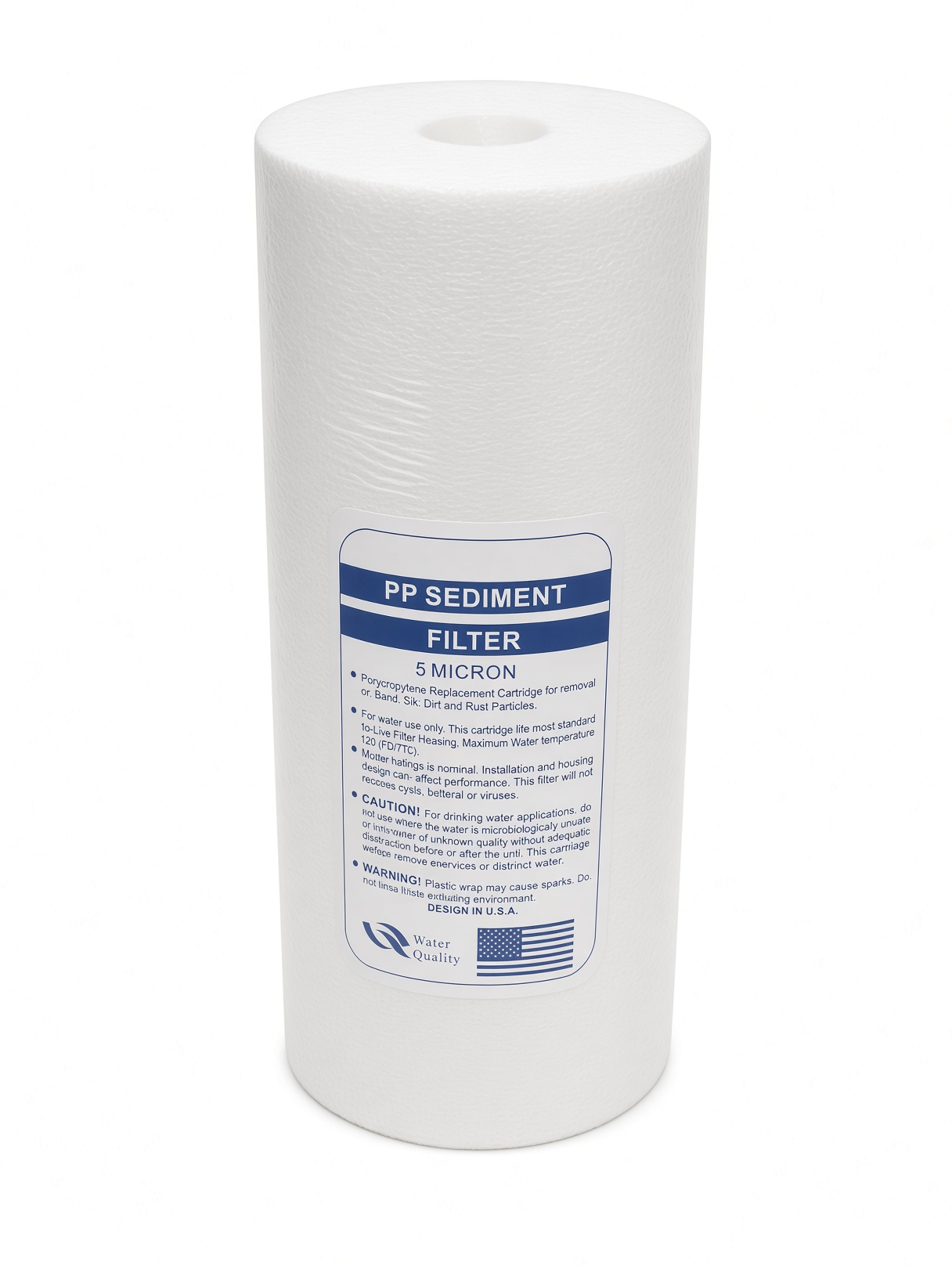

10" monoblock polymer filter cartridge designed for the removal of particles and suspended solids from water. The cartridge is made from compact polymer material and is well suited as a pre-filtration stage in water treatment systems where sediment, sand, rust particles and other solid contaminants need to be reduced.

The filter has a nominal filtration rating of 5 micron and is suitable for use in standard 10" Big Blue-compatible filter housings. The robust monoblock construction provides good mechanical stability and consistent filtration throughout the filter body.

The product can be used as a first filtration stage before activated carbon filters, UV disinfection, membrane filtration or other water treatment equipment where downstream components need protection from particulate matter.

Features:

• 10" filter cartridge for Big Blue-compatible filter housings
• Monoblock polymer construction
• Nominal filtration rating: 5 micron
• Reduces sand, rust, sediment and suspended particles
• Suitable as pre-filtration in water treatment systems
• Helps protect downstream filters and technical components

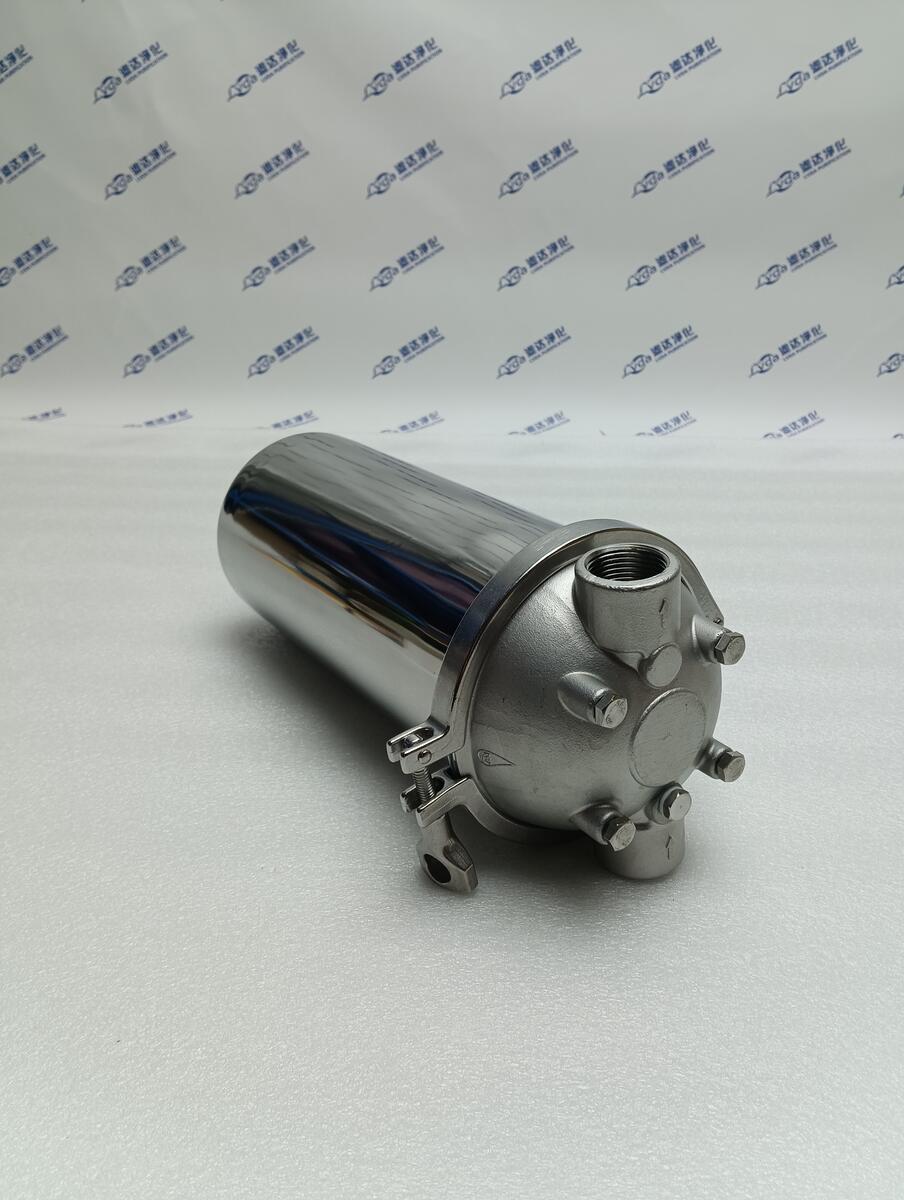

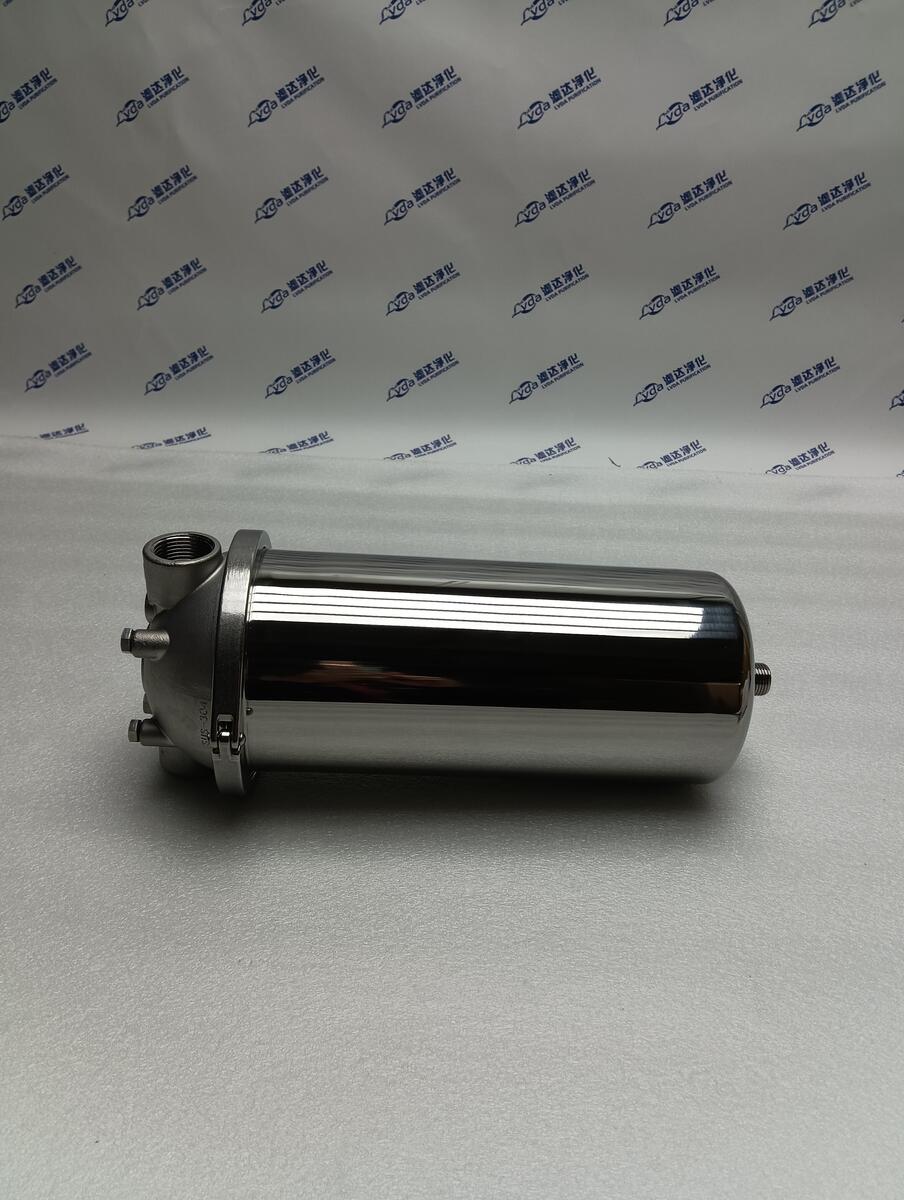

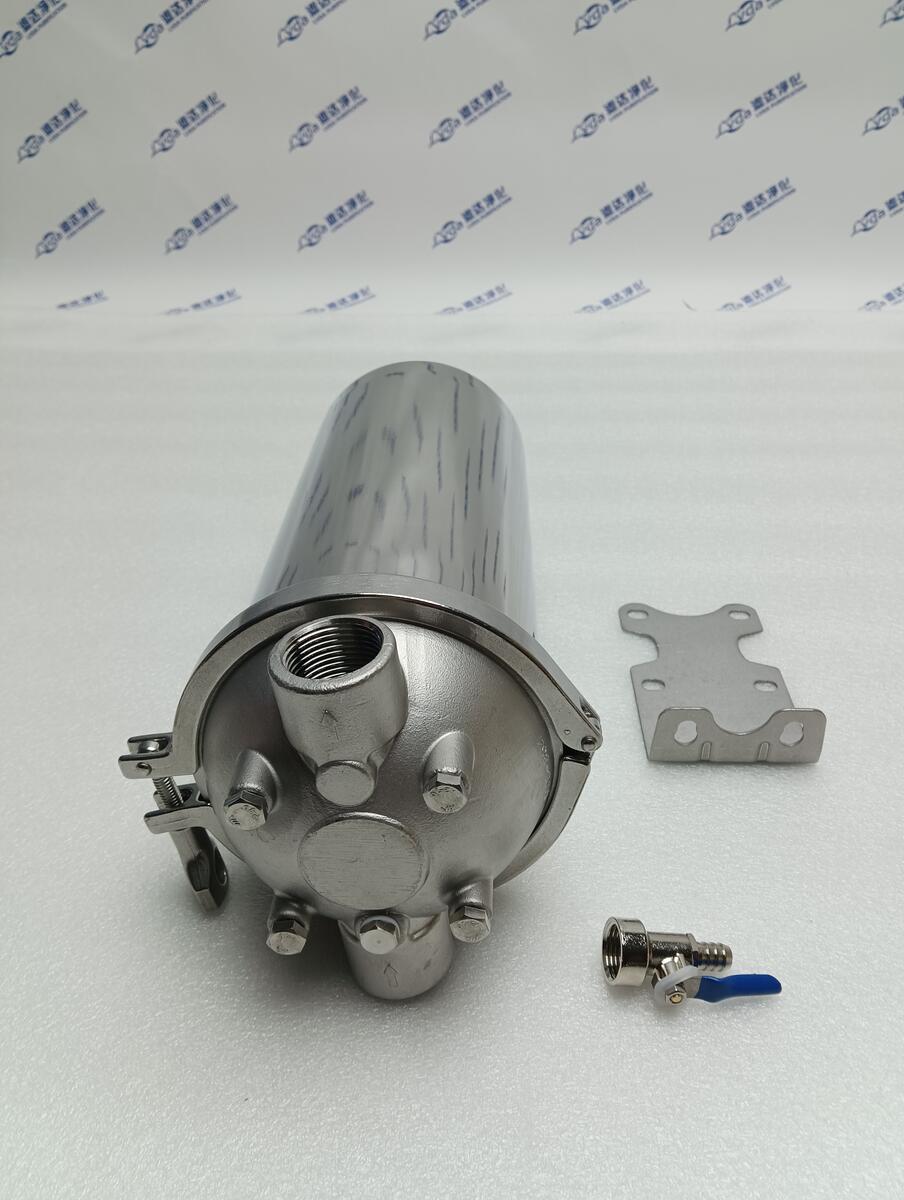

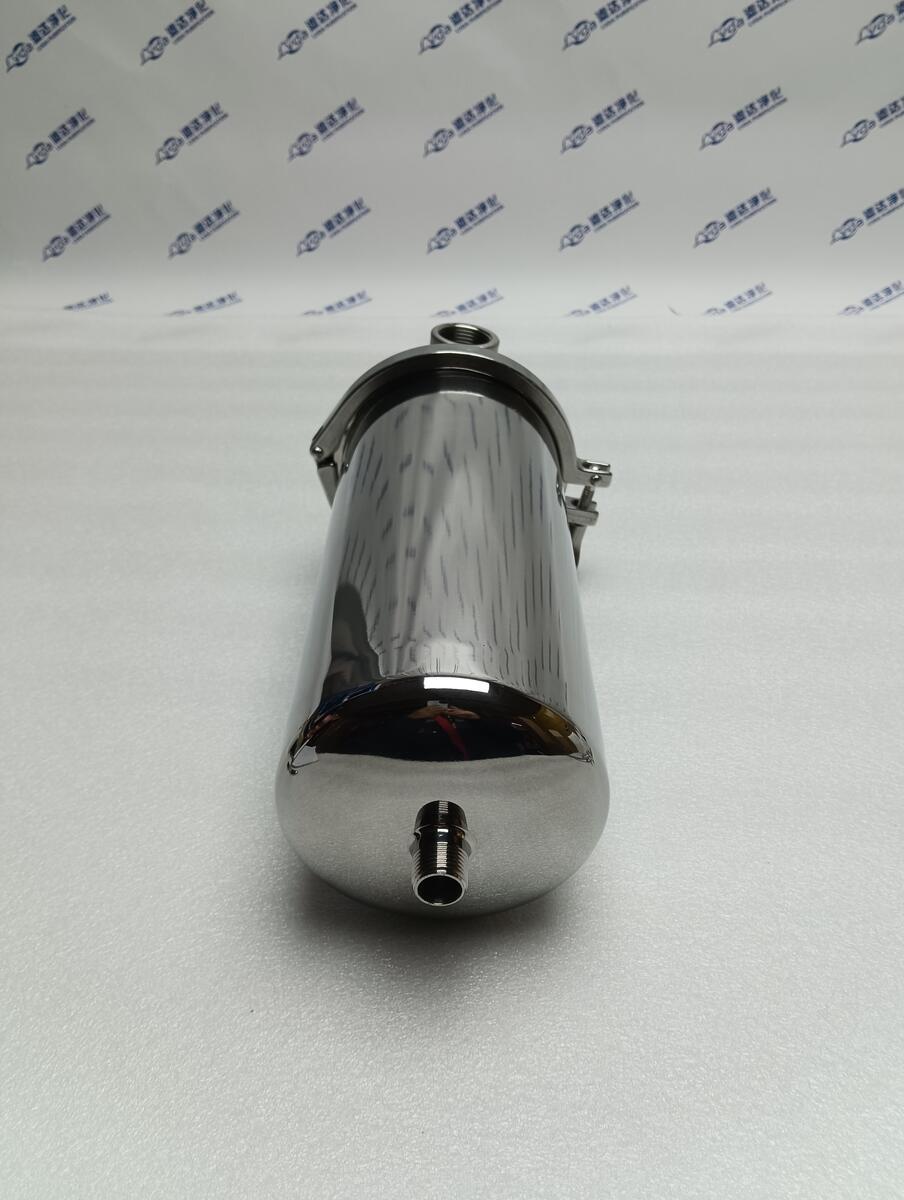

High-quality stainless steel filter housing designed for 10-inch filter cartridges. The robust construction provides excellent durability, corrosion resistance and long service life in demanding operating environments.

Suitable for water treatment systems, process water applications, food and beverage production, laboratories and industrial filtration processes where reliable filtration performance is required.

The housing features a stainless steel body, secure clamp closure and a compact design that allows easy installation and maintenance. Filter cartridges can be replaced quickly, minimizing downtime and simplifying routine servicing.

Important: Compatibility depends on the dimensions and end-cap design of the filter cartridge. Not all 10-inch cartridges are compatible with all filter housings. Please verify cartridge dimensions before installation.

Features:

• Stainless steel construction
• Designed for 10" filter cartridges
• Corrosion-resistant design
• Quick access for cartridge replacement
• Suitable for water treatment and process filtration
• Wall mounting bracket included
• Compact industrial design

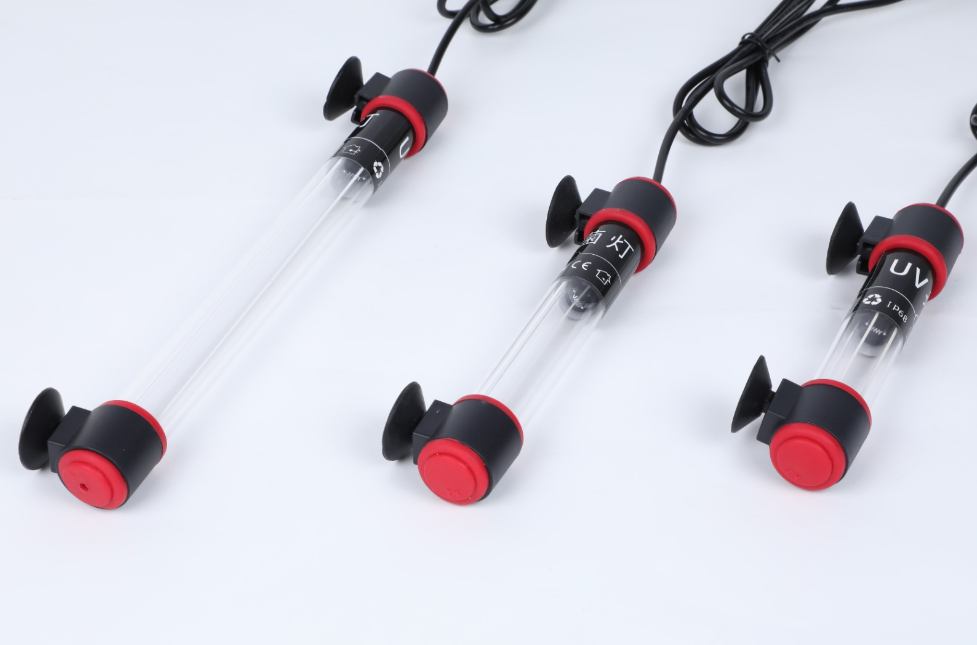

Powerful 15W UV-C sterilizer designed for submerged installation in aquariums, ponds, and recirculating water systems. UV-C treatment helps reduce microorganisms and supports improved water quality.

The lamp is protected by a high-purity quartz glass sleeve that provides excellent UV transmission and long-term durability. A matched external power supply ensures reliable operation and extended lamp life.

An integrated timer allows operation for 15, 30, or 60 minutes, providing flexible control for routine water treatment and maintenance.

• 15W UV-C lamp
• Fully submersible design
• High-purity quartz glass construction
• Integrated timer: 15 / 30 / 60 minutes
• 150 cm power cable
• Rated lifetime: approximately 13,000 hours
• Suitable for water treatment volumes up to 5 m³
• Lamp length: 272 mm
• Lamp diameter: 23 mm

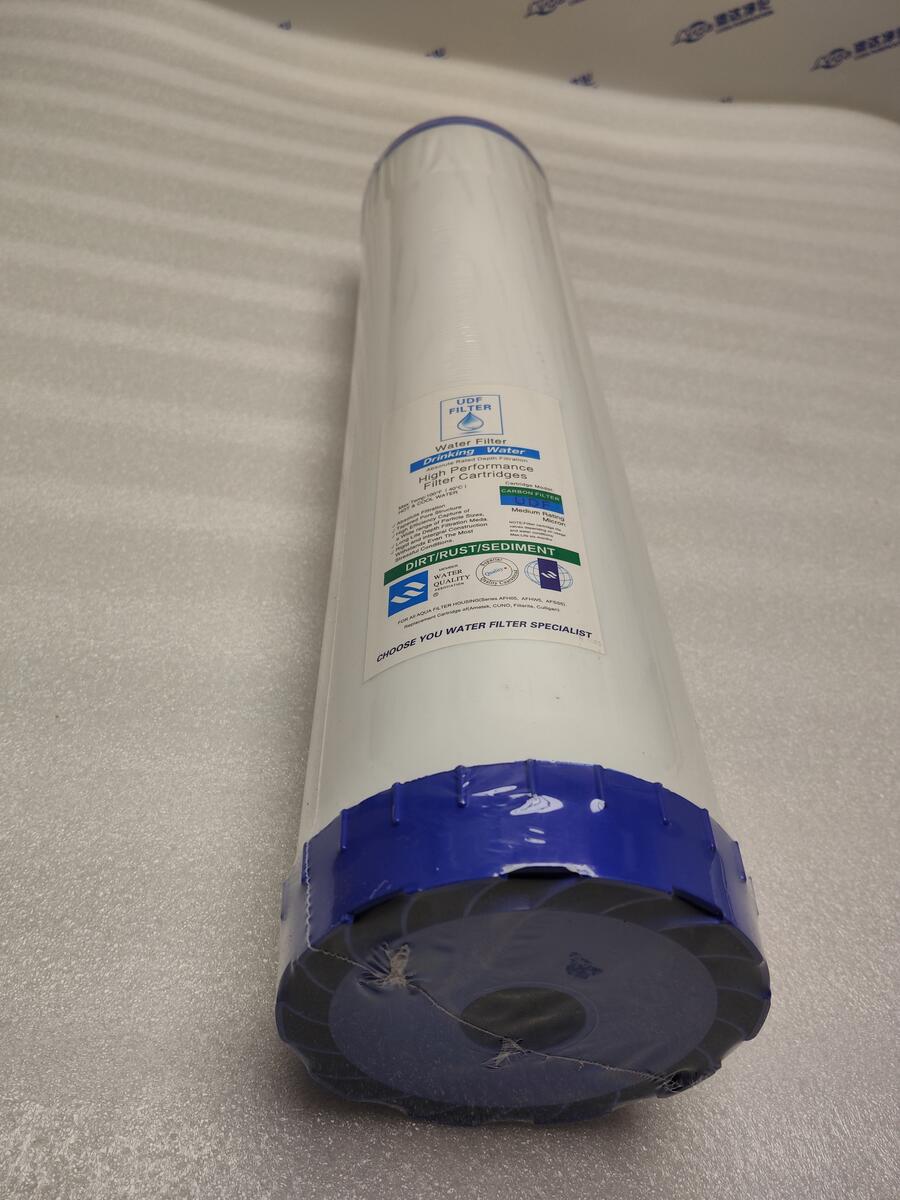

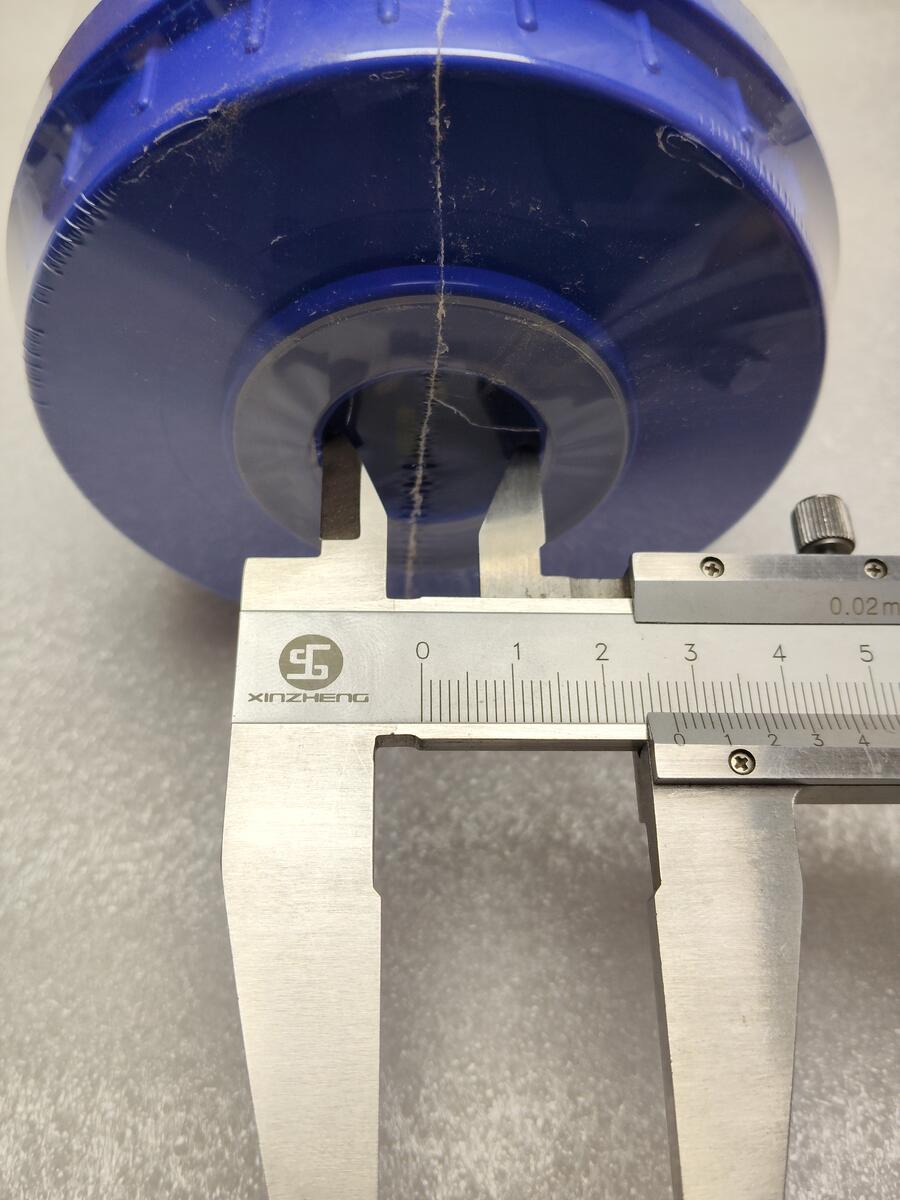

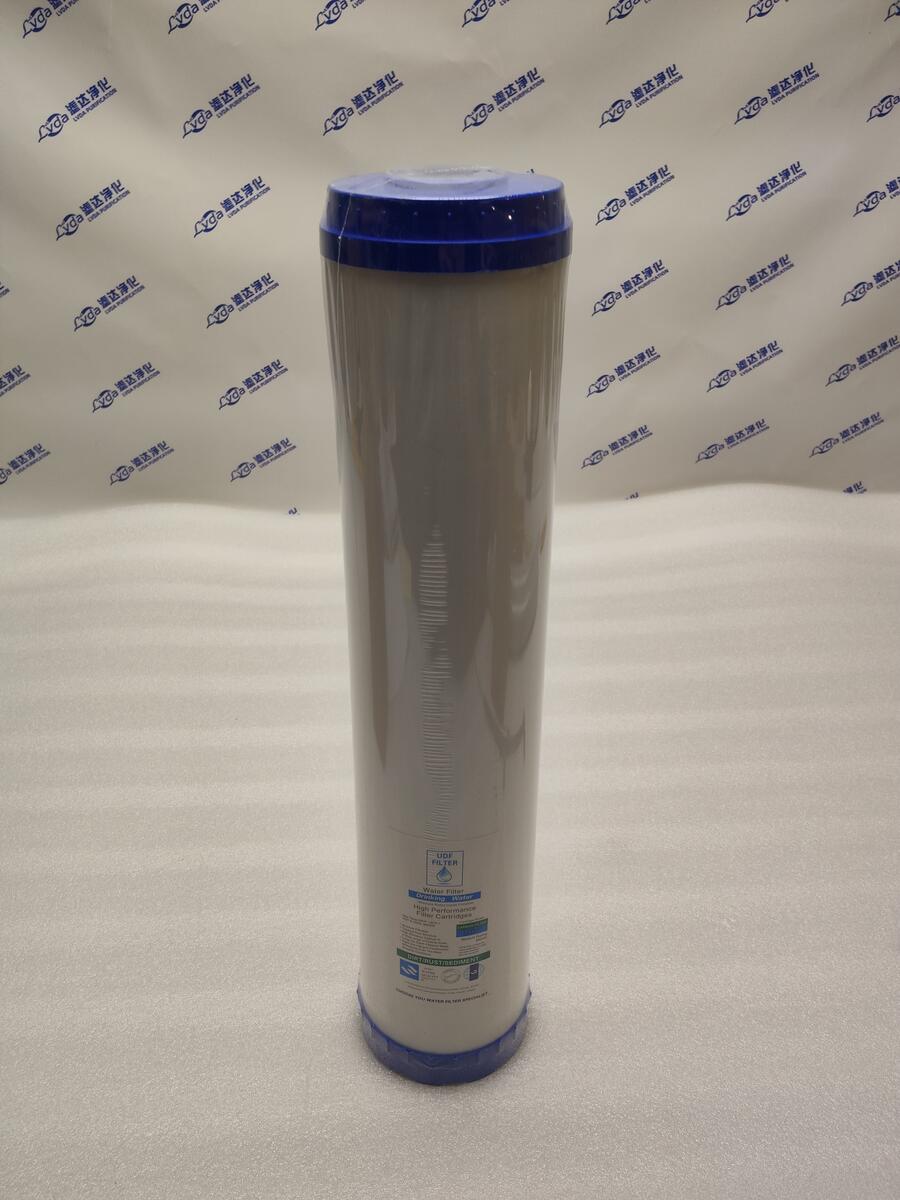

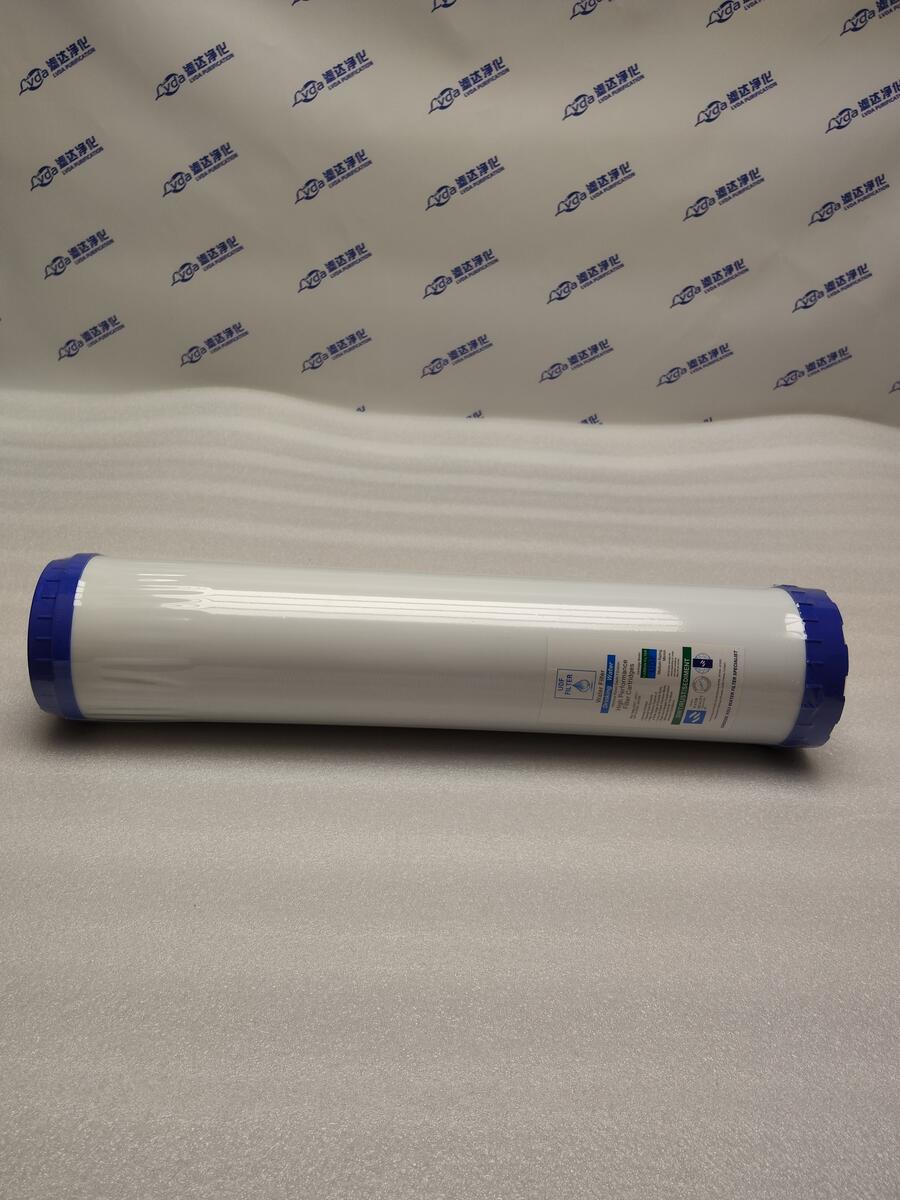

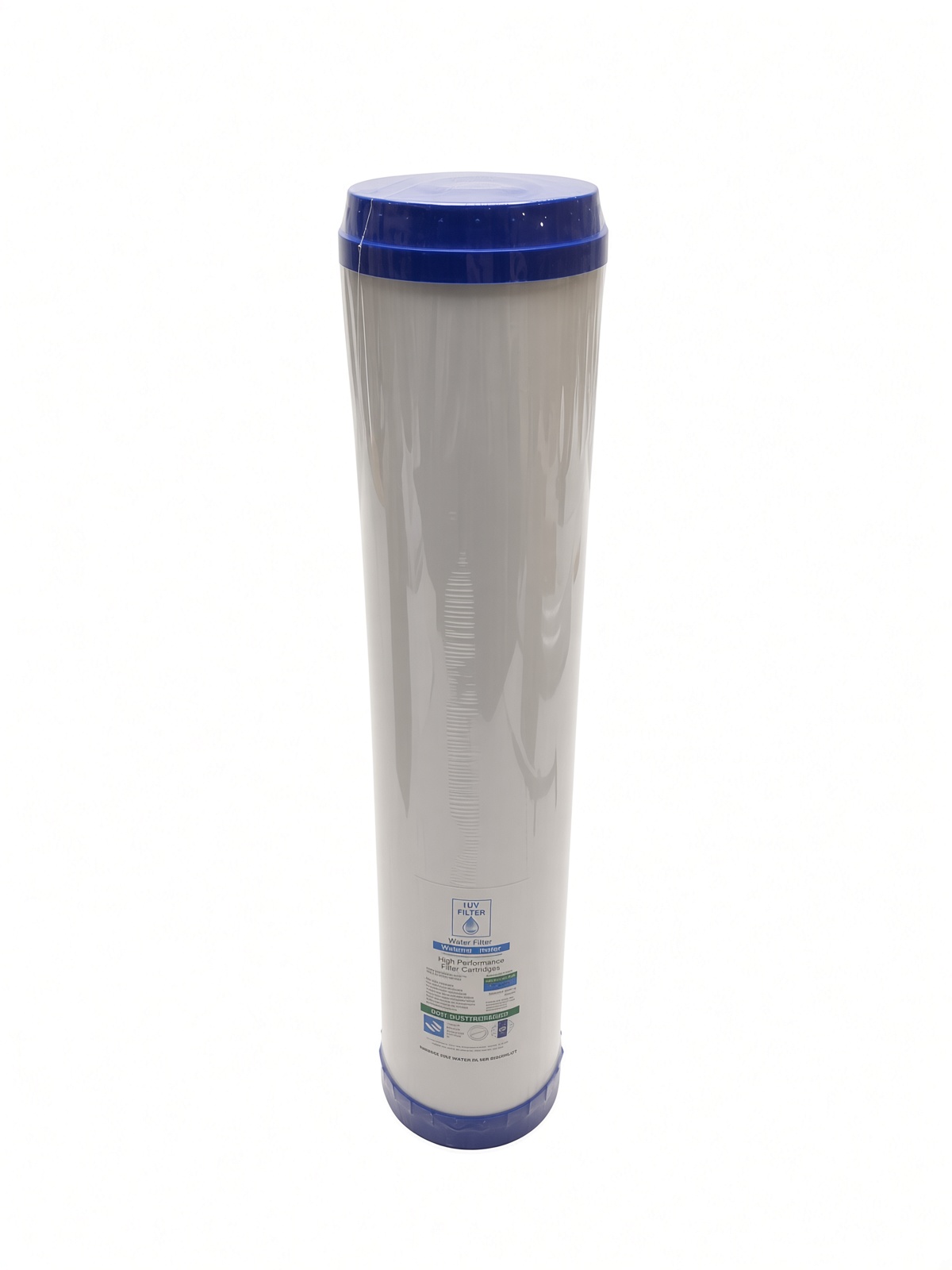

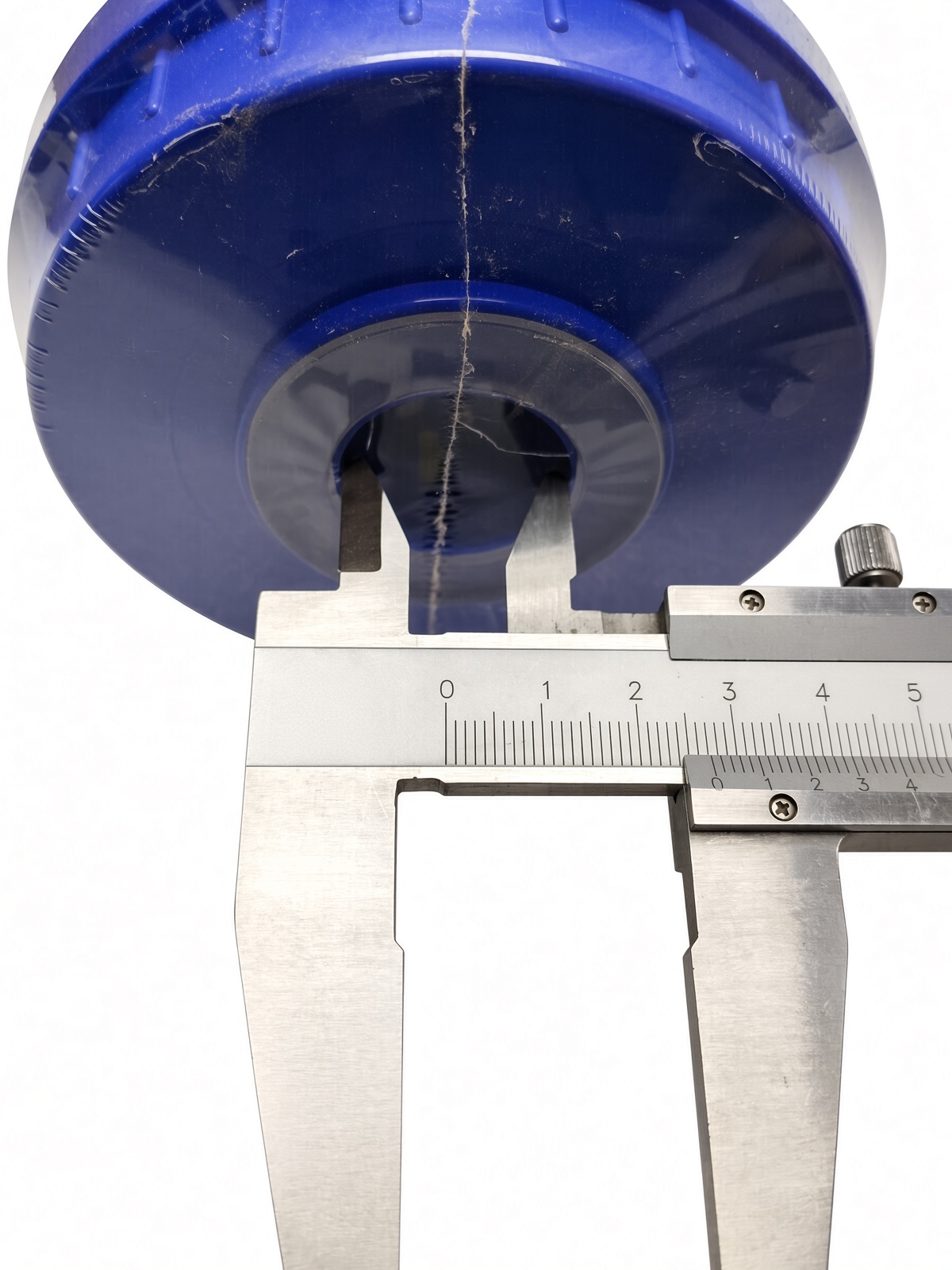

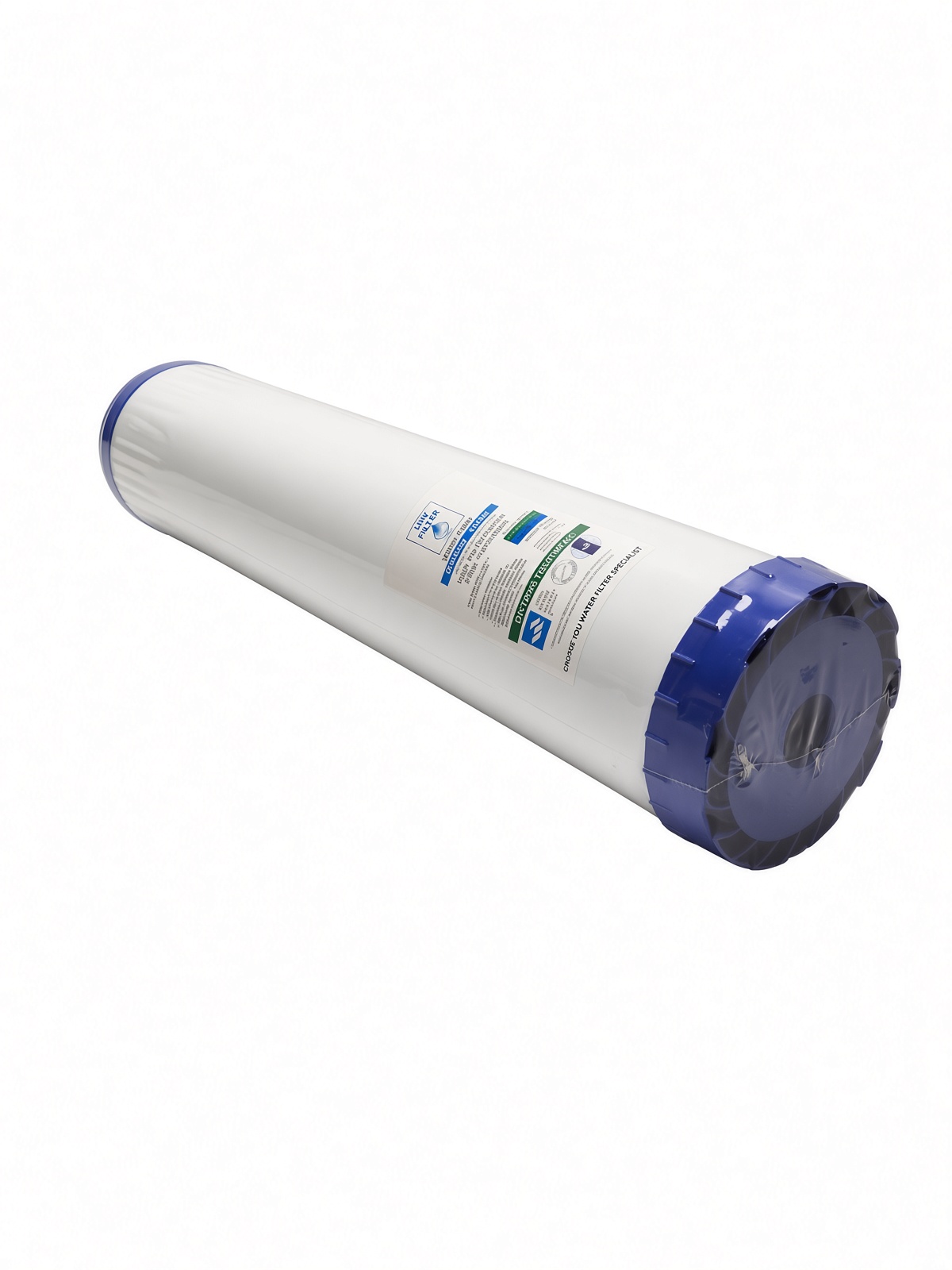

20" Big Blue filter cartridge filled with granular activated carbon (GAC) for effective water quality improvement. The filter reduces chlorine, odours, unwanted taste and a wide range of organic compounds. Suitable for domestic water treatment, well water, process water, rainwater systems and pre-treatment stages in water treatment plants. Features: - Standard 20" Big Blue format - Granular activated carbon (GAC) media - Reduces chlorine, odours and unwanted taste - Improves overall water quality - Compatible with standard 20" Big Blue housings - Easy replacement cartridge for routine maintenance

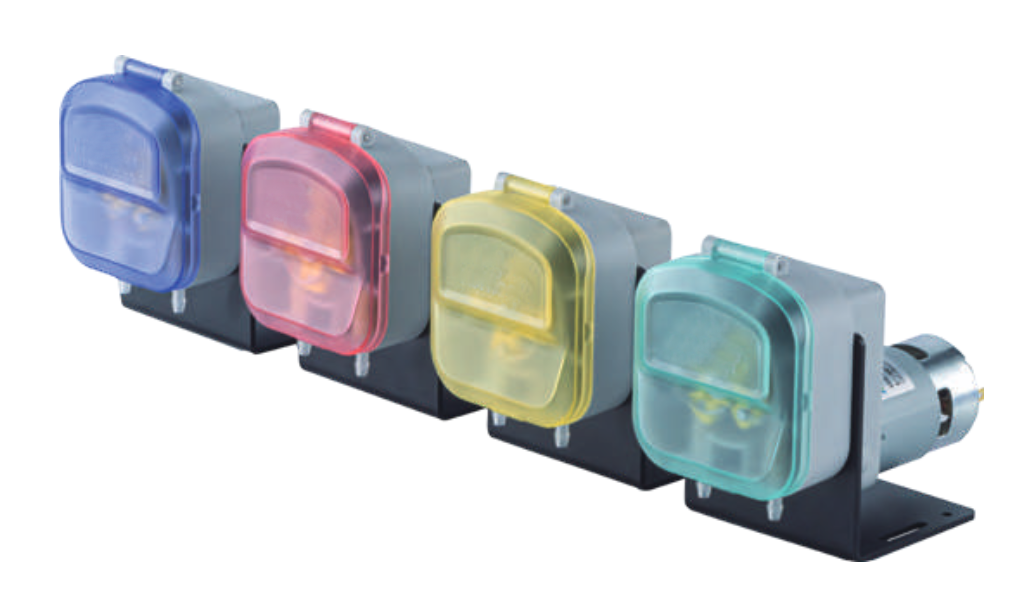

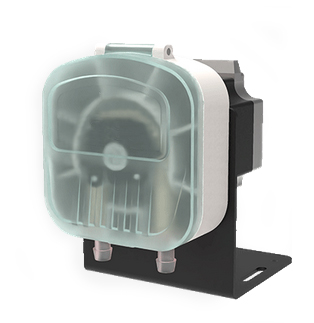

Industrial-grade 24V peristaltic dosing pump designed for reliable and contamination-free liquid transfer. The peristaltic design ensures that only the tubing comes into contact with the fluid, reducing contamination risks and simplifying maintenance. Suitable for water treatment systems, chemical dosing, laboratory equipment, environmental monitoring, process automation, and OEM integration. The 24V DC motor provides dependable operation and easy integration into industrial control systems, PLCs, and automated equipment.

• 24V DC operation
• Peristaltic pumping technology
• Contamination-free fluid handling
• Suitable for water and chemical dosing
• Replaceable pump tubing
• Low maintenance design
• Reliable continuous operation
• Suitable for industrial and laboratory applications

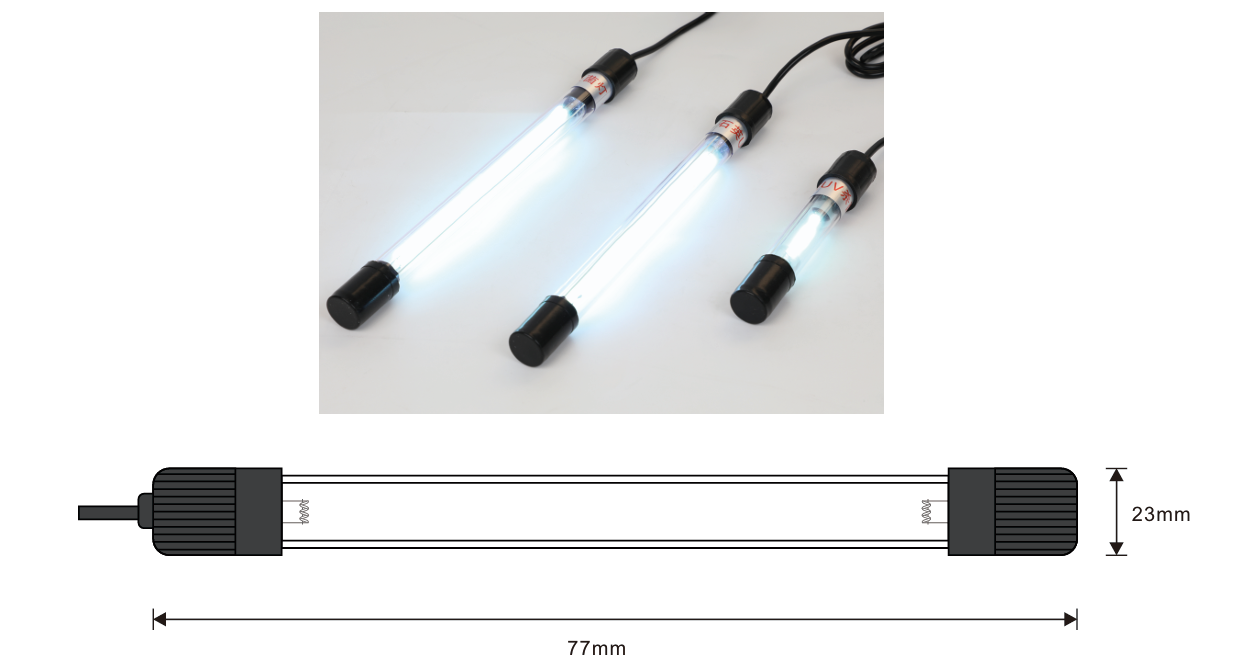

Compact fully submersible 3W UV-C sterilizer designed to reduce microorganisms and improve water quality in aquariums, small ponds, and recirculating water systems.

The UV lamp is housed within a waterproof quartz glass sleeve, providing high UV transmittance and reliable long-term operation. The external power supply is matched to the lamp to maximize efficiency and service life.

An integrated timer function allows operation for 15, 30, or 60 minutes, making the unit easy to use in automated water treatment applications.

• 3W UV-C lamp
• Fully submersible design
• High-purity quartz glass construction
• Integrated timer: 15 / 30 / 60 minutes
• 150 cm power cable
• Rated lifetime: approximately 13,000 hours
• Suitable for aquariums and small ponds
• Compact size: 77 mm × 23 mm

4-way cross tube connector for 1/16 inch tubing (1.5 mm) made from transparent plastic for fluid and gas distribution applications.

The fitting connects four tubing lines and is commonly used in laboratory equipment, ozone generators, dosing systems, instrumentation, water treatment applications, and other low-flow systems.

• For 1/16" tubing (≈ 1.5 mm)
• 4-way cross connector design
• Transparent plastic construction
• Compact and lightweight
• Easy installation
• Suitable for air, gas, and liquid applications

Ideal for laboratories, pilot plants, ozone systems, aquarium equipment, and small-scale process installations.

Inline ball valve for 6 mm tubing with push-fit connections on both sides for quick and tool-free installation.

The valve provides manual shut-off control for water treatment systems, RO systems, laboratory equipment, dosing systems, and other low-pressure applications. Its compact design makes it ideal for installations with limited space.

• For 6 mm tubing (≈ 1/4")
• Straight-through flow design
• Push-fit connections on both sides
• Manual ball valve with clear open/closed positions
• Compact and lightweight construction
• Suitable for water, RO systems, and process fluids

Commonly used in drinking water systems, reverse osmosis (RO) installations, water filtration units, laboratory equipment, and small process systems.

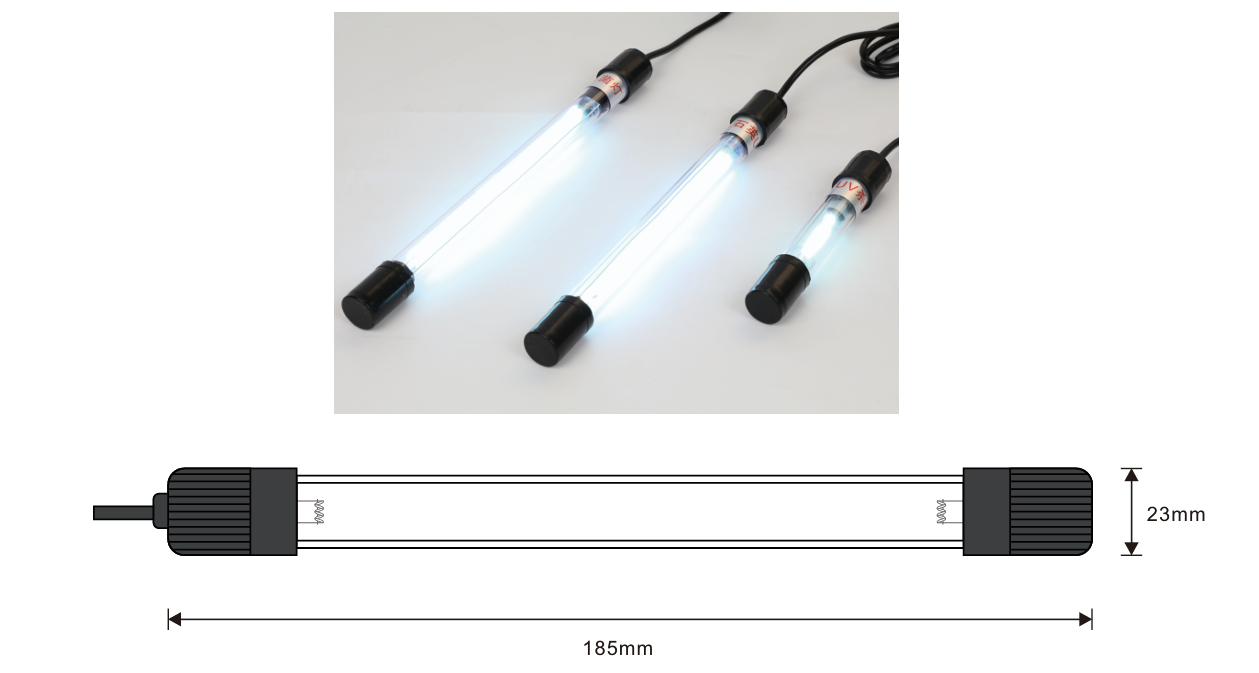

Compact 7W UV-C sterilizer designed for submerged installation in aquariums, small ponds, and recirculating water systems.

The lamp is enclosed in a high-purity quartz glass housing to maximize UV transmission while providing reliable waterproof operation. The matched external power supply helps ensure efficient performance and long service life.

An integrated timer allows operation for 15, 30, or 60 minutes, making the unit suitable for routine water quality management and automated treatment schedules.

• 7W UV-C lamp
• Fully submersible design
• High-purity quartz glass construction
• Integrated timer: 15 / 30 / 60 minutes
• 150 cm power cable
• Rated lifetime: approximately 13,000 hours
• Suitable for treatment volumes up to 0.5 m³
• Lamp length: 185 mm
• Lamp diameter: 23 mm

90° elbow connector for 6 mm tubing with male threaded connection and integrated push-fit fitting.

This fitting connects 6 mm tubing (approximately 1/4 inch) to a threaded component while changing flow direction by 90 degrees. The push-fit design allows quick installation without special tools.

• For 6 mm outside diameter tubing
• Equivalent to approximately 1/4" tubing
• 90° elbow design
• Male threaded connection
• Push-fit tube connection
• Corrosion-resistant plastic construction
• Suitable for water treatment, RO systems, laboratory equipment, dosing systems, and process applications

Commonly used in reverse osmosis (RO) systems, water filtration equipment, drinking water systems, instrumentation, and other low-pressure fluid applications.

90° Push-Fit Bulkhead Elbow Connector is a compact panel-mount fitting designed for 6 mm tubing installations through panels, cabinets, enclosures and equipment housings.

The connector features push-fit tube connections for quick installation without tools and an integrated mounting thread for secure panel mounting. The 90-degree design allows neat tubing routing while minimizing bend radius requirements.

Technical Specifications

• Type: 90° bulkhead elbow connector
• Connection: Push-Fit
• Tube size: 6 mm OD
• Configuration: Push-Fit × Push-Fit
• Mounting: Integrated panel-mount thread
• Material: Engineering plastic
• Colour: White with blue locking collet
• Tool-free tube installation
• Suitable for water, air and compatible process fluids

Typical Applications

• Reverse Osmosis (RO) systems
• Water treatment equipment
• Drinking water systems
• Instrumentation
• Control cabinets and enclosures
• Dosing equipment
• Laboratory systems
• Ozone and air systems

AgroOzone™ – Ozone Water Treatment for Agriculture

AgroOzone™ is a professional ozone water treatment system designed for modern greenhouses, irrigation systems and agricultural operations. Using advanced ozone technology, the system treats irrigation water without chemical additives and helps growers create a cleaner and more sustainable growing environment. Vegetables, flowers, fruits and specialty crops can all benefit from improved water quality throughout the growing cycle.

By introducing ozone directly into the water stream, the system can be integrated into greenhouse irrigation systems, hydroponic installations, tunnel farming operations and traditional agricultural applications. After treatment, ozone naturally decomposes back into oxygen, leaving no chemical residues behind.

AgroOzone™ is particularly suitable for growers seeking to reduce reliance on chemical treatment methods while improving overall water management. The system can be used in both small commercial farms and large greenhouse facilities where water quality is critical for productivity, crop quality and operational reliability.

Typical Applications

• Greenhouse cultivation
• Hydroponic growing systems
• Vegetable irrigation
• Fruit and berry production
• Flower cultivation and nurseries
• Herb and specialty crop production
• Commercial farms and agricultural facilities

Key Benefits

• Ozone-based water treatment without chemical additives
• Suitable for irrigation and cultivation systems
• Can be integrated into existing water infrastructure
• Supports improved water quality
• Promotes sustainable growing practices
• Simple installation and operation
• Low operating costs
• Suitable for both small and large agricultural operations

Designed for Sustainable Agriculture

Access to clean and properly treated irrigation water is essential for successful crop production. AgroOzone™ provides a modern solution that allows water treatment directly at the point of use. The result is a flexible system that helps growers improve water management while supporting more efficient and sustainable operations.

Whether used in a commercial greenhouse, hydroponic facility or agricultural operation, AgroOzone™ delivers a practical and professional approach to modern irrigation water treatment and crop production support.

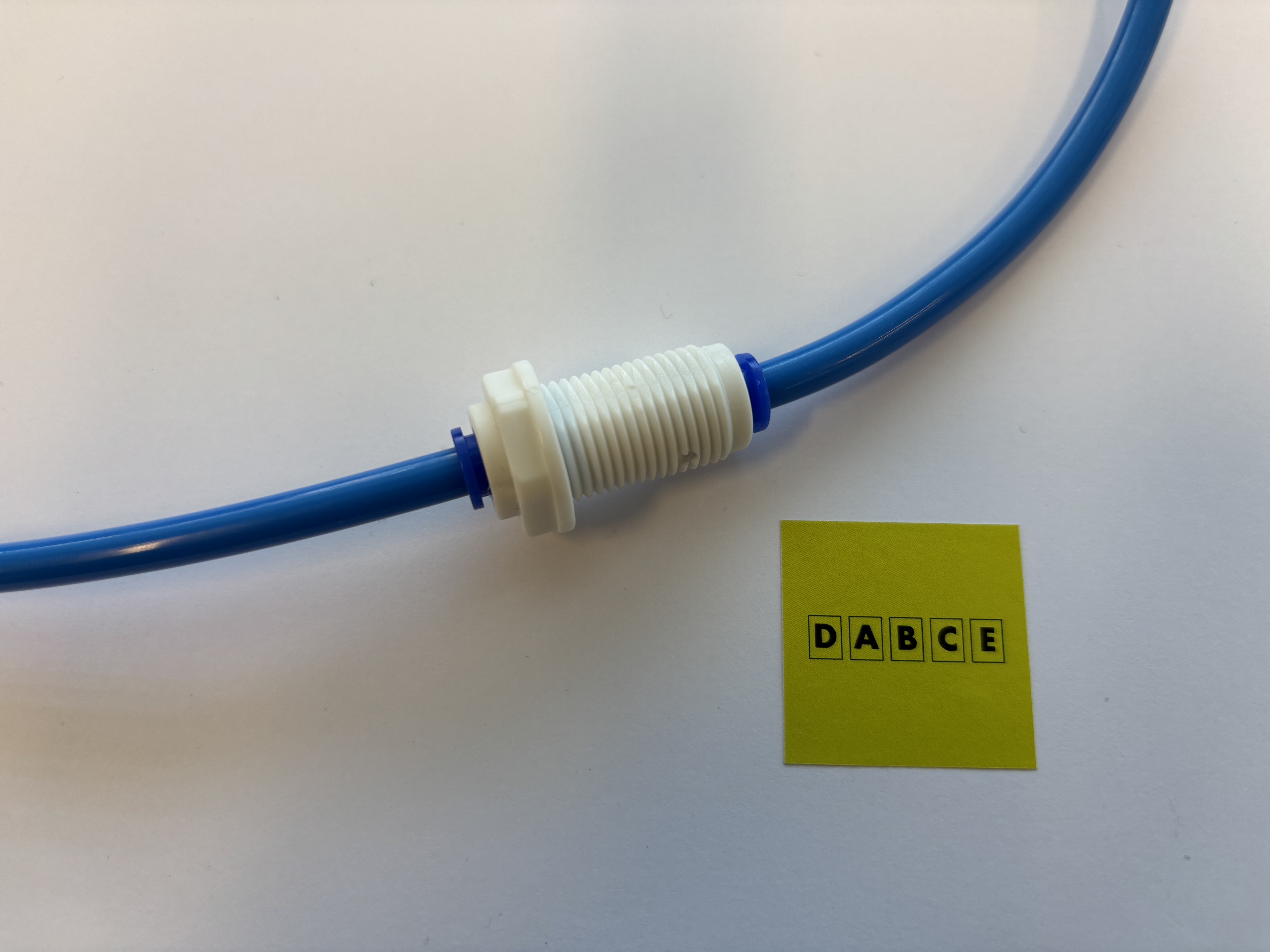

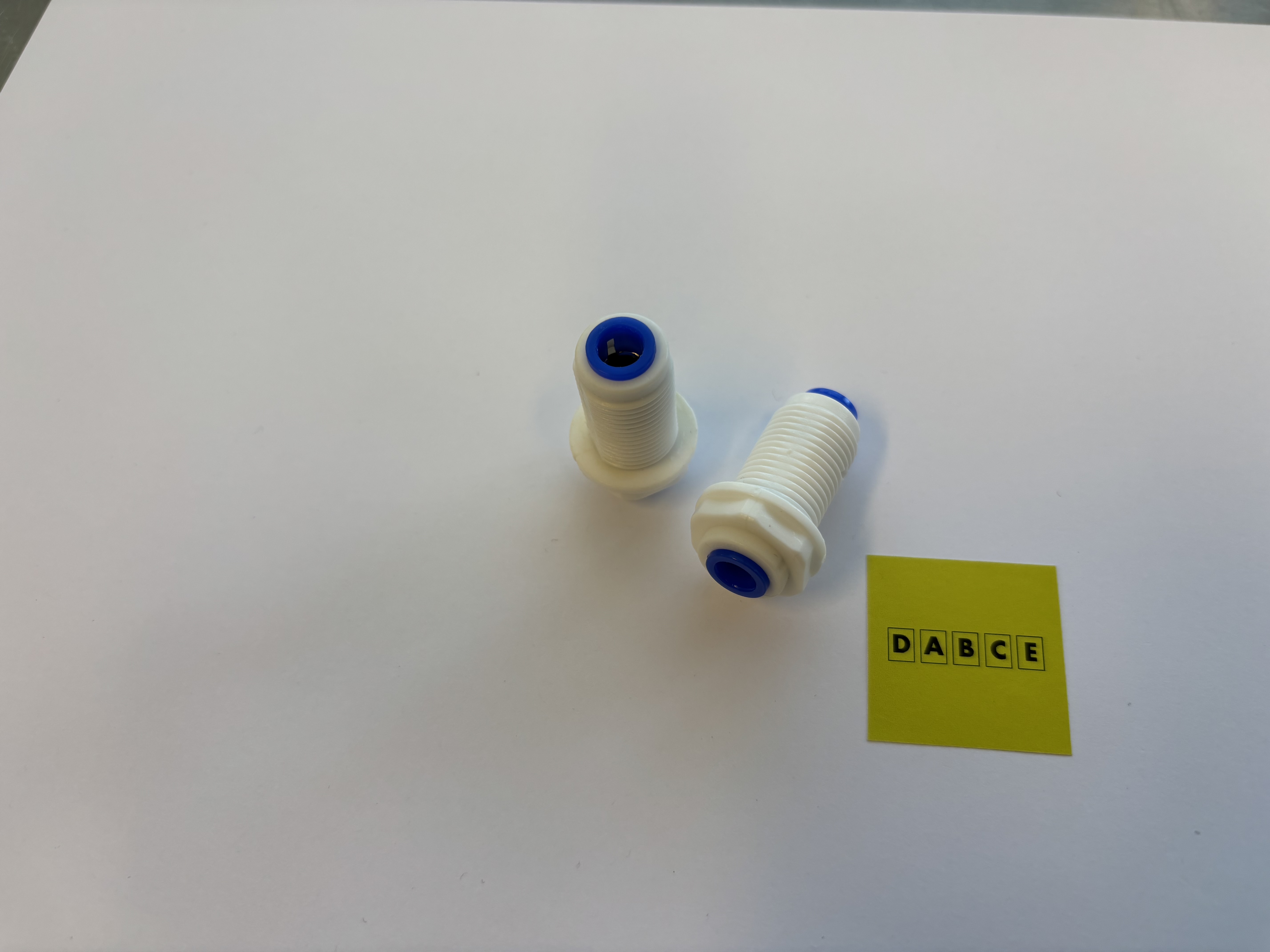

Robust bulkhead fitting with integrated push-fit connector for 1/4" tubing used in water treatment systems, dosing equipment, RO systems, ozone systems, and other fluid handling applications.

The fitting is installed through tank walls, enclosures, or panels, providing a secure pass-through while allowing tubing to be connected and disconnected quickly without special tools.

The compact design makes the product suitable for professional installations as well as smaller systems used in water treatment, laboratories, agriculture, aquaculture, and off-grid applications.

• Bulkhead fitting with integrated push-fit connector
• Suitable for 1/4" tubing
• Tool-free tube installation
• Compact and robust design
• Suitable for water and process liquids
• Compatible with RO, UV, and ozone systems
• Suitable for tanks, enclosures, and panel mounting
• Easy maintenance and servicing

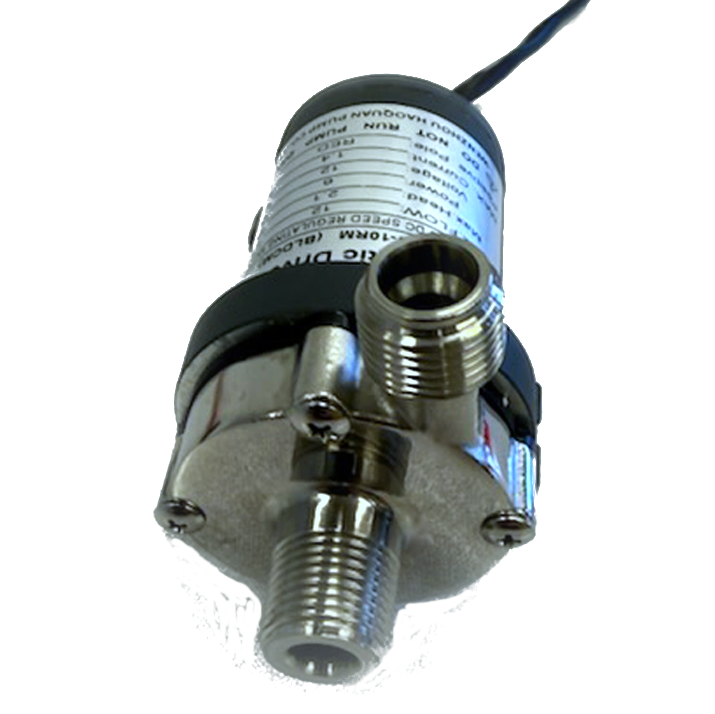

It is made of stainless steel, features a magnetic drive, and is designed for high‑temperature operation. Typical applications include liquid circulation in water production, food processing, breweries, and dairy operations.

The DABCE Dual 10" Water Filter Kit is a complete two-stage filtration solution designed to improve water quality and protect downstream equipment. The package includes two 10" filter housings, one 5-micron sediment filter cartridge, and one GAC activated carbon filter cartridge.

In the first stage, the 5-micron sediment filter removes sand, rust, sediment and suspended particles from the water. In the second stage, the GAC activated carbon filter reduces chlorine, unwanted taste, odour and a range of organic contaminants.

The system is suitable for municipal water, well water, rainwater harvesting systems and general water treatment applications where reliable pre-filtration and water polishing are required.

Package Contents:

• 2 × 10" filter housings
• 1 × 5-micron sediment filter cartridge
• 1 × GAC activated carbon filter cartridge
• Mounting accessories and filter wrench (where applicable)

Benefits:

• Two-stage water filtration
• Removes sediment, sand and rust particles
• Reduces chlorine, odours and unwanted taste
• Helps protect downstream equipment
• Compatible with standard 10" filter cartridges
• Easy maintenance and cartridge replacement

DABCE Ozone Pool 100 delivers effective ozone treatment for pools and smaller bathing water systems. Ozone improves water quality, reduces the need for added chemicals and helps keep bath water clearer and fresher.

The system is compact, reliable and suited to installations where a stable ozone output around 100 g/h is sufficient. Guidance: typically suitable for pools in the region of approx. 50–150 m³, depending on turnover time, bather load and target dose. Final sizing is always based on flow and water quality.

• Improved water quality and clearer bath water
• Supports reduced use of added chemicals
• Compact solution for private and smaller commercial pools
• Nominal capacity 100 g/h (Sankang SK-CFG-100C)
• Technical support and sizing from DABCE

Advantages of negative-pressure ozone generators

Negative-pressure ozone generators offer high safety, quiet operation, long service life, minimal maintenance and simple handling. They are particularly suited to areas with high foot traffic or confined spaces, where the risk of major incidents due to gas leakage is minimised.

The equipment operates by drawing airflow through the negative pressure created by a booster pump/ejector. If vacuum pressure is lost, the system shuts down automatically. This avoids ozone injection leakage.

Unsure about sizing? Use our ozone configurator or contact us for a preliminary recommendation.

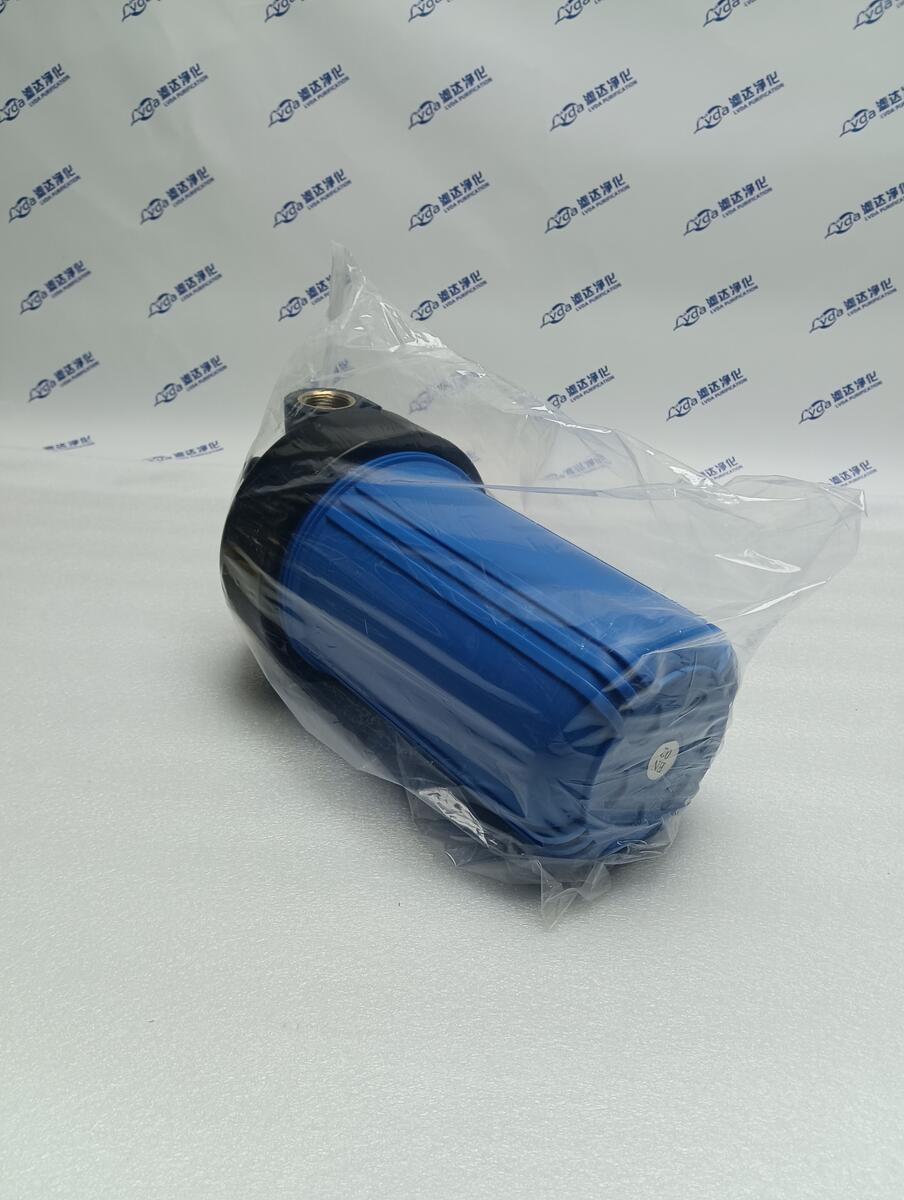

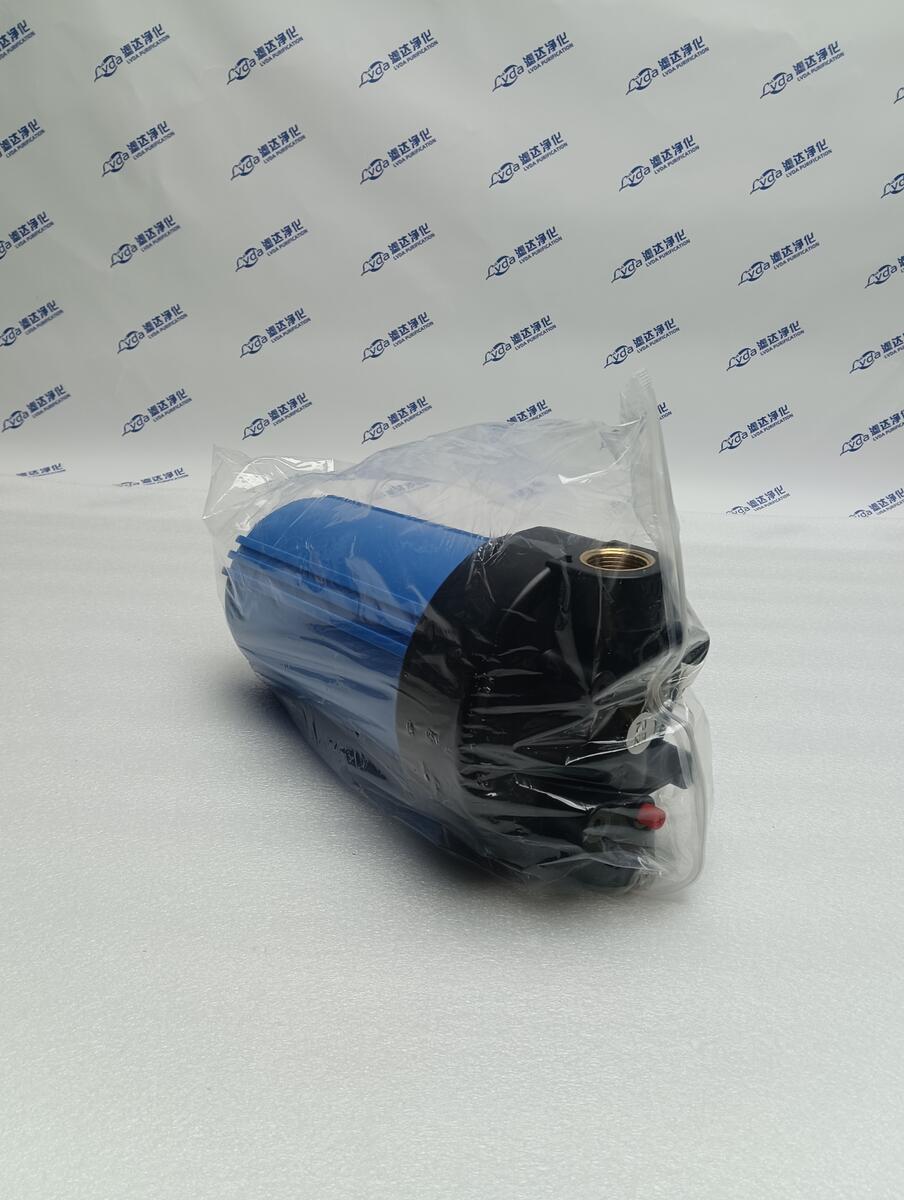

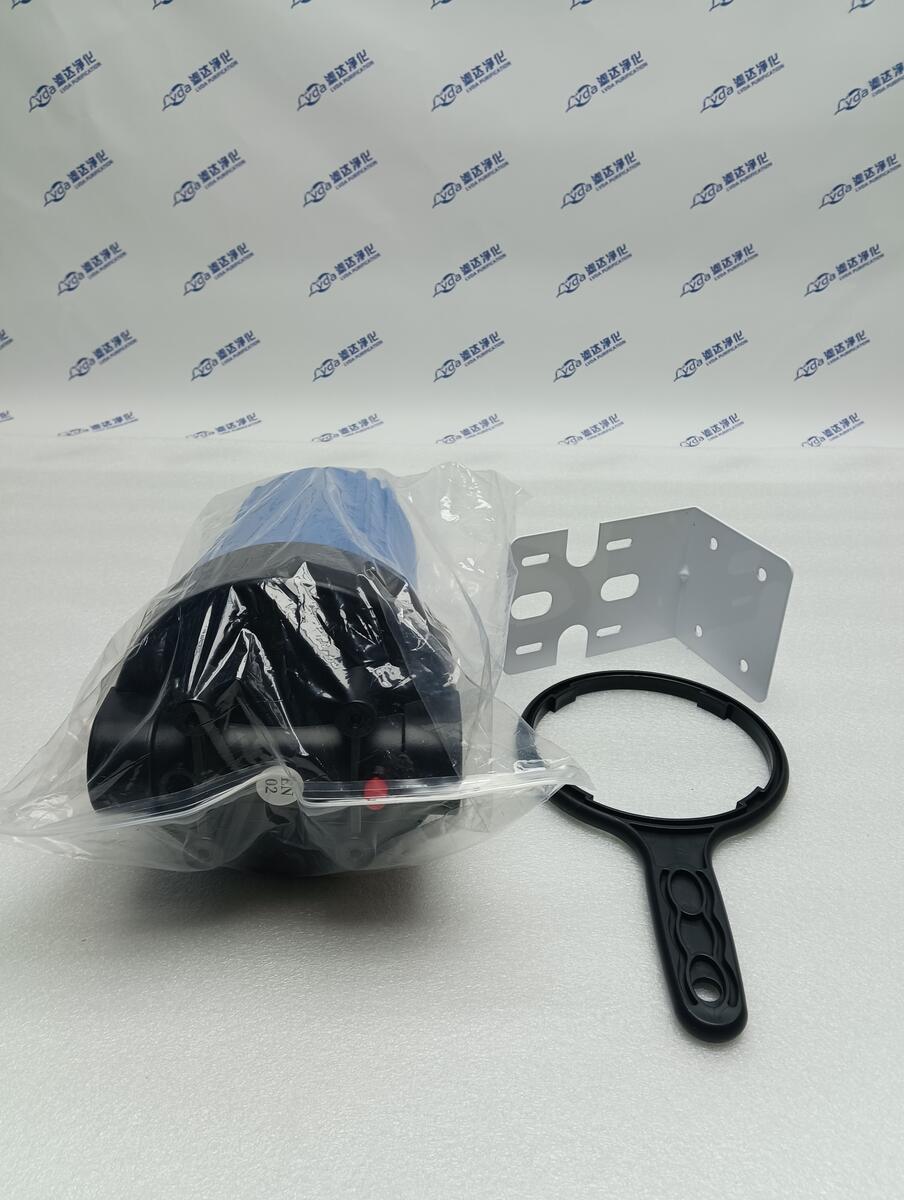

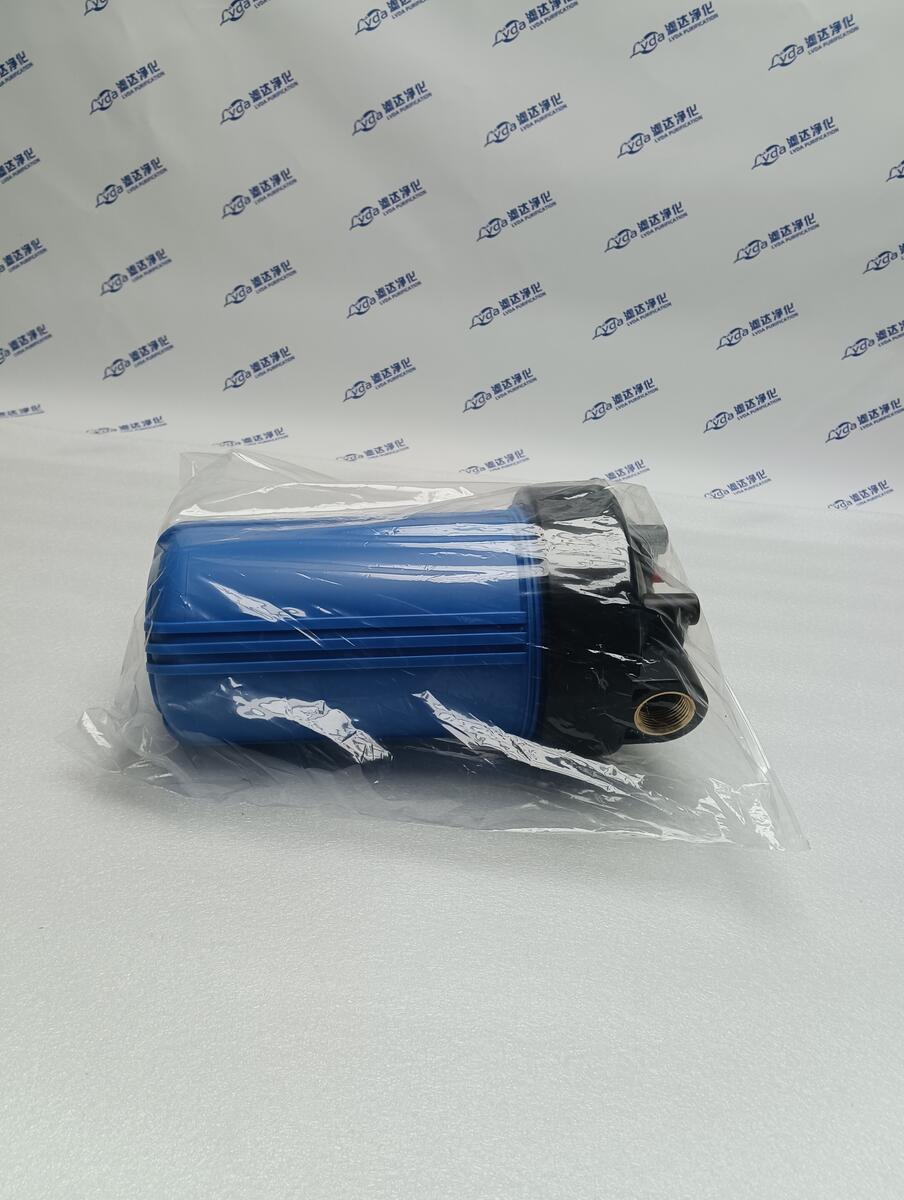

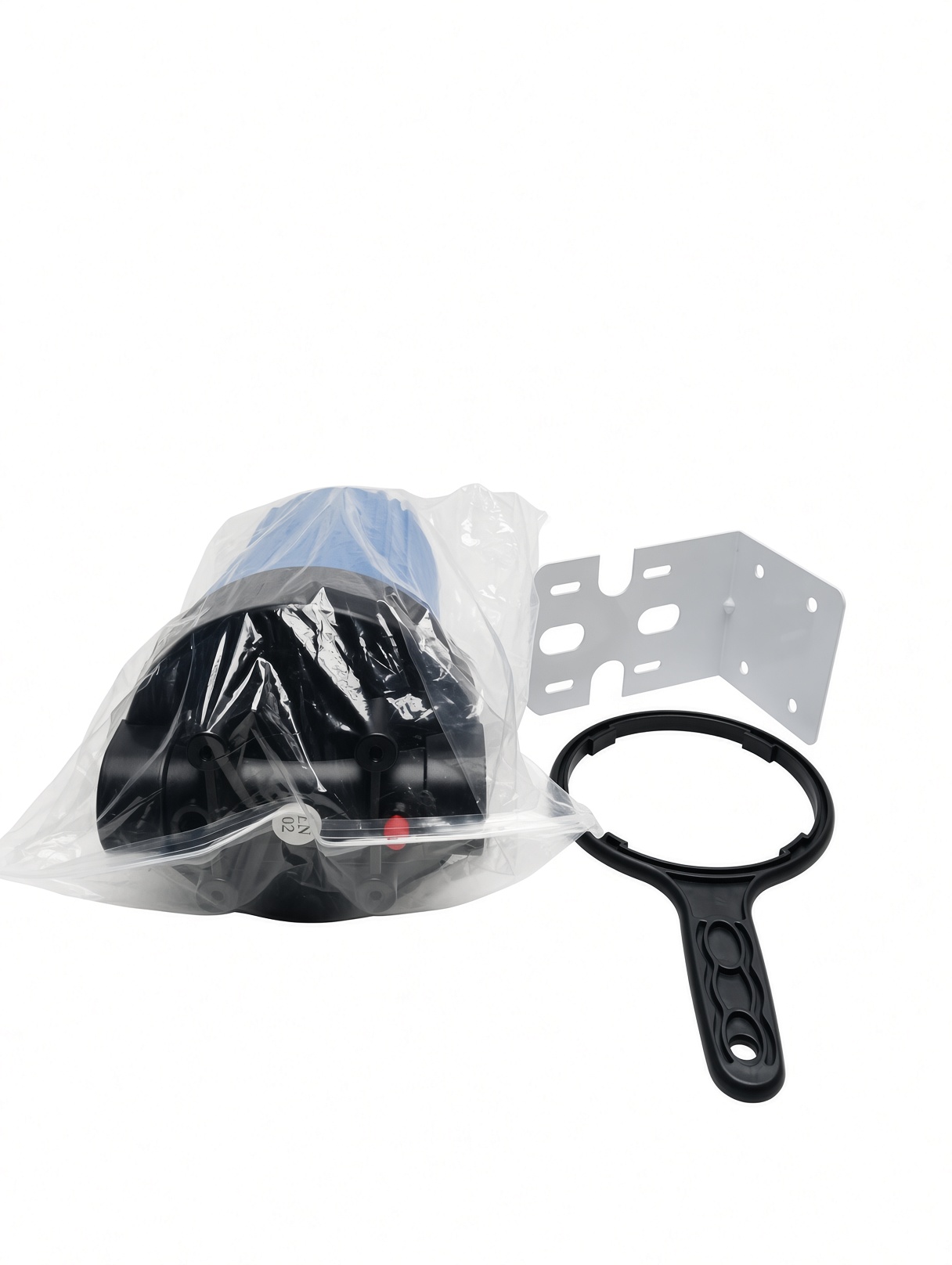

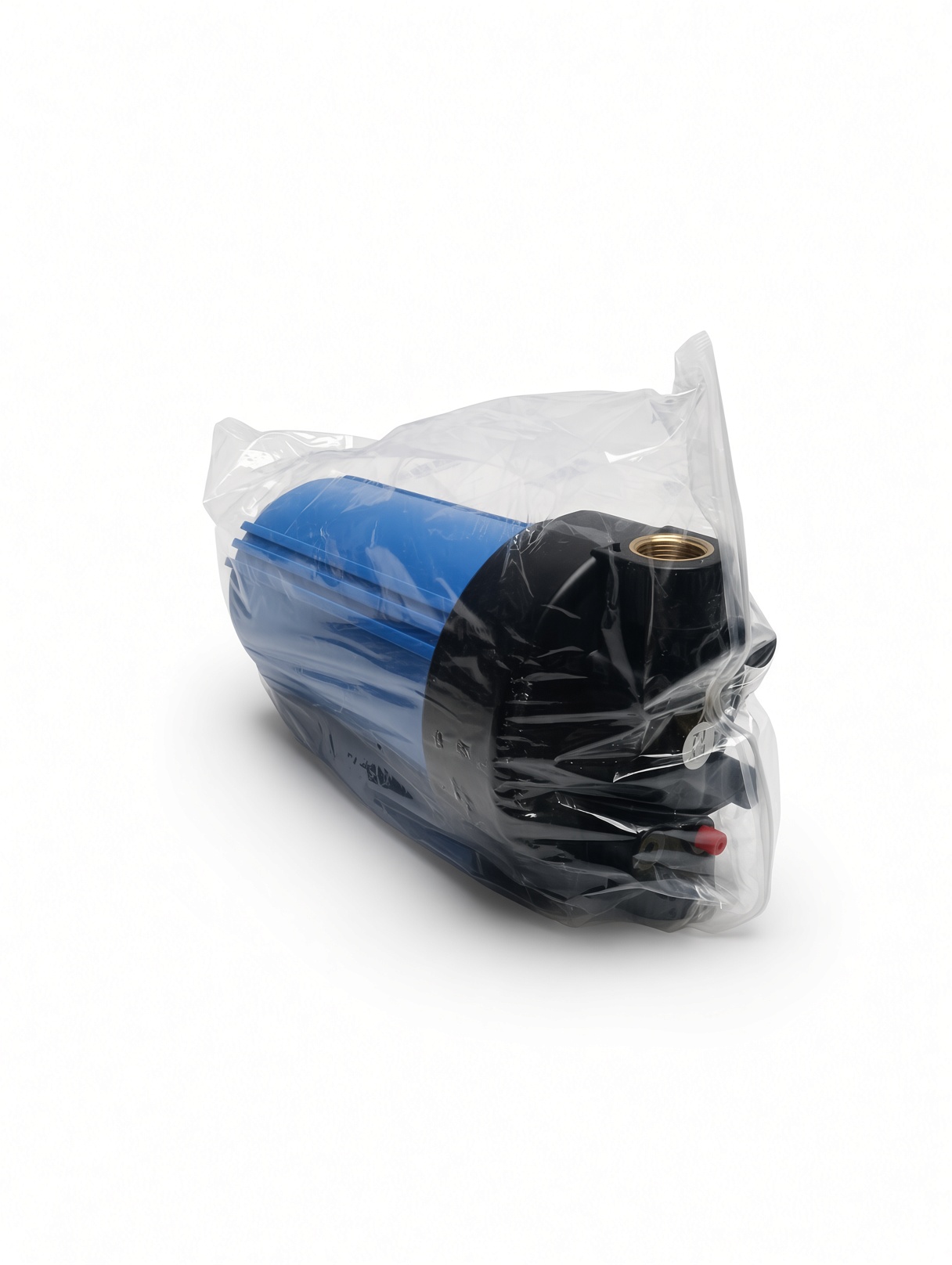

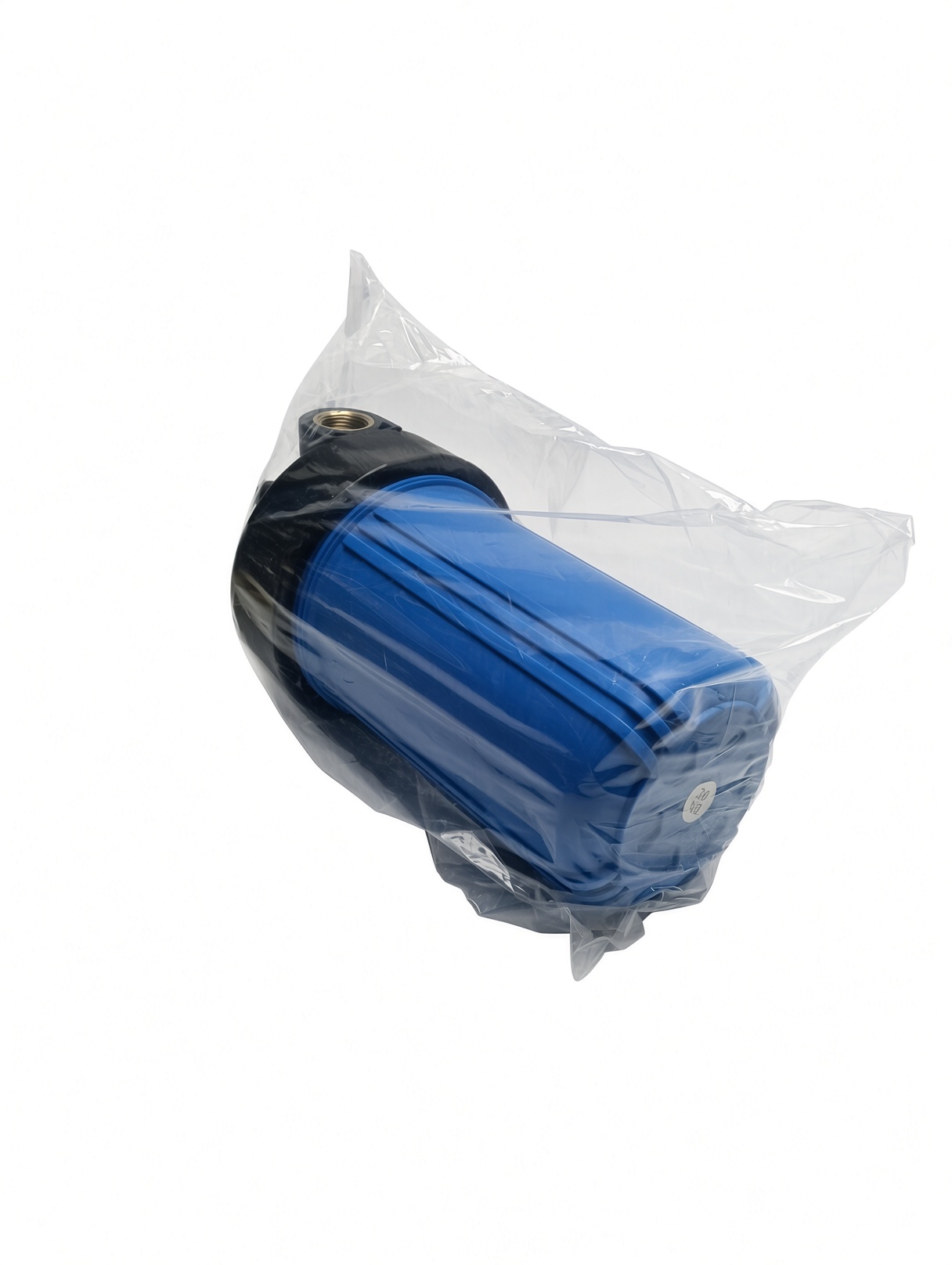

Robust and reliable filter housing designed for standard 10-inch Big Blue filter cartridges. The housing is compatible with a wide range of filter media, including activated carbon filters for reducing organic contaminants, taste and odour, sediment filters for particle removal, and various mesh filters for coarse filtration. Suitable for installation in both technical water treatment systems and simpler applications where pre-filtration or water polishing is required. Its modular design allows for flexible integration into existing systems and can be configured to meet specific treatment requirements.

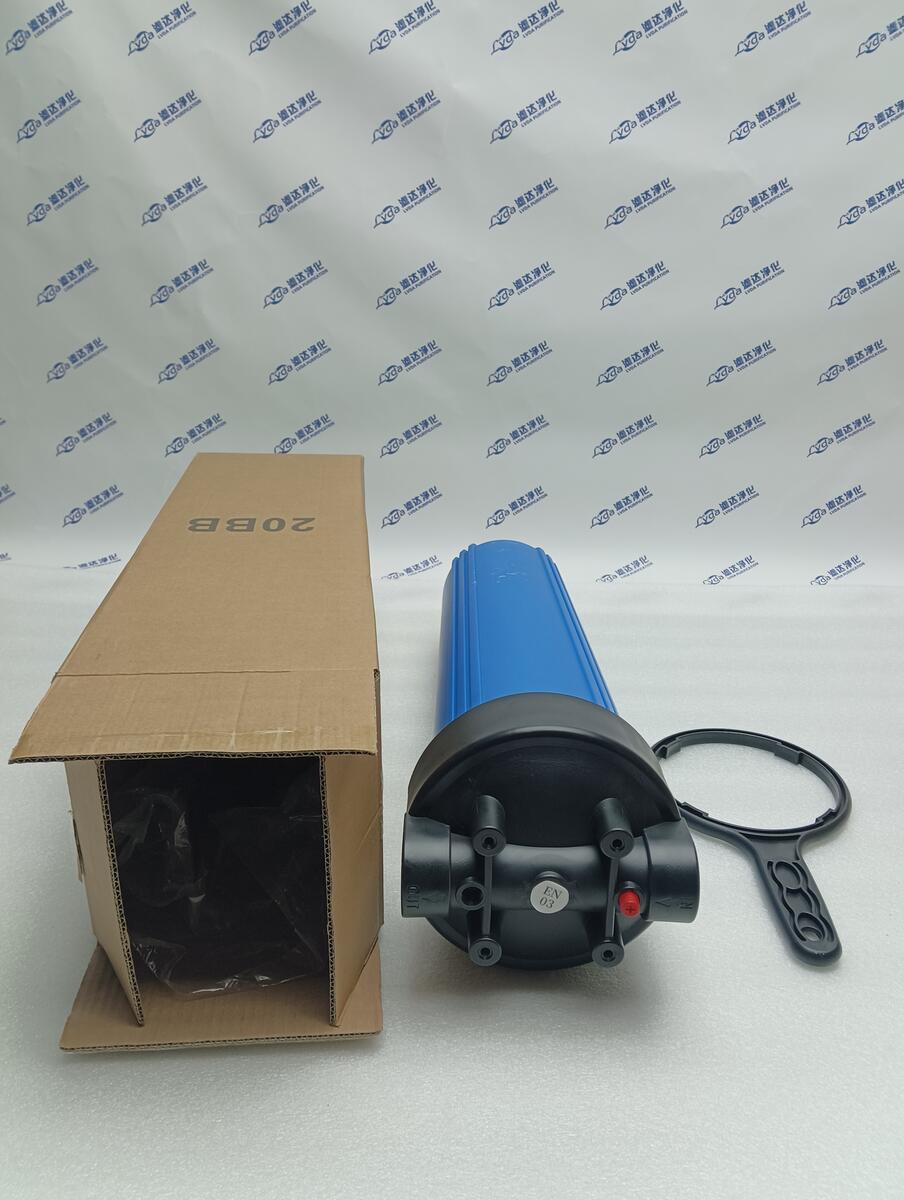

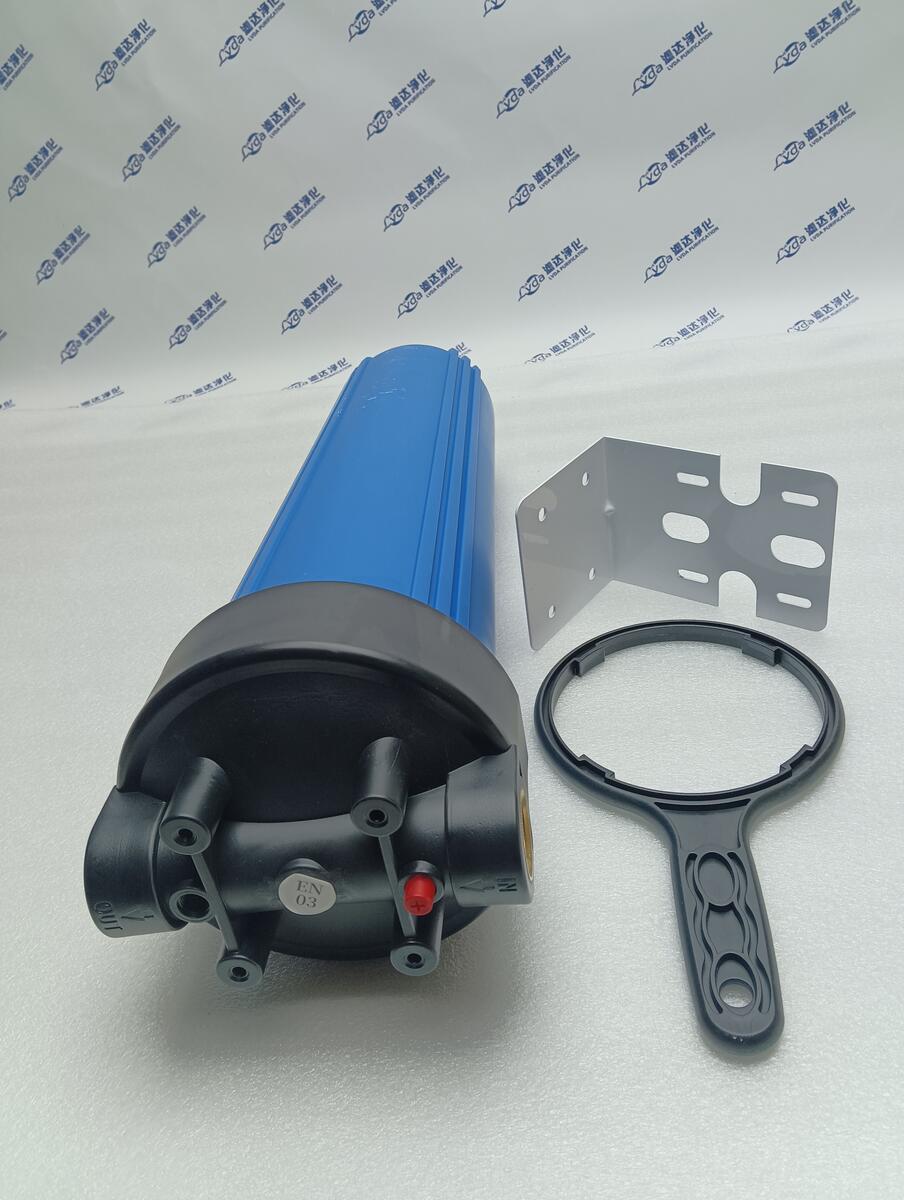

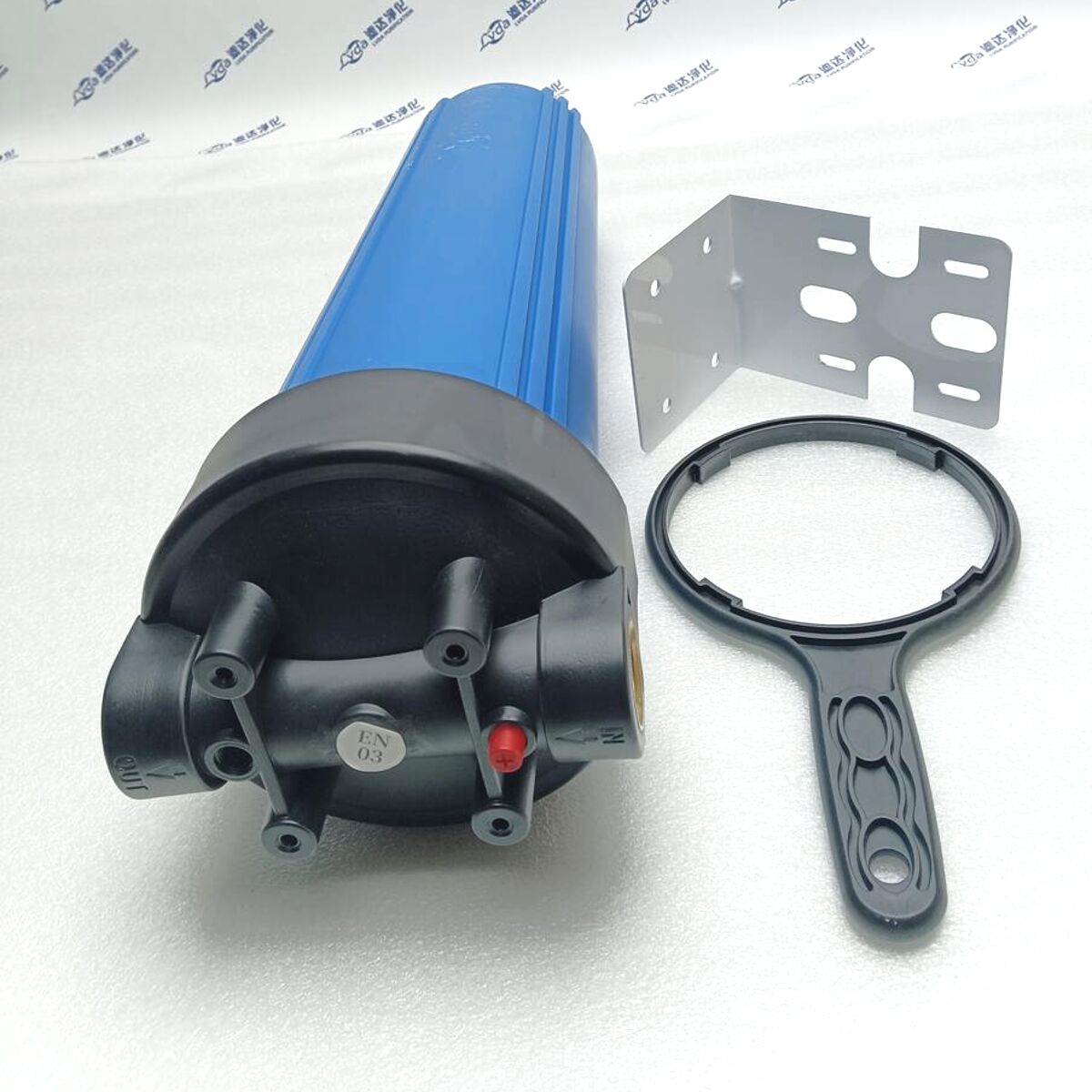

Robust and reliable filter housing designed for standard 20‑inch water filter cartridges. The housing is compatible with a wide range of filter media, including carbon filters for reducing organic contaminants and odors, particulate filters for removing suspended solids, and various mesh filters for coarse filtration. Suitable for installation in both technical water treatment systems and simpler applications where pre‑filtration or water polishing is required. The modular design enables flexible integration into existing systems and can be configured to meet specific requirements. The product is also available as ready‑to‑install kits, including selected filter cartridges tailored to specific applications.

Food-grade black silicone tubing for peristaltic pumps designed for applications requiring stable flow, long service life and excellent chemical resistance.

The tubing is specifically developed for peristaltic pumps, dosing systems, vacuum pumps and fluid transfer applications. The opaque black construction provides UV protection while helping to shield light-sensitive fluids from degradation.

Features

• Food-grade silicone
• Optimised for peristaltic pumps
• Excellent resistance to acids, alkalis and oxidising agents
• UV-resistant and opaque
• Low gas permeability
• Stable flow characteristics
• Reduced recalibration frequency
• Good tear resistance
• Ageing and oxidation resistant

Technical Specifications

• Material: Food-Grade Silicone
• Colour: Black
• Inner Diameter (ID): 3.18 mm
• Outer Diameter (OD): 6.35 mm
• Wall Thickness: 1.59 mm
• Operating Temperature: -40°C to +130°C
• Supply Length: 5 m

Applications

• Peristaltic Pumps
• Dosing Systems
• Vacuum Pumps
• Gas Transfer Lines
• Liquid Transfer Lines

Food-grade black silicone tubing for peristaltic pumps designed for applications requiring stable flow, long service life and excellent chemical resistance.

The tubing is specifically developed for peristaltic pumps, dosing systems, vacuum pumps and fluid transfer applications. The opaque black construction provides UV protection while helping to protect light-sensitive media.

Features

• Food-grade silicone
• Optimised for peristaltic pumps
• Excellent resistance to acids, alkalis and oxidising agents
• UV-resistant and opaque
• Low gas permeability
• Stable flow characteristics
• Reduced recalibration frequency
• Good tear resistance
• Ageing and oxidation resistant

Technical Specifications

• Material: Food-Grade Silicone
• Colour: Black
• Inner Diameter (ID): 4.76 mm
• Outer Diameter (OD): 7.94 mm
• Wall Thickness: 1.59 mm
• Operating Temperature: -40°C to +130°C
• Supply Length: 5 m

Applications

• Peristaltic Pumps
• Dosing Systems
• Vacuum Pumps
• Gas Transfer Lines
• Liquid Transfer Lines
• Laboratory Equipment
• Water Treatment Systems
• Industrial Process Applications

Suitable for low-pressure fluid transfer applications. Not intended as pressure-rated tubing.

Food-grade black silicone tubing for peristaltic pumps designed for applications requiring stable flow, long service life and excellent chemical resistance.

The tubing is specifically developed for peristaltic pumps, dosing systems, vacuum pumps and fluid transfer applications. The opaque black construction provides UV protection while helping to protect light-sensitive media.

Features

• Food-grade silicone
• Optimised for peristaltic pumps
• Excellent resistance to acids, alkalis and oxidising agents
• UV-resistant and opaque
• Low gas permeability
• Stable flow characteristics
• Reduced recalibration frequency
• Good tear resistance
• Ageing and oxidation resistant

Technical Specifications

• Material: Food-Grade Silicone
• Colour: Black
• Inner Diameter (ID): 6.35 mm
• Outer Diameter (OD): 11.1 mm
• Wall Thickness: 2.38 mm
• Operating Temperature: -40°C to +130°C
• Supply Length: 5 m

Applications

• Peristaltic Pumps
• Dosing Systems
• Vacuum Pumps
• Gas Transfer Lines
• Liquid Transfer Lines
• Laboratory Equipment
• Water Treatment Systems
• Industrial Process Applications

Suitable for low-pressure fluid transfer applications. Not intended as pressure-rated tubing.

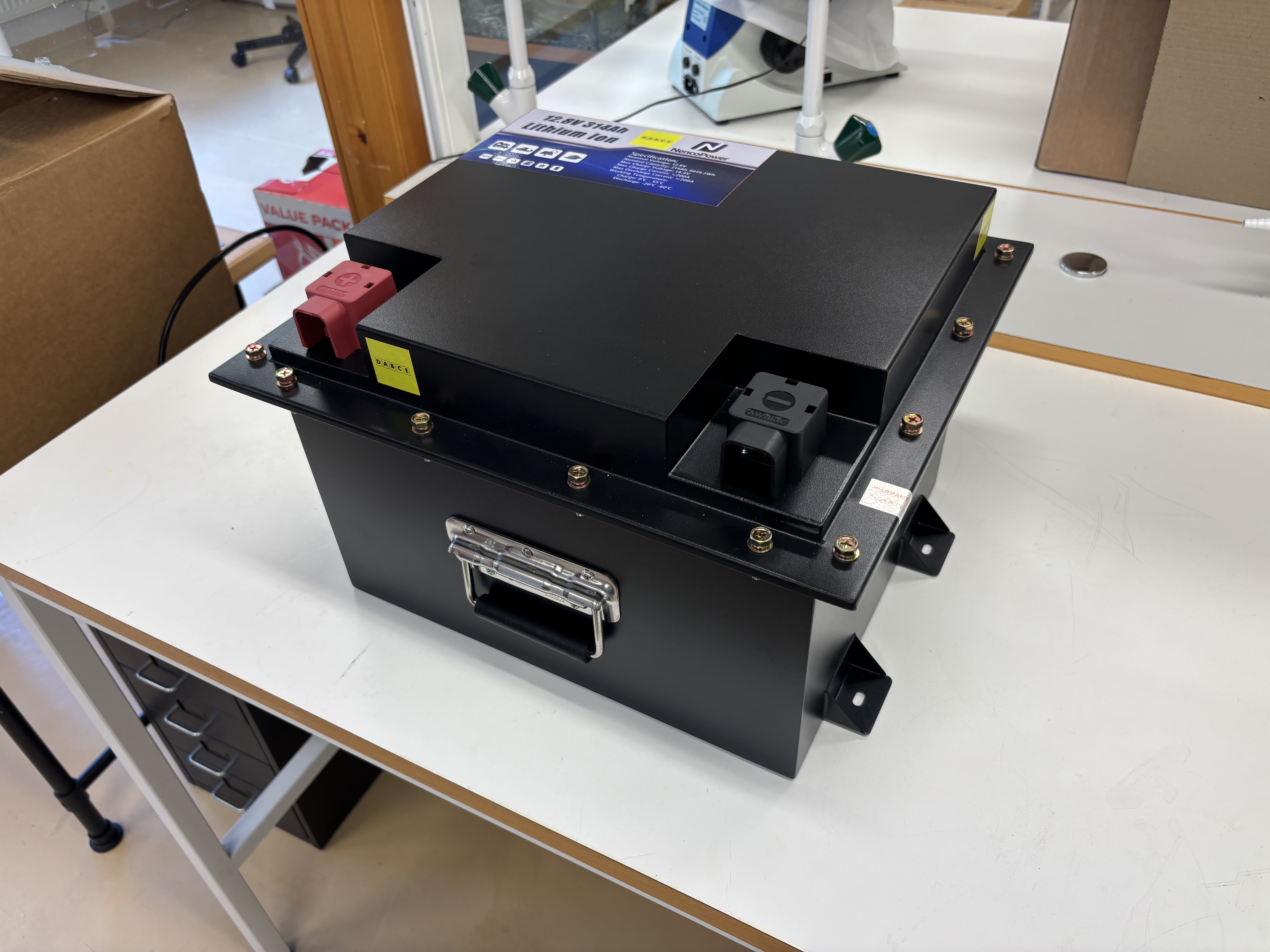

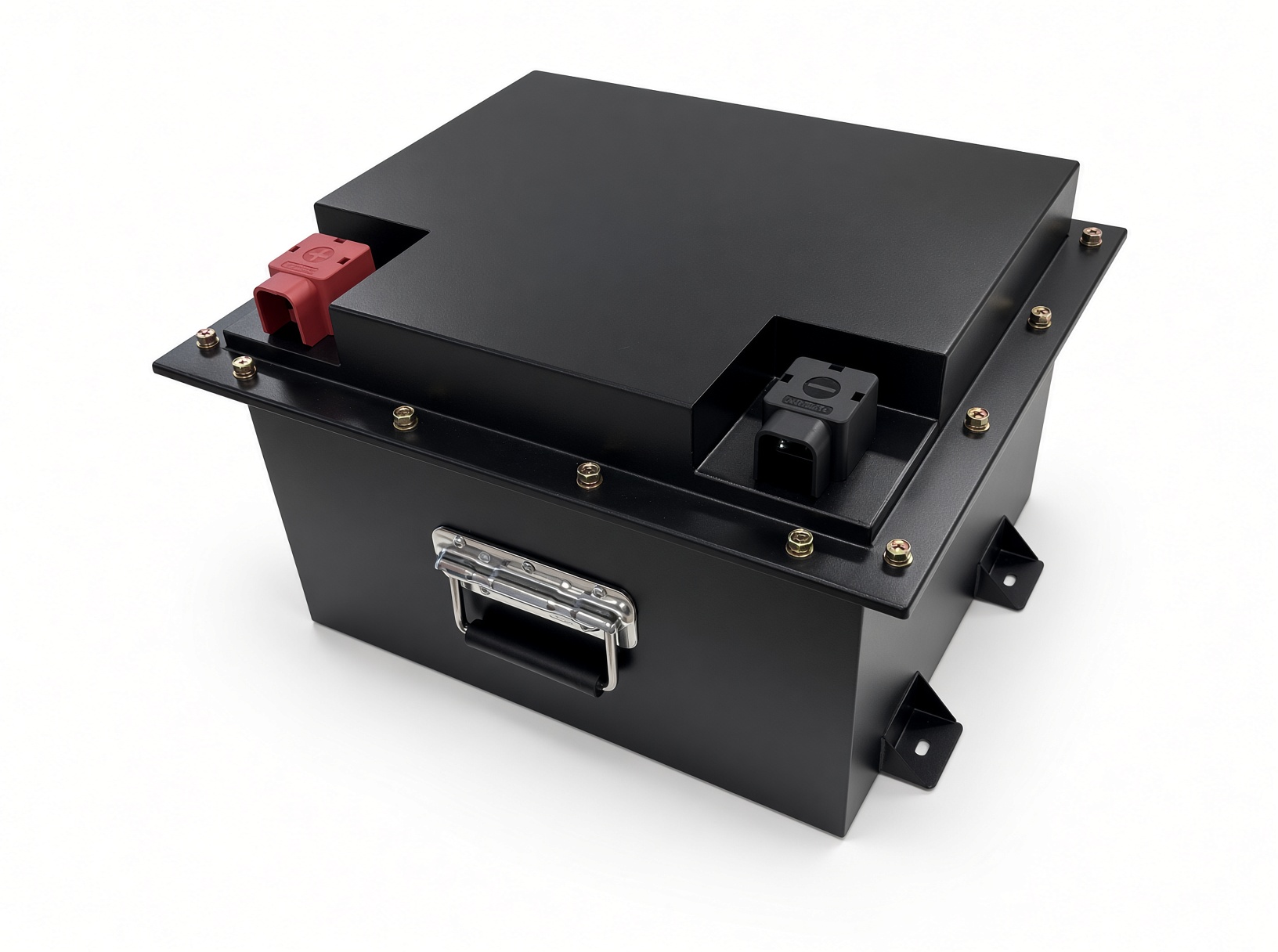

th over 4 kWh of usable energy, a rugged metal enclosure, and advanced BMS protection, this battery is ideal for off-grid systems, energy storage, marine applications, industrial installations, RAS aquaculture, vehicles, and much more.
Features & Benefits
✔ Extremely Long Service Life – ≥6,000 Cycles
The LiFePO4 cells provide a service life of more than 6,000 cycles at 100% DOD, while retaining over 80% of their original capacity after full-cycle testing.
✔ High Capacity & High Power Output
Capacity: 314Ah
Energy: 4,019 Wh
Max Continuous Current: 200A (charge and discharge)
Perfect for applications requiring high current loads.

✔ Advanced BMS with Comprehensive Protection
Built-in 4S-200A Battery Management System featuring:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection (≥600A)
- Cell balancing
- Temperature monitoring

✔ Rugged Construction – IP67 Rated
The battery is housed in a durable metal enclosure with an IP67 rating, making it resistant to dust and water ingress.

✔ Extended Operating Temperature Range
Charging: 0°C to +55°C
Discharging: –20°C to +60°C
Storage: Up to 6 months at –10°C to +35°C

✔ Integrated Heating for Cold-Weather Charging
Supports battery heating during charging in cold environments (optional).

Technical Specifications
Battery Type: LiFePO4 4S1P
Nominal Voltage: 12.8V
Capacity: 314Ah
Energy: 4,019 Wh
Internal Resistance: ≤20 mΩ
Weight: 12.5 ± 0.2 kg

Current & Protection
Standard Charge Current: 100A
Max Continuous Charge Current: 200A
Standard Discharge Current: 100A
Max Continuous Discharge Current: 200A
Overvoltage Protection (Pack): 15V
Undervoltage Protection (Pack): 10V

Materials & Construction
Enclosure: Metal, IP67 Rated
Terminal Type: M8 Terminals
Dimensions: 404 × 354 × 250 mm (±2 mm)

Applications
This battery pack is suitable for:
Off-grid energy systems
Marine and boat installations
Caravans, motorhomes, and recreational vehicles
Industrial processes
RAS aquaculture systems
Backup power (UPS)
Solar energy systems
Electric vehicles, robotics, pumps, and high-load sensor systems

Transportation & Certification
Classification: UN3480, Class 9 (Lithium Batteries)
May be transported in accordance with IATA regulations when shipped at less than 30% state of charge.

Warranty
Products are supplied with a 1-year manufacturer’s warranty covering defects in materials and workmanship.

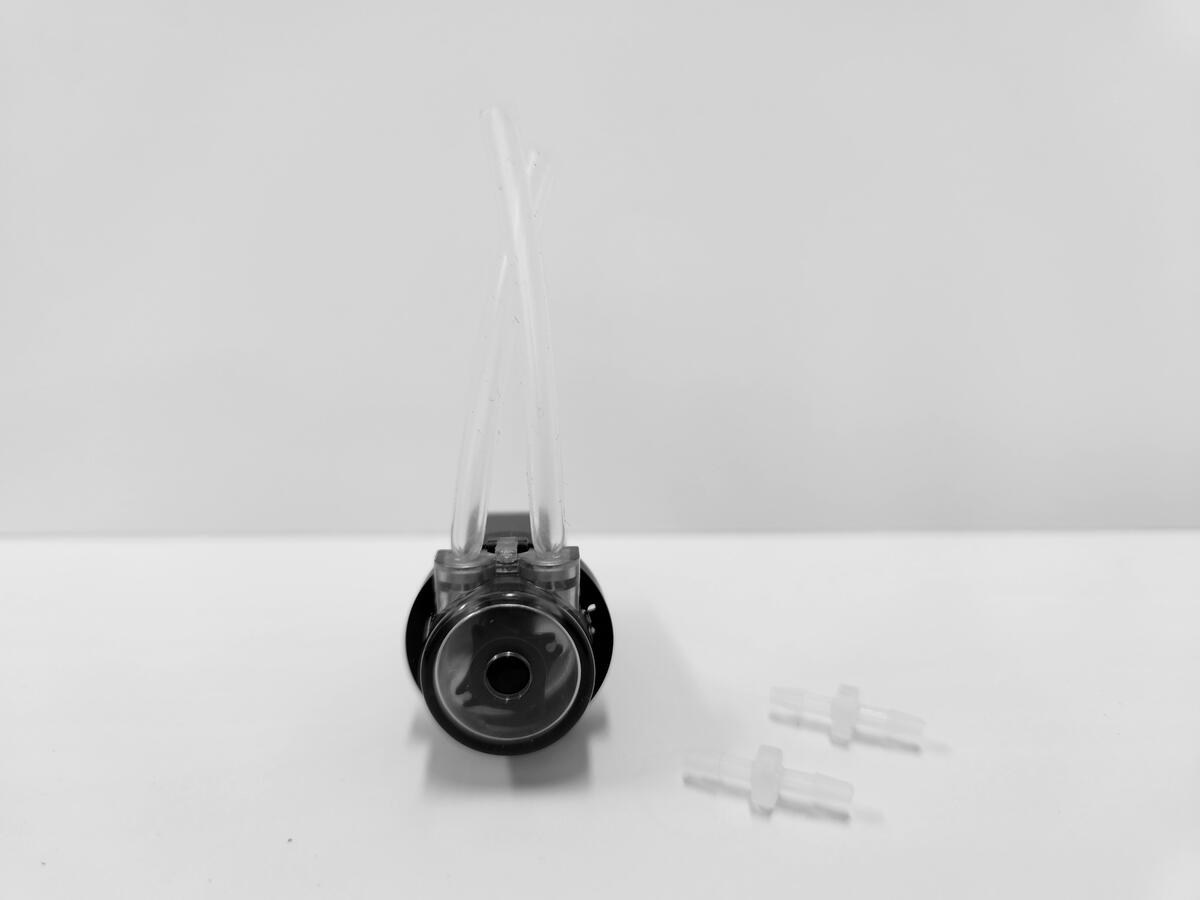

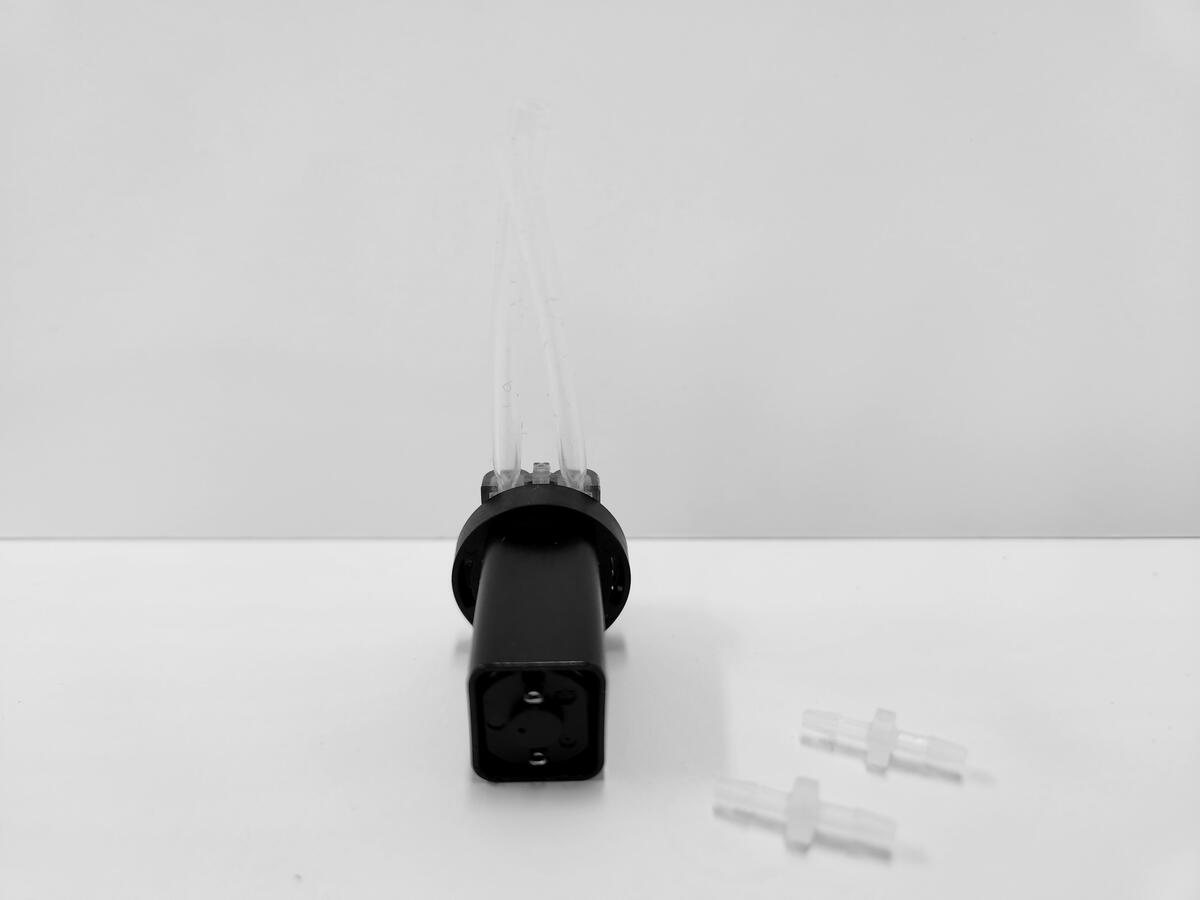

Miniature peristaltic dosing pump featuring low power consumption and stable liquid delivery for small-volume dosing applications. The pump is equipped with a silicone tube and powered by a 3.7 V DC geared motor. The peristaltic design ensures that only the tubing comes into contact with the fluid, reducing contamination risks while simplifying maintenance and tube replacement. Suitable for laboratory instruments, water analysis systems, chemical dosing, automation projects, prototyping, and IoT-based equipment requiring accurate low-flow pumping. Flow rate: 1.8 ml/min Rated voltage: 3.7 V DC Power consumption: 0.4 W Silicone pump tube (S11) Tube dimensions: 2 mm ID × 3 mm OD Compact and lightweight design

ModuPure™ Home is a complete water treatment module developed for single-family homes, cottages and small properties. Built around proven industrial components, the system combines sediment filtration, activated carbon treatment and dual UV disinfection in a compact and service-friendly package. Water first passes through a sediment filter that helps reduce sand, rust and suspended particles. The water is then treated using activated carbon (GAC), helping to reduce odors, taste issues and organic contaminants. Finally, two UV disinfection units provide chemical-free treatment before the water is distributed throughout the property. ModuPure™ Home is delivered fully assembled on a modular industrial frame, allowing for straightforward installation and future maintenance. Package Includes:

• 1 x 20" Big Blue sediment filter (5 µm)
• 1 x 20" Big Blue GAC activated carbon filter
• 2 x 30 W UV disinfection units
• Modular frame based on industrial profile systems
• Manual service valves
• DN25 (1") BSP process connections

Technical Data:

• Designed for: up to 5 people
• Typical application: homes, cottages and small properties
• Typical flow rate: up to 1.5 m³/h
• Power supply: 230 VAC (plug-in connection)
• Installed UV power: 2 × 30 W
• Connection size: DN25 (1") BSP

Benefits:

• Complete water treatment solution for residential use
• Dual UV disinfection for enhanced reliability
• Activated carbon filtration for improved taste and odor
• Chemical-free water treatment
• Compact footprint
• Low maintenance requirements
• Simple installation and servicing
• Based on standardized industrial components
• Designed according to DABCE's Advanced Simplicity philosophy

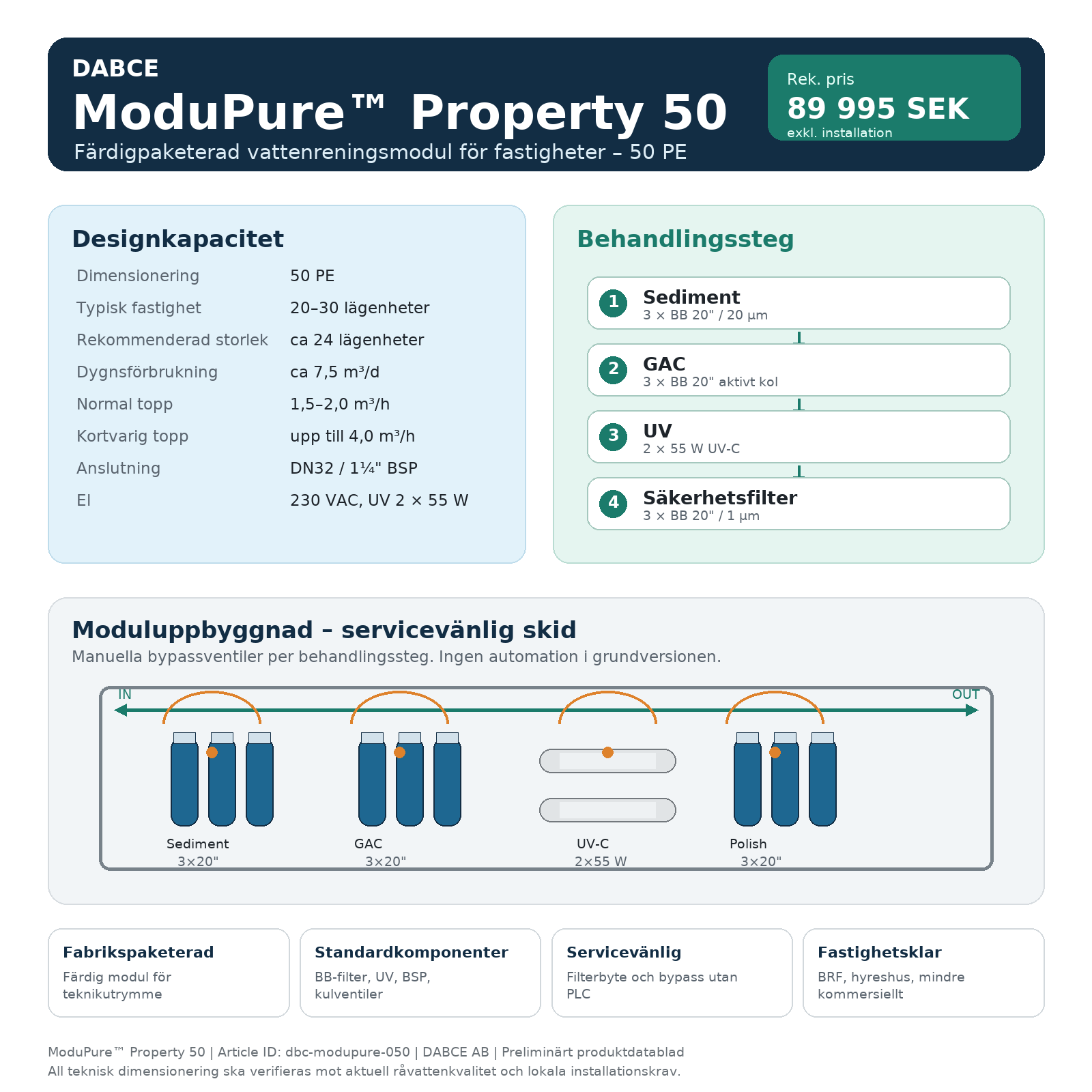

50 PE || 20–30 apartments || Up to 4 m³/h

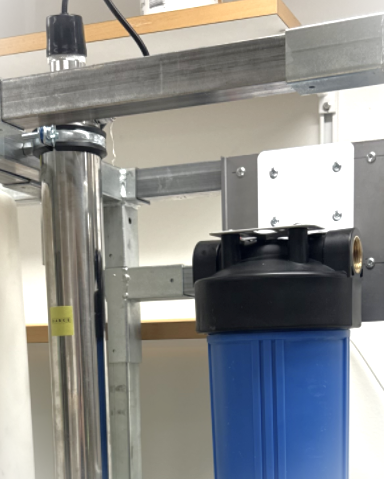

ModuPure™ Property 50 is a complete water treatment module developed for apartment buildings, housing associations, rental properties, schools, hotels and small commercial facilities. The system is designed for approximately 50 population equivalents (PE) and is based on proven industrial components, focusing on reliability, simple maintenance and long service life. Water first passes through sediment filtration to reduce sand, rust and suspended particles. Activated carbon filtration (GAC) then helps reduce odors, taste issues and organic compounds. Two UV disinfection units provide chemical-free treatment before the water finally passes through a safety filter designed to capture any potential particles originating from downstream system components. The module is factory-assembled on a skid with integrated bypass valves and standardized connections for straightforward installation and maintenance.
Package includes:

• 3 x 20" Big Blue sediment filters (20 µm)
• 3 x 20" Big Blue GAC activated carbon filters
• 2 x 55 W UV disinfection units
• 3 x 20" Big Blue safety filters (1 µm)
• Powder-coated or stainless steel skid frame
• Bypass valves for all treatment stages
• Inlet and outlet pressure gauges
• DN32 (1¼") BSP connections

Technical data:

• Design capacity: 50 PE
• Typical number of apartments: 20–30 units
• Recommended size: approximately 24 apartments
• Daily water demand: approximately 7.5 m³/day
• Normal peak flow: 1.5–2.0 m³/h
• Short-term peak flow: up to 4.0 m³/h
• Power supply: 230 VAC
• Installed UV power: 110 W
• Connection size: DN32 (1¼") BSP

Benefits:

• Complete factory-assembled water treatment module
• Developed for multi-family and commercial properties
• Dual UV disinfection for enhanced reliability
• Based on standardized industrial components
• Low maintenance requirements
• Simple installation and servicing
• Chemical-free water treatment
• Improved taste, odor and water quality
• Service-friendly design with bypass valves
• Developed according to DABCE's advanced simplicity philosophy

OWTS™ M is a standardized off-grid water treatment system delivered in a robust 10-foot ISO container. The system is designed for decentralized water supply in remote locations, emergency preparedness, defence applications, disaster relief operations, and temporary installations.

The standardized OWTS™ M configuration provides a nominal treatment capacity of 200 litres per hour and incorporates pre-filtration, biological slow sand filtration, DABCE Hygienizer™, UV and ozone-based disinfection, and final polishing filtration in a complete multi-barrier treatment process.

Key Technical Data

• System Type: Containerized off-grid water treatment system
• Container Format: 10-foot ISO container
• Dimensions (L×W×H): 3.05 × 2.44 × 2.59 m
• Transport Weight: approximately 3,500 kg
• Operating Weight: approximately 7,000 kg
• Nominal Treatment Capacity: 200 litres per hour
• Design Flow Range: 100–300 litres per hour
• Clean Water Storage: 1,600 litres
• Typical Power Consumption: 90–100 W
• Specific Energy Consumption: approximately 0.5 Wh/L
• Operating Voltage: 12/24 VDC or 230 VAC
• Chemicals: No chemicals required during normal operation
• Membranes: None
• Operator Requirement: Designed for operation by non-specialists

Energy Supply

OWTS™ M is delivered as a complete off-grid water treatment solution with integrated energy storage based on the DBC-POWER-002 LiFePO4 battery system.

• Integrated DBC-POWER-002 LiFePO4 battery pack
• Battery Capacity: 12.8 V, 314 Ah
• Energy Storage Capacity: approximately 4 kWh
• Solar power system included
• Battery charging via 230 VAC mains power
• Generator connection supported
• Wind power integration available
• Operating Voltage: 12/24 VDC and 230 VAC
• Typical OWTS™ M power consumption: 90–100 W

The integrated LiFePO4 battery pack provides high safety, long service life, and reliable power delivery for water production even in areas with limited or non-existent electrical infrastructure.

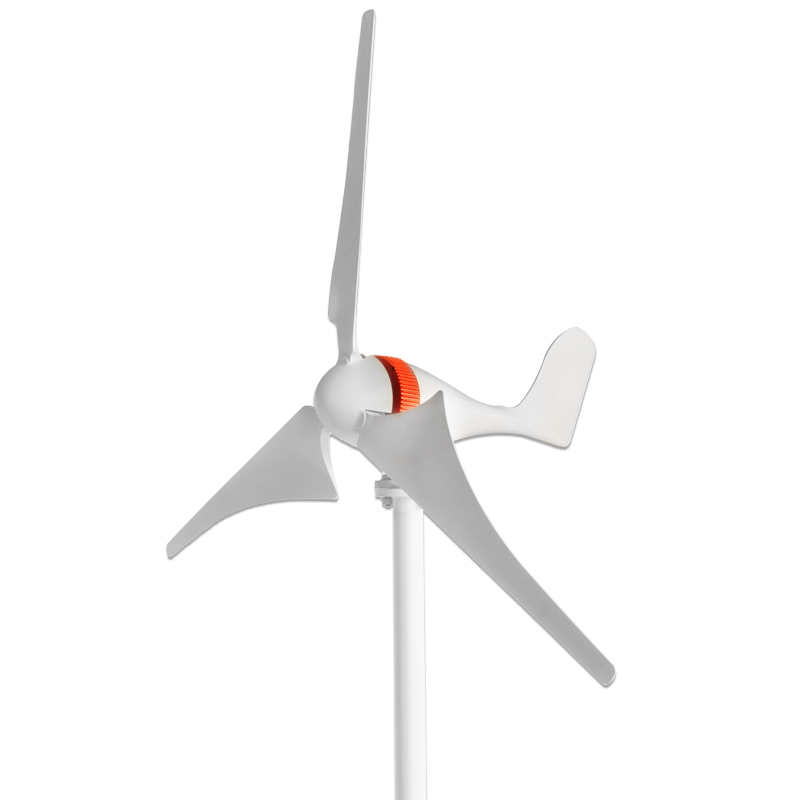

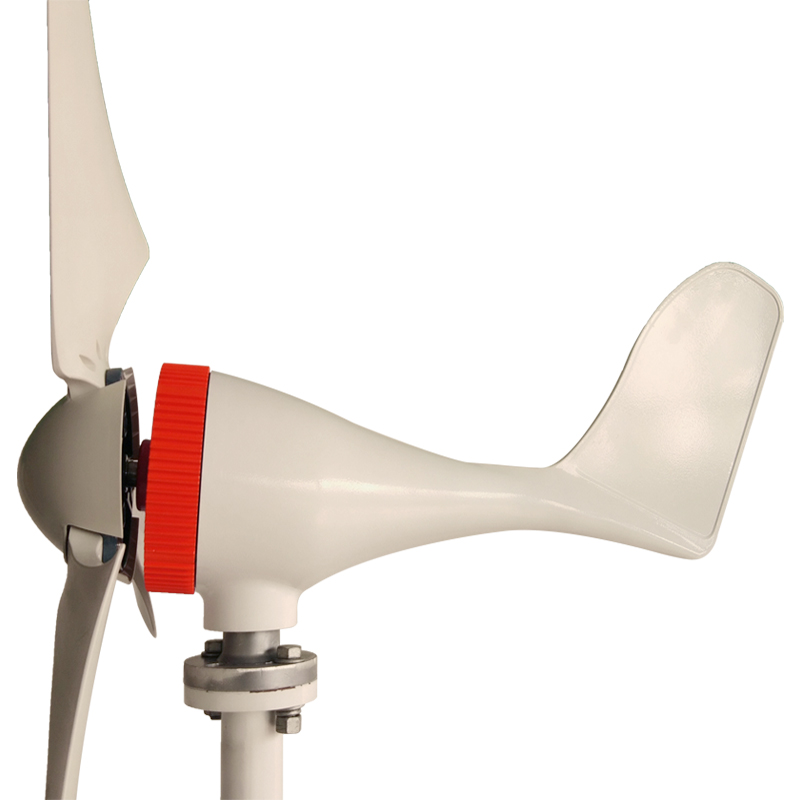

• Optional Accessory: DBC-POWER-001 Wind Turbine 300 W
• Rated Power: 300 W
• Included: Wind/Solar Hybrid Charge Controller
• Price: SEK 12,999 incl. VAT

For enhanced energy resilience and increased renewable power generation, OWTS™ M can be combined with the DBC-POWER-001 Wind Turbine 300 W. This option improves year-round off-grid performance, particularly during periods of reduced solar irradiation.

Delivery and Project Execution

OWTS™ M is manufactured to order and has a typical lead time of approximately four months from confirmed order placement.

Following order placement, DABCE AB will contact the customer to review site conditions, raw water source, energy supply, logistics, and delivery requirements. This process ensures that the system is delivered correctly configured and that installation can be performed safely and efficiently.

• Typical Lead Time: approximately 4 months
• Delivery Terms: EXW Storfors, Sweden
• Project review included after order placement
• Pre-installation technical support included
• Freight and installation services quoted separately when required

OzoneFresh Home Pro™ is a portable household ozone generator with a clear digital timer and stable ozone output. Use it to treat fruit and vegetables, water, kitchen utensils and surfaces – without added chemicals.

• Ozone output approx. 600 mg/h
• Digital timer with fixed intervals
• Compact and easy to use
• Accessories: silicone tubing and air stones included
• Chemical-free disinfection for the home

OzoneFresh Home™ – Household Ozone Purifier for Food and Water

OzoneFresh Home™ is a compact household ozone purifier designed to support everyday cleaning and hygiene in the home. Using ozone technology, the system helps clean fruits, vegetables, kitchen utensils and water without the use of traditional chemical cleaning products.

The modern design and built-in digital timer make the unit simple and convenient to use in any kitchen. Its compact size allows it to fit easily on a countertop while providing a practical solution for households seeking a versatile cleaning appliance.

By generating ozone and delivering it through the supplied tubing and diffuser stones, the system can be used with water to clean fresh produce, kitchen tools and various household items. After use, ozone naturally breaks down into oxygen, leaving no chemical residue behind.

Typical Applications

• Cleaning fruits and vegetables
• Food preparation and kitchen hygiene
• Cleaning kitchen utensils and accessories
• Household water treatment applications
• Use in holiday homes, caravans and boats
• General household cleaning support

Key Benefits

• Compact and user-friendly design
• Built-in digital timer
• Suitable for everyday household use
• Simple setup and operation
• Low power consumption
• Portable and easy to store
• Ideal for kitchens and small spaces

Technical Specifications

• Ozone Output: 600 mg/h
• Power Consumption: 10 W
• Power Supply: 110–240 VAC
• Timer: Adjustable 1–60 minutes
• Power Cord Length: 1.8 m
• Net Weight: Approx. 0.75 kg

A Practical Ozone Solution for Everyday Use

Whether used for cleaning fresh produce, supporting household hygiene or treating water for everyday applications, OzoneFresh Home™ provides a convenient introduction to ozone technology in a compact and affordable format.

Designed for modern households, the system combines ease of use, portability and practical functionality, making it a useful addition to kitchens, holiday homes and other living spaces where cleanliness and convenience matter.

OzoneFresh Inline™ is a compact inline ozone machine for household use that treats tap water directly in the flow. The system provides ozonated water for drinking, fruit and vegetables, kitchen use and everyday needs – without added chemicals.

The unit is installed in the water line and activates when water is drawn. Ozone helps reduce bacteria, viruses and organic contaminants, then decomposes back to oxygen.

• Inline installation for continuous water treatment
• Suitable for drinking water, fruit & vegetables and kitchen use
• Chemical-free disinfection
• Compact design for homes and small installations
• Simple operation and low maintenance

Typical values (indicative): ozone concentration approx. 0.4–1.0 mg/L, flow approx. 2–8 L/min depending on variant.

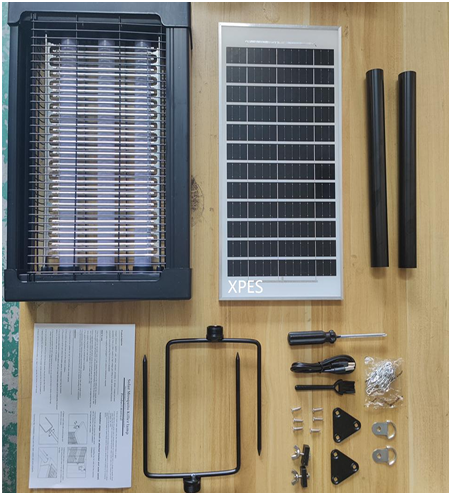

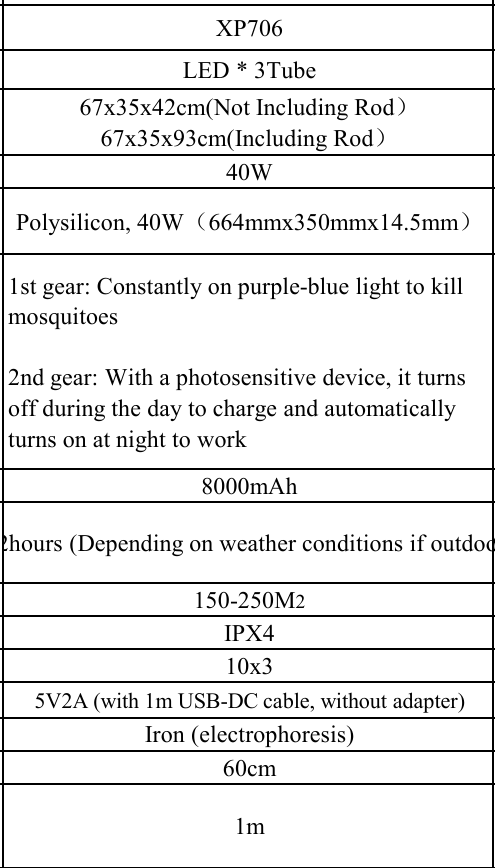

High-capacity solar insect trap designed for outdoor environments where comfort, hygiene, and usability are important. Ideal for ponds, water treatment facilities, cabins, campsites, technical installations, and outdoor recreational areas.

The integrated UV attraction system helps reduce insect activity while a high-capacity solar panel charges the internal battery during daylight hours. The unit operates automatically after dark without requiring a grid power connection.

Its weather-resistant design makes it suitable for both residential and commercial outdoor applications.

• Solar-powered operation
• Automatic day and night control
• 40W solar panel
• 8000 mAh rechargeable battery
• Up to 12 hours operating time
• Coverage area up to 150–250 m²
• Weather-resistant IPX4 construction
• Suitable for ponds, water treatment sites, and outdoor facilities

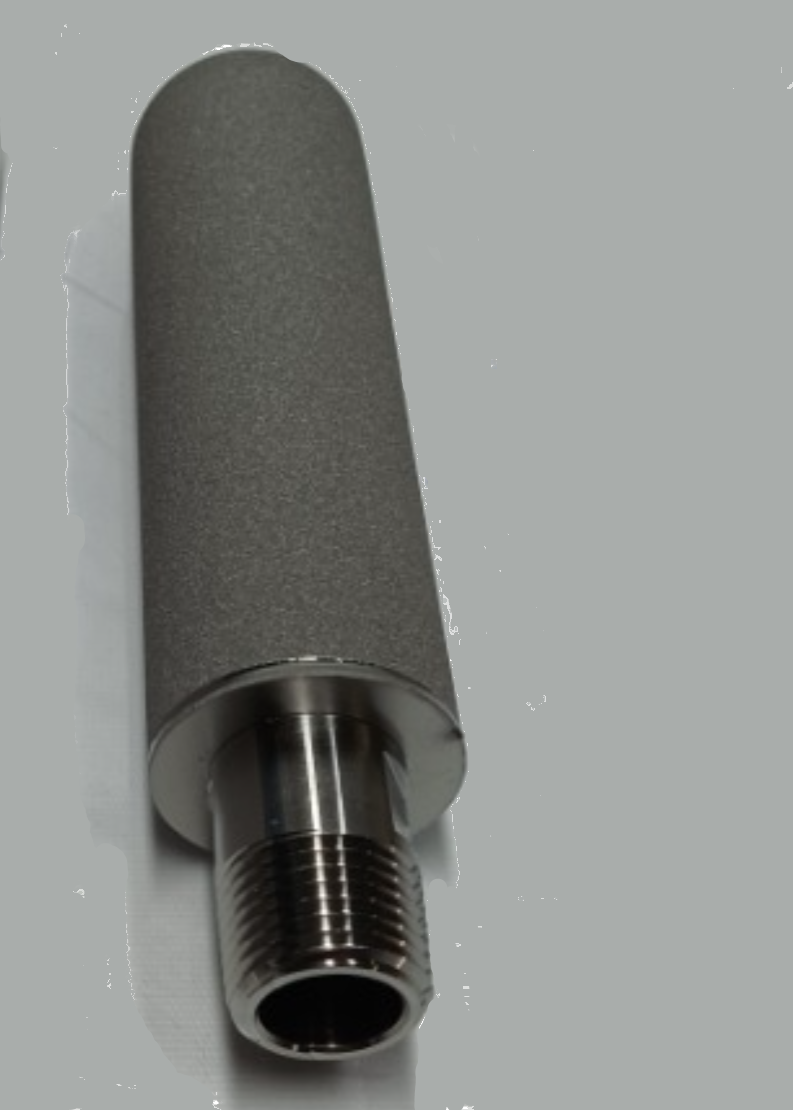

SS316 Fine Bubble Diffuser 10 µm is designed for applications requiring maximum gas transfer efficiency. The sintered stainless steel structure generates extremely fine bubbles, creating a large gas-liquid contact area.

The diffuser is suitable for ozone injection, oxygenation and aeration in industrial water treatment, aquaculture, laboratory systems and pilot installations.

Benefits

• Extremely fine bubble generation
• High gas transfer efficiency
• Corrosion-resistant SS316 construction
• Long operational life
• Easy installation
• Suitable for ozone, oxygen and air

Typical Applications

• Water ozonation
• Aquaculture and RAS
• Drinking water treatment
• Process water treatment
• Research and pilot systems

Specifications

• Material: SS316 Stainless Steel
• Pore Size: 10 µm
• Dimensions: 40 × 150 mm
• Connection: 1/2" BSP Male Thread

SS316 Fine Bubble Diffuser 20 µm combines efficient gas transfer with low pressure drop. The sintered stainless steel construction provides consistent gas distribution and reliable performance.

The diffuser is suitable for ozonation, oxygenation and aeration in water treatment systems, industrial processes and aquaculture facilities.

Benefits

• Low pressure drop
• Uniform gas distribution
• High mechanical strength
• Corrosion-resistant SS316 construction
• Easy installation
• Long service life

Typical Applications

• Water ozonation
• Oxygenation
• Aeration
• RAS aquaculture systems
• Industrial process water

Specifications

• Material: SS316 Stainless Steel
• Pore Size: 20 µm
• Dimensions: 40 × 150 mm
• Connection: 1/2" BSP Male Thread

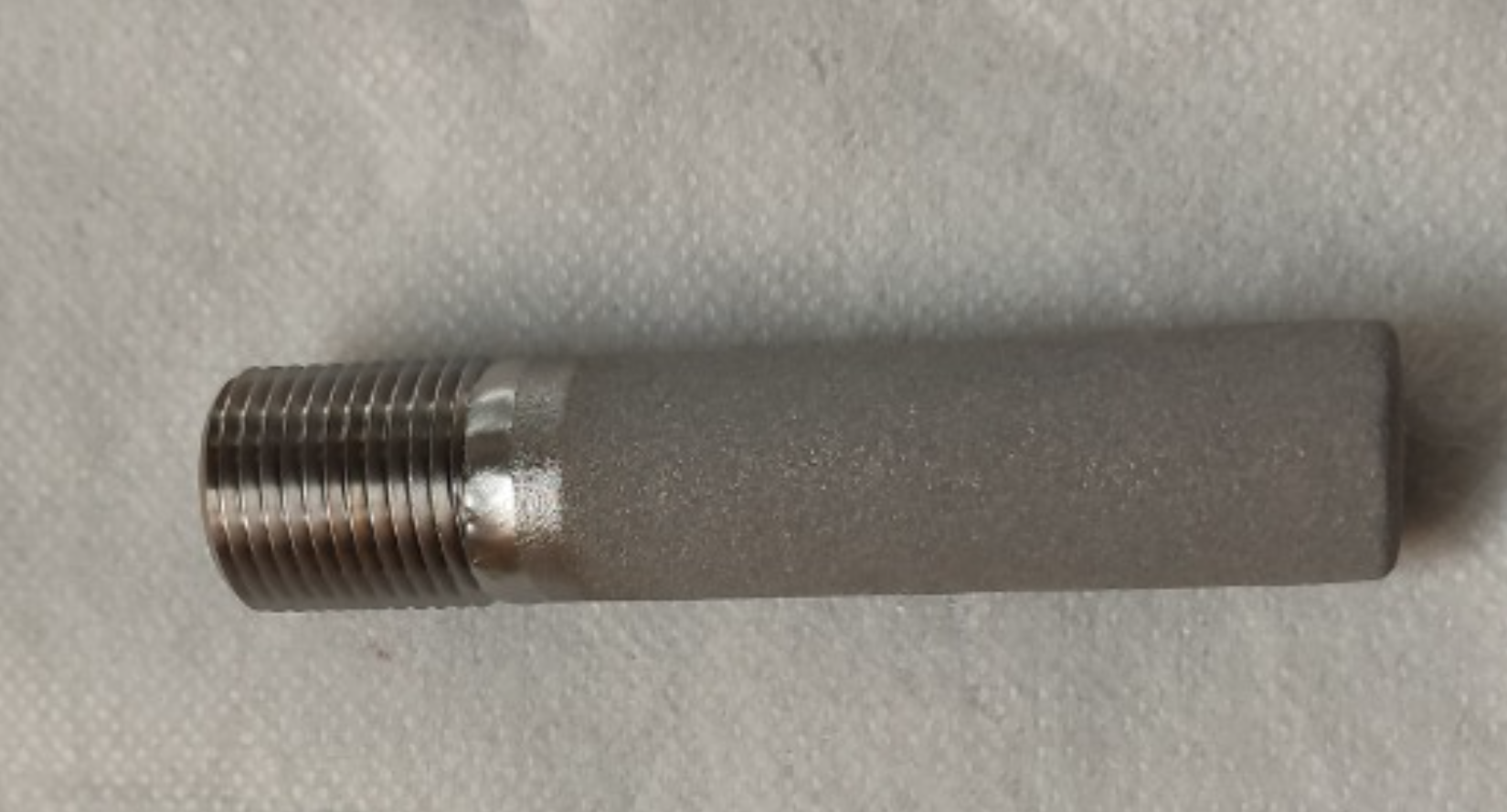

The SS316 Fine Bubble Diffuser 25 × 160 mm is designed for efficient transfer of gases into water and process liquids. The sintered stainless steel construction creates a uniform distribution of fine bubbles across the entire diffuser length, maximizing contact area and improving mass transfer efficiency.

The extended active diffusion surface makes this model particularly suitable for ozone systems, oxygenation, aeration, water treatment and aquaculture applications where high capacity and reliable performance are required.

Key Benefits

• Large active diffusion area
• Efficient transfer of ozone, oxygen and air
• Uniform and stable bubble generation
• Durable SS316 stainless steel construction
• Excellent corrosion resistance
• Easy installation with 1/2" BSP connection

Typical Applications

• Ozone contact and reaction tanks
• Aquaculture and RAS oxygenation systems
• Drinking water and process water treatment
• Aeration of tanks and reservoirs
• Pilot and research installations
• Industrial gas transfer processes

Specifications

• Material: Sintered SS316 stainless steel
• Dimensions: 25 × 160 mm
• Connection: 1/2" BSP male thread
• Available pore sizes: 10 µm and 20 µm

The Fine Bubble Diffuser is designed for efficient gas transfer in water treatment, aquaculture, industrial process systems and research applications. Manufactured from sintered SS316 stainless steel, the diffuser produces a large number of fine bubbles, increasing gas-liquid contact area and improving transfer efficiency.

The compact design makes the diffuser particularly suitable for pilot plants, laboratory systems, ozone contact tanks, oxygenation systems and other applications where space is limited but reliable gas distribution is required.

Key Benefits

• Efficient transfer of ozone, oxygen and air
• Fine and uniform bubble generation
• Corrosion-resistant SS316 stainless steel construction
• Compact design for flexible installation
• Long service life and low maintenance requirements
• Suitable for water treatment and aquaculture applications

Typical Applications

• Ozone injection systems
• Oxygenation systems
• Aquaculture and RAS facilities
• Water treatment plants
• Pilot and laboratory installations
• Industrial process water systems

Specifications

• Material: Sintered SS316 stainless steel
• Dimensions: 25 × 80 mm
• Connection: 1/2" BSP male thread
• Available pore sizes: 10 µm and 20 µm

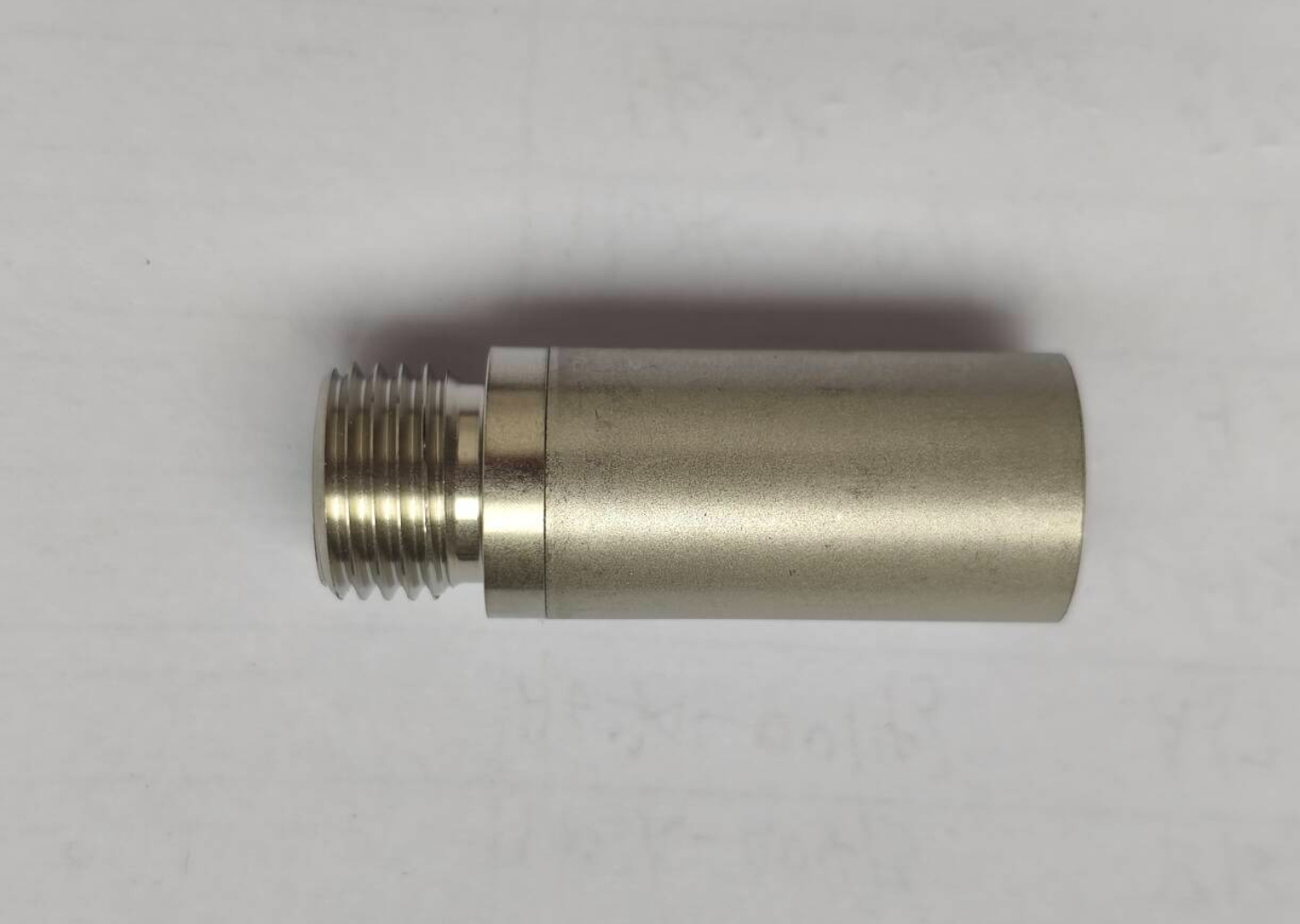

The SS316L Fine Bubble Diffuser 5–7 µm is designed for applications requiring maximum gas transfer efficiency. Its ultra-fine pore structure generates extremely small bubbles, significantly increasing gas-liquid contact area and improving mass transfer performance.

This diffuser is particularly well suited for ozone injection, oxygenation systems, water treatment, aquaculture and industrial process applications where high efficiency and reliable operation are essential.

Key Benefits

• Ultra-fine 5–7 µm pore structure
• Exceptional gas transfer efficiency
• Ideal for ozone and oxygen applications
• Corrosion-resistant SS316L construction
• Compact and robust design
• Long operational life

Typical Applications

• Water ozonation systems
• Oxygen dissolution and oxygenation
• Aquaculture and RAS facilities
• Process water treatment
• Laboratory and pilot plants
• Industrial gas transfer processes

Specifications

• Material: SS316L stainless steel
• Outer Diameter: 15 mm
• Inner Diameter: 9 mm
• Length: 40 mm
• Pore Size: 5–7 µm
• Connection: G1/4 male thread

ST501 Clamp-On Ultrasonic Flow Meter

The ST501 is a flexible clamp-on ultrasonic flow meter designed for liquid flow measurement without modifying the pipeline. External transducers are mounted on the outside of the pipe, enabling fast installation without cutting pipes, stopping production, or interrupting process operations.

Thanks to its non-invasive clamp-on design, the flow meter can easily be relocated between measurement points whenever required. This makes the ST501 ideal for temporary flow surveys, troubleshooting, system optimization, and continuous monitoring applications.

The ST501 utilizes proven transit-time ultrasonic technology to provide accurate flow measurement in water, seawater, process liquids, oils, and other compatible fluids. Since the transducers never come into contact with the liquid, there is no pressure loss, contamination risk, or leakage potential.

Typical Applications

• Water treatment plants
• RAS and aquaculture facilities
• Industrial process systems
• HVAC, cooling and heating systems
• Pump stations and utility networks
• Energy and resource monitoring
• Troubleshooting and performance assessments

Benefits

• No pipe cutting or process interruption required
• Easily relocated between measurement points
• No contact with the process fluid
• No pressure loss
• No leakage or contamination risk
• Suitable for pipe sizes from DN25 to DN1200
• LCD display with intuitive menu navigation
• RS485 communication for PLC, SCADA and automation systems
• 4–20 mA, pulse and relay outputs
• Bidirectional flow measurement

Technical Specifications

• Measurement principle: Transit-Time Ultrasonic
• Pipe size: DN25–DN1200
• Velocity range: 0 to ±5 m/s
• Accuracy: ±1.0%
• Communication: RS485
• Outputs: 4–20 mA, pulse output and relay output
• Power supply: 24 VDC
• Display: Backlit LCD
• Electronics enclosure: IP65
• Transducer protection: IP68
• Standard cable length: 10 meters

The ST501 provides a cost-effective solution for organizations that require reliable flow measurement without expensive installation work. Its ability to be relocated between multiple pipelines allows a single instrument to support several measurement applications across a facility.

Contact DABCE for assistance in selecting the appropriate configuration, transducer placement, and installation method for your application.

ST502 Premium Clamp-On Ultrasonic Flow Meter

The ST502 Premium is a professional-grade ultrasonic flow meter designed for accurate and reliable flow measurement in industrial, water treatment, HVAC, utility and aquaculture applications. Using non-invasive clamp-on transducers mounted externally on the pipe, the system measures flow without cutting the pipe, interrupting operations or modifying existing infrastructure.

Built around proven Transit-Time ultrasonic technology, the ST502 Premium delivers highly accurate flow data across a wide range of pipe sizes and operating conditions. The system is suitable for water, seawater, process water, oils and other compatible liquids, making it a versatile solution for engineers, operators and facility managers seeking dependable flow monitoring.

Unlike traditional inline flow meters, the ST502 Premium never comes into contact with the process fluid. This eliminates pressure loss, contamination risks and potential leakage points while significantly reducing installation time and cost.

The flexible clamp-on design allows the instrument to be relocated between measurement points whenever required. Whether used as a permanent monitoring solution or as a portable tool for troubleshooting, performance verification and process optimization, the ST502 Premium provides exceptional versatility throughout the facility.

Typical Applications

• Water treatment plants and distribution networks
• HVAC and building services systems
• Industrial process monitoring
• Aquaculture and RAS facilities
• Pump station performance verification
• Utility and infrastructure monitoring
• Flow surveys and temporary measurement campaigns
• Process optimization and troubleshooting

Key Benefits

• Non-invasive clamp-on installation
• No pipe cutting or process interruption required
• Easily relocated between measurement points
• High measurement accuracy
• Bidirectional flow measurement
• RS485 communication for PLC and SCADA integration
• IP68-rated transducers for demanding environments
• No pressure loss or contamination risk
• 4–20 mA, pulse and relay outputs
• Industrial-grade aluminum enclosure

Technical Specifications

• Measurement Principle: Transit-Time Ultrasonic
• Accuracy: ±0.5% of measured value
• Repeatability: 0.15%
• Pipe Size Range: DN25–DN5000
• Flow Velocity Range: Up to ±12 m/s
• Communication: RS485
• Outputs: 4–20 mA, pulse output and relay output
• Power Supply: 24 VDC
• Transmitter Protection: IP65
• Transducer Protection: IP68
• Transducer Temperature Rating: Up to +120°C

Professional Flow Monitoring Without Process Disruption

The ST502 Premium combines high accuracy, industrial reliability and installation flexibility in a single measurement platform. By eliminating the need for invasive installation work, the system enables rapid deployment while minimizing downtime and operational risk.

With support for large pipe diameters, advanced communication capabilities and robust IP68 transducers, the ST502 Premium is an ideal choice for organizations seeking dependable flow measurement, long-term process visibility and lower installation costs compared with conventional inline flow meters.

ST505 Ultrasonic Energy Meter

The ST505 is a professional ultrasonic energy meter designed for accurate monitoring of flow, heating energy and cooling energy in commercial and industrial installations. Combining non-invasive clamp-on ultrasonic flow measurement with temperature monitoring, the system provides valuable insight into thermal energy consumption without requiring modifications to existing pipework.

Designed for HVAC systems, district energy networks, cooling circuits and building management applications, the ST505 helps facility owners and operators understand how energy is consumed throughout their systems. Accurate energy data supports improved efficiency, reduced operating costs and better-informed investment decisions.

The clamp-on transducers are mounted externally on the pipe, eliminating the need for pipe cutting, process shutdowns or intrusive installation work. The system can be installed on existing infrastructure while operations remain fully active, making it ideal for both permanent monitoring systems and temporary energy audits.

When equipped with PT100 temperature sensors, the ST505 continuously measures supply and return temperatures in combination with flow rate data, providing real-time thermal energy calculations for heating and cooling applications.

Typical Applications

• HVAC systems
• Heating and cooling networks
• Commercial buildings
• Data centers
• Shopping centers and office buildings
• Hospitals and educational facilities
• Energy audits and cost allocation
• Building management systems (BMS)

Key Benefits

• Measure both flow and thermal energy consumption
• Ideal for heating and cooling applications
• Non-invasive clamp-on installation
• No pipe cutting or process interruption required
• Suitable for temporary energy audits and permanent monitoring
• RS485 communication for integration with building and automation systems
• 4–20 mA, pulse and relay outputs
• Bidirectional flow measurement
• No pressure loss or contamination risk
• Supports energy optimization and cost reduction initiatives

Technical Specifications

• Measurement Principle: Transit-Time Ultrasonic
• Accuracy: ±1.0%
• Pipe Size Range: DN25–DN1200
• Flow Velocity Range: Up to ±5 m/s
• Communication: RS485
• Outputs: 4–20 mA, pulse output and relay output
• Power Supply: 24 VDC
• Transducer Protection: IP68
• Transmitter Protection: IP65
• Temperature Measurement: PT100 compatible

Energy Insights Without System Downtime

The ST505 provides an efficient way to monitor energy performance without disrupting operations. By combining accurate flow measurement with temperature monitoring, the system delivers reliable data for energy management, sustainability initiatives, operational optimization and cost-saving projects.

Whether deployed in commercial buildings, industrial facilities or HVAC infrastructure, the ST505 enables users to understand energy usage, identify inefficiencies and improve overall system performance through data-driven decision making.

Transparent PVC tubing 2.0 x 4.0 mm for water, air, laboratory equipment, dosing systems and other low-pressure applications.

The smooth inner wall provides good flow characteristics while the transparent material allows easy visual inspection of the media. The tubing is flexible, durable and a cost-effective choice for many technical applications.

Features

• Cost-effective PVC tubing
• Smooth inner wall
• Good flexibility
• UV resistant
• Transparent design
• Glossy surface
• Good abrasion resistance

Technical Specifications

• Material: PVC
• Colour: Transparent
• Inner Diameter (ID): 2.0 mm
• Outer Diameter (OD): 4.0 mm
• Wall Thickness: 1.0 mm
• Operating Temperature: 0°C to +70°C
• Supply Length: 5 m

Intended for water, air and other low-pressure applications. This product is not specified as pressure-rated tubing.

Transparent PVC tubing 3.0 x 5.0 mm for water, air, dosing equipment, laboratory equipment and other low-pressure applications.

The smooth inner wall provides good flow characteristics and easy cleaning. The transparent material allows easy visual inspection of the media while the tubing's UV resistance helps protect sensitive fluids.

Features

• Cost-effective PVC tubing
• Smooth inner wall
• Good flexibility
• UV resistant
• Transparent design
• Glossy surface
• Good abrasion resistance

Technical Specifications

• Material: PVC
• Colour: Transparent
• Inner Diameter (ID): 3.0 mm
• Outer Diameter (OD): 5.0 mm
• Wall Thickness: 1.0 mm
• Operating Temperature: 0°C to +70°C
• Supply Length: 5 m

Intended for water, air and other low-pressure applications. This product is not specified as pressure-rated tubing.

Transparent PVC tubing 4.0 x 6.0 mm for water, air, dosing equipment, laboratory systems and other low-pressure applications.

The tubing has a smooth inner wall that supports good flow characteristics and easy cleaning. The transparent material allows easy visual inspection of flow and media, while the PVC material provides a cost-effective and flexible option for technical installations.

Features

• Cost-effective PVC tubing
• Smooth inner wall
• Good flexibility
• UV resistant
• Transparent design
• Glossy surface
• Good abrasion resistance

Technical Specifications

• Material: PVC
• Colour: Transparent
• Inner Diameter (ID): 4.0 mm
• Outer Diameter (OD): 6.0 mm
• Wall Thickness: 1.0 mm
• Operating Temperature: 0°C to +70°C
• Supply Length: 5 m

Intended for water, air and other low-pressure applications. This product is not specified as pressure-rated tubing.

Transparent PVC tubing 6.0 x 8.0 mm for water, air, laboratory equipment, dosing systems and other low-pressure applications.

The tubing has a smooth inner wall that supports good flow characteristics and easy cleaning. The transparent material allows easy visual inspection of flow and media, while the PVC material provides a cost-effective and flexible option for technical installations.

Features

• Cost-effective PVC tubing
• Smooth inner wall
• Good flexibility
• UV resistant
• Transparent design
• Glossy surface
• Good abrasion resistance

Technical Specifications

• Material: PVC
• Colour: Transparent
• Inner Diameter (ID): 6.0 mm
• Outer Diameter (OD): 8.0 mm
• Wall Thickness: 1.0 mm
• Operating Temperature: 0°C to +70°C
• Supply Length: 5 m

Intended for water, air and other low-pressure applications. This product is not specified as pressure-rated tubing.

Transparent silicone tubing 1.0 x 3.0 mm suitable for laboratory systems, water treatment equipment, air systems, ozone applications, dosing pumps and general process installations.

The silicone material provides excellent flexibility, low adsorption and strong resistance to ageing. The transparent design allows easy visual inspection of flow and air bubbles.

Features

• Low adsorption
• Good abrasion resistance
• Long service life
• Ageing resistant
• Odour free
• Highly flexible
• Transparent design
• Temperature resistant from -60°C to +200°C

Technical Specifications

• Material: Silicone
• Colour: Transparent
• Inner Diameter (ID): 1.0 mm
• Outer Diameter (OD): 3.0 mm
• Wall Thickness: 1.0 mm
• Operating Temperature: -60°C to +200°C
• Supply Length: 5 m

Applications

• Laboratory equipment
• Dosing systems
• Ozone systems
• Air and gas systems
• Instrumentation
• Water treatment
• Pilot plants

Transparent silicone tubing 2.0 x 4.0 mm suitable for laboratory systems, water treatment equipment, air systems, ozone applications, dosing pumps and industrial process installations.

The silicone material offers excellent flexibility, low adsorption and strong resistance to ageing. The transparent design allows easy visual inspection of flow and gas bubbles.

Features

• Low adsorption
• Good abrasion resistance
• Long service life
• Ageing resistant
• Odour free
• Highly flexible
• Transparent design
• Temperature resistant from -60°C to +200°C

Technical Specifications

• Material: Silicone
• Colour: Transparent
• Inner Diameter (ID): 1.0 mm
• Outer Diameter (OD): 3.0 mm
• Wall Thickness: 1.0 mm
• Supply Length: 5 m

Transparent silicone tubing 3.0 x 5.0 mm suitable for air, water, ozone, laboratory equipment, dosing systems and general process applications.

The silicone material provides excellent flexibility, low adsorption and strong resistance to ageing. The transparent design allows easy visual inspection of flow, particles and air bubbles.

Features

• Low adsorption
• Good abrasion resistance
• Long service life
• Ageing resistant
• Odour free
• Highly flexible
• Transparent design

Technical Specifications

• Material: Silicone
• Colour: Transparent
• Inner Diameter (ID): 3.0 mm
• Outer Diameter (OD): 5.0 mm
• Wall Thickness: 1.0 mm
• Supply Length: 5 m

Transparent silicone tubing 4.0 x 6.0 mm for water, air, ozone, laboratory equipment, dosing systems and other low-pressure applications.

The silicone tubing is flexible, odour free and ageing resistant, with low adsorption and good abrasion resistance. The transparent material allows easy visual inspection of flow, particles and air bubbles in the system.

Features

• Low adsorption
• Good abrasion resistance
• Long service life under normal use
• Ageing resistant
• Odour free
• Highly flexible
• Transparent design

Technical Specifications

• Material: Silicone
• Colour: Transparent
• Inner Diameter (ID): 4.0 mm
• Outer Diameter (OD): 6.0 mm
• Wall Thickness: 1.0 mm
• Supply Length: 5 m

Note: This tubing is intended for low-pressure applications and is not specified as pressure-rated tubing.

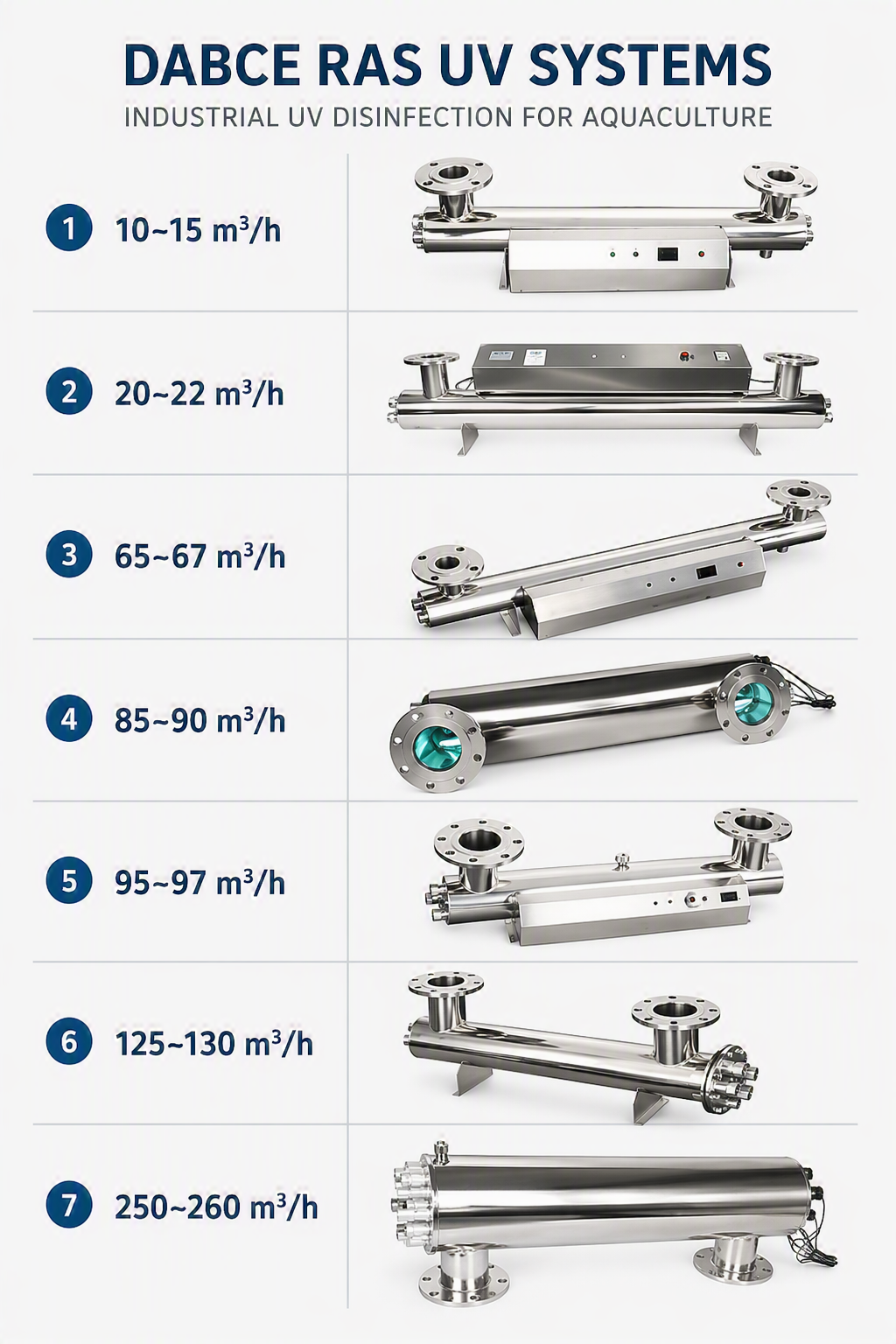

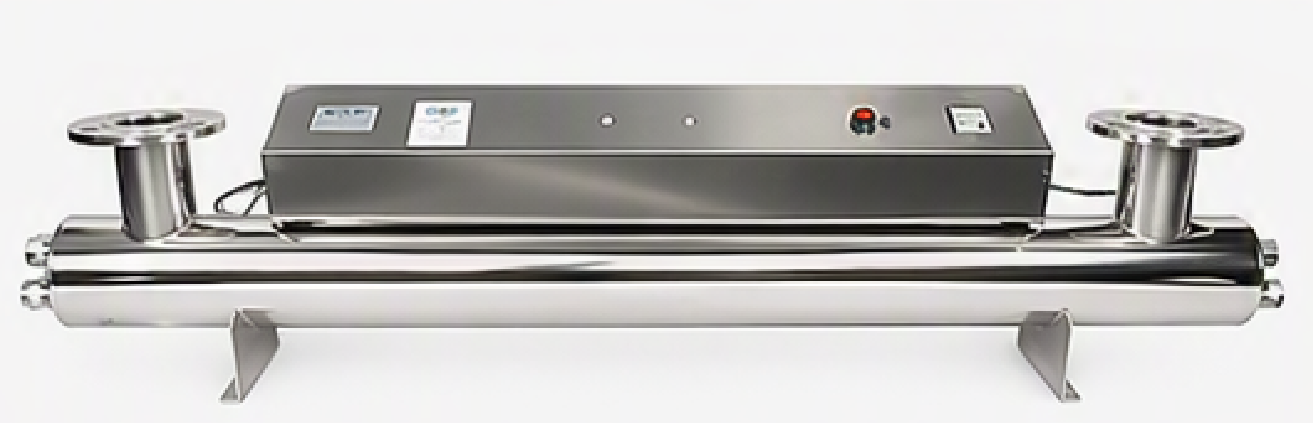

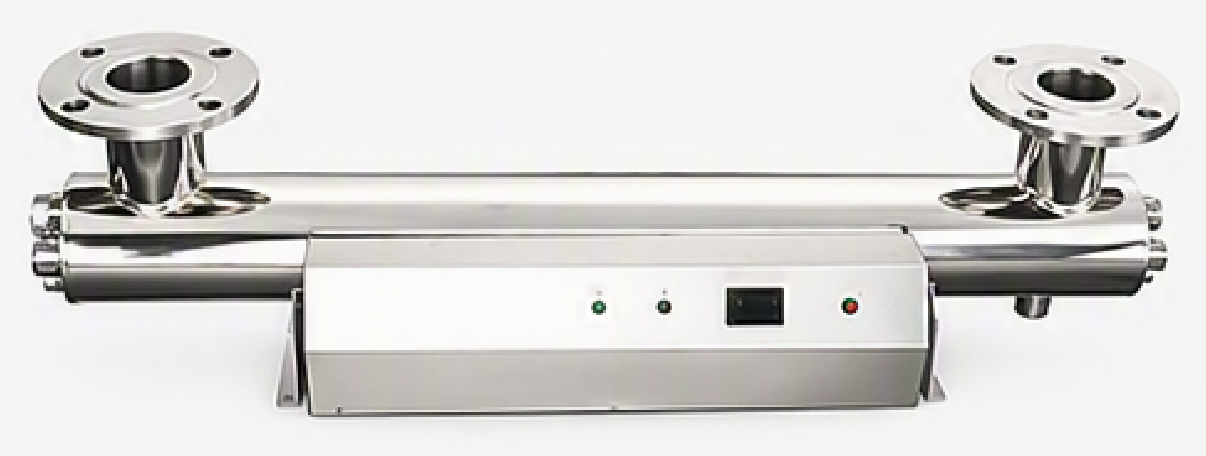

Industrial UV disinfection system designed for recirculating aquaculture systems (RAS), hatcheries, and water treatment applications with flow rates between 10 and 15 m³/h.

The system uses UV-C technology to help reduce microorganisms in water without chemical additives. The treatment process supports biosecurity while maintaining water quality and system performance.

The stainless steel reactor is designed for continuous operation and can be integrated into fish farms, hatcheries, process water systems, and recirculating water treatment installations.

• Designed for RAS and aquaculture applications
• Flow capacity 10–15 m³/h
• Chemical-free UV-C treatment
• Stainless steel construction
• Suitable for continuous operation
• Industrial-grade design
• Low maintenance requirements

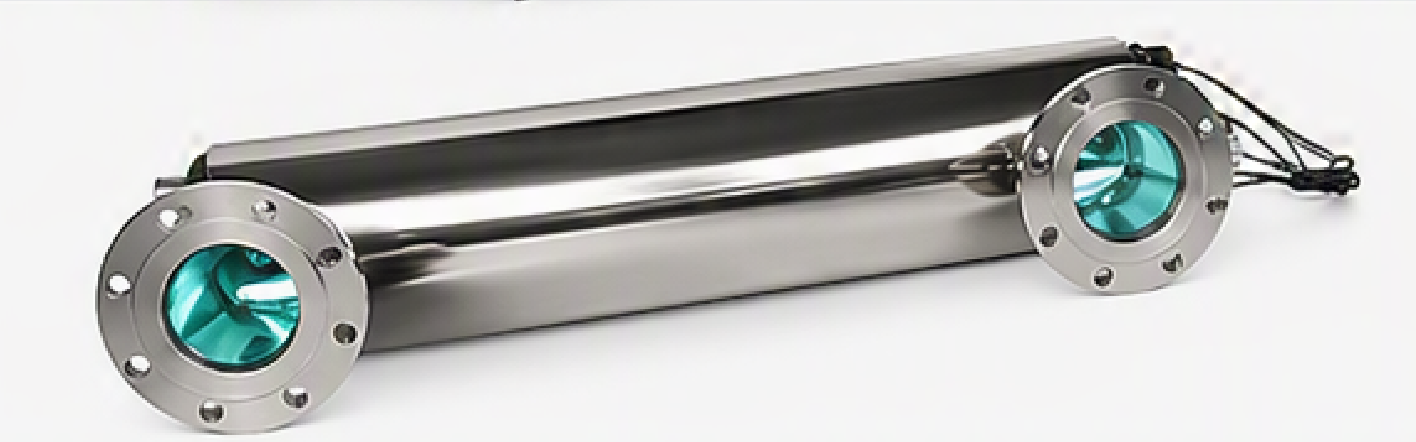

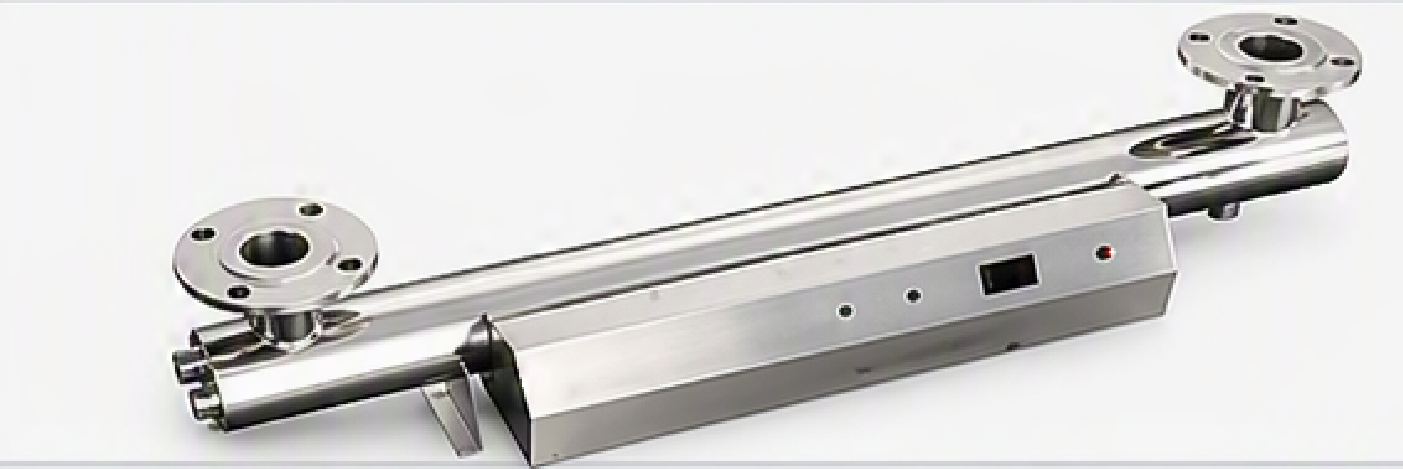

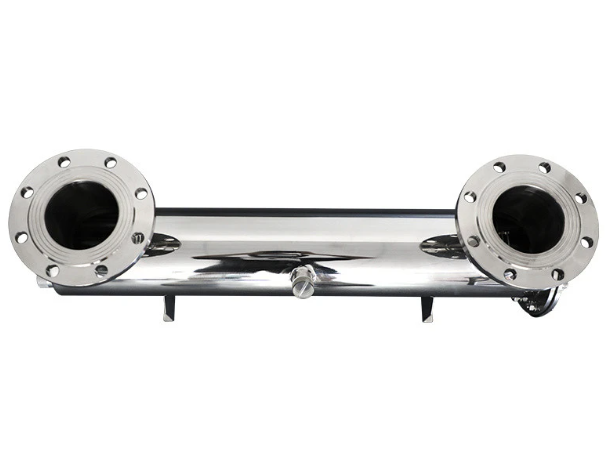

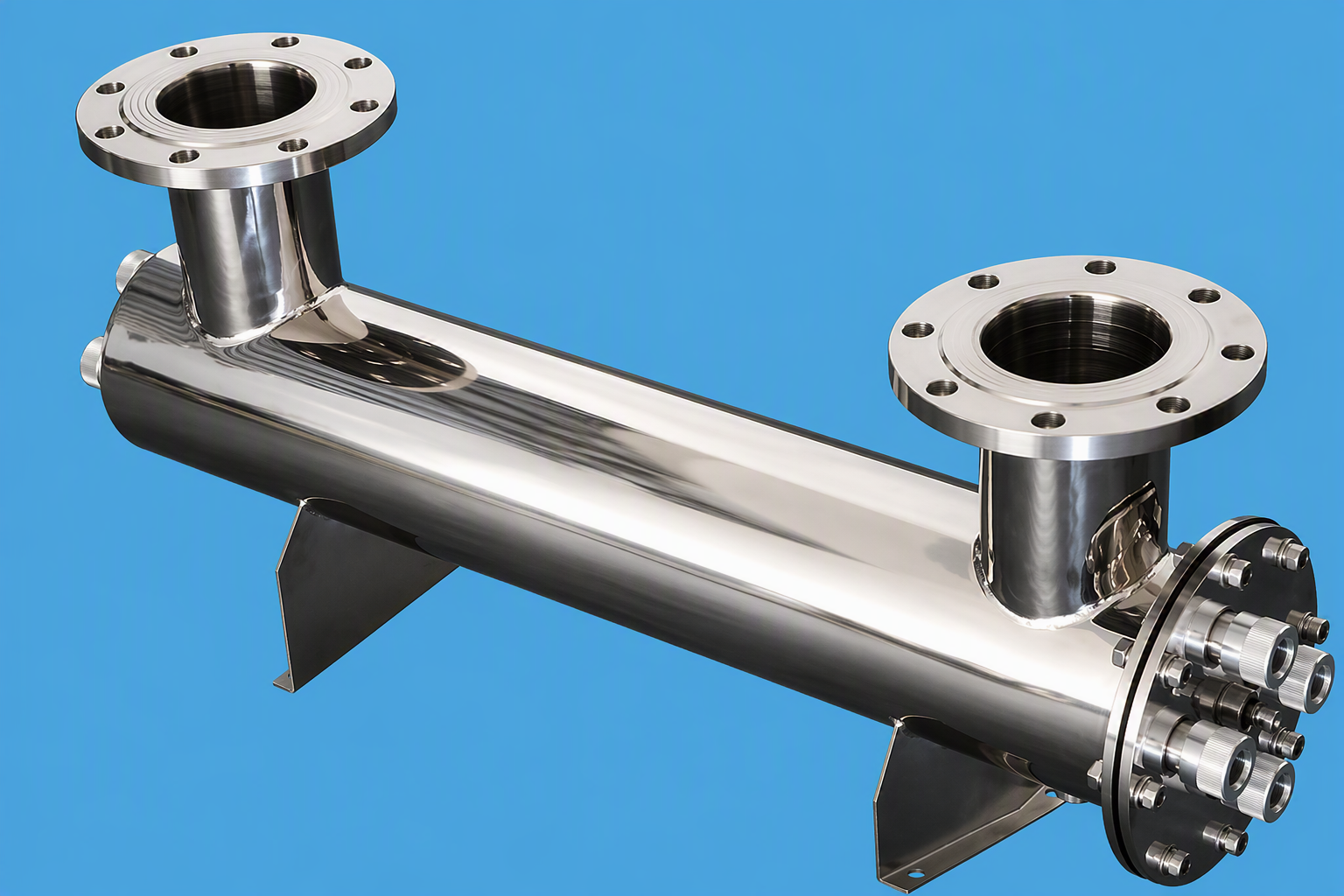

Industrial UV disinfection system engineered for large recirculating aquaculture systems (RAS), commercial fish farms, hatcheries, and high-capacity process water treatment applications.

The system utilizes UV-C technology to help reduce microorganisms in water without chemical additives. UV treatment supports improved biosecurity while maintaining water quality and minimizing the need for chemical disinfection methods.

Designed for continuous-duty operation, the reactor is manufactured from stainless steel and can be integrated into intake water treatment, recirculating water loops, and large-scale water reuse systems.

• Designed for RAS and aquaculture applications
• Flow capacity up to 125–130 m³/h
• Chemical-free UV-C disinfection
• Industrial stainless steel construction
• Suitable for continuous operation
• Supports improved biosecurity
• Suitable for freshwater and marine aquaculture systems
• Designed for demanding industrial environments

Industrial UV disinfection system designed for recirculating aquaculture systems (RAS), hatcheries, fish farms, and process water applications with flow rates up to 20–22 m³/h.

The system uses UV-C technology to help reduce microorganisms in water without chemical additives. UV treatment supports improved biosecurity while maintaining water quality and avoiding chlorine-based disinfection methods.

The stainless steel reactor is designed for continuous operation and integration into recirculating aquaculture systems, intake water treatment systems, and process water applications where reliable UV disinfection is required.

• Designed for RAS and aquaculture applications
• Flow capacity up to 20–22 m³/h
• Chemical-free UV-C disinfection
• Industrial stainless steel construction
• Suitable for continuous operation
• Supports improved biosecurity
• Low maintenance requirements
• Suitable for fresh and marine water systems

Ultra-high-capacity UV disinfection system developed for large-scale recirculating aquaculture systems (RAS), commercial fish farms, hatcheries, and industrial process water applications.

The system utilizes UV-C technology to help reduce microorganisms in water without the use of chemical disinfectants. UV treatment supports improved biosecurity, protects aquatic environments, and helps maintain stable water quality throughout the production cycle.

Engineered for continuous operation, the stainless steel reactor is designed to handle high water flows while maintaining effective UV treatment performance. The system can be integrated into intake water treatment, recirculating water loops, and water reuse applications.

• Designed for large RAS and aquaculture facilities
• Flow capacity up to 250–260 m³/h
• Chemical-free UV-C disinfection
• Industrial stainless steel construction
• Suitable for continuous operation
• Supports improved biosecurity
• Suitable for freshwater and marine aquaculture systems
• Designed for demanding industrial environments

Industrial UV disinfection system designed for medium to large recirculating aquaculture systems (RAS), hatcheries, and fish production facilities.

The system utilizes UV-C technology to help reduce microorganisms in water without chemical additives. UV treatment supports improved biosecurity while maintaining water quality and operational stability.

Designed for continuous-duty operation, the stainless steel reactor can be integrated into recirculating water loops, intake water treatment systems, and process water applications where reliable disinfection is required.

• Designed for RAS and aquaculture applications
• Flow rate up to 65 m³/h
• Chemical-free UV-C disinfection
• Industrial stainless steel construction
• Suitable for continuous operation
• Supports improved biosecurity
• Low maintenance requirements
• Suitable for freshwater and marine aquaculture systems

High-capacity UV disinfection system developed for recirculating aquaculture systems (RAS), fish hatcheries, grow-out facilities, and industrial water treatment applications.

The system utilizes UV-C technology to help reduce microorganisms in water without chemical additives. UV treatment supports improved biosecurity while maintaining water quality and avoiding chemical disinfectants.

Designed for demanding aquaculture and industrial environments, the stainless steel reactor is engineered for continuous-duty operation and integration into recirculating water loops, intake water treatment systems, and process water installations.

• Designed for RAS and aquaculture applications
• Flow capacity up to 85–90 m³/h
• Chemical-free UV-C disinfection
• Industrial stainless steel construction
• Suitable for continuous operation
• Supports improved biosecurity
• Low maintenance requirements
• Suitable for freshwater and marine aquaculture systems

Compact UV water sterilizer designed for reliable and chemical-free water treatment in applications up to 500 litres per hour.

Using UV-C technology, the system helps reduce microorganisms in water without adding chemicals or affecting taste, odour, or water quality. The stainless steel reactor housing and quartz sleeve provide durable operation and efficient UV transmission.

The unit is well suited for drinking water systems, aquariums, laboratory installations, cabins, point-of-use water treatment systems, and other low-flow applications.

• 12W UV-C lamp
• Recommended flow rate up to 500 L/h
• Chemical-free water treatment
• Stainless steel housing
• Quartz sleeve for maximum UV transmission
• Low power consumption
• Compact and easy to install
• Suitable for drinking water and process water applications

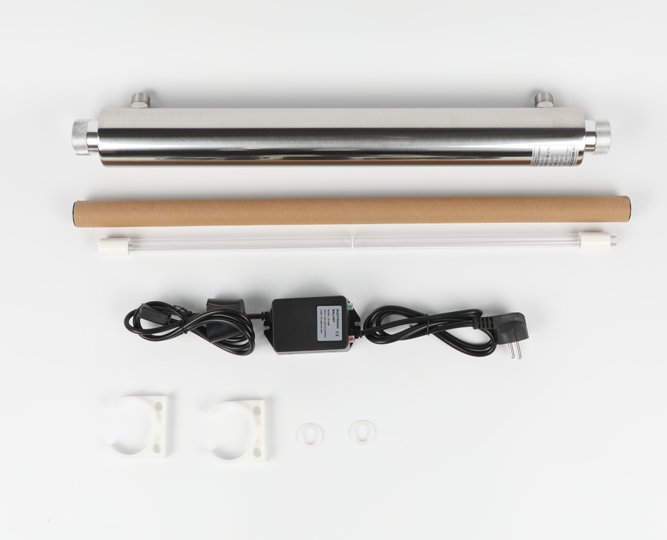

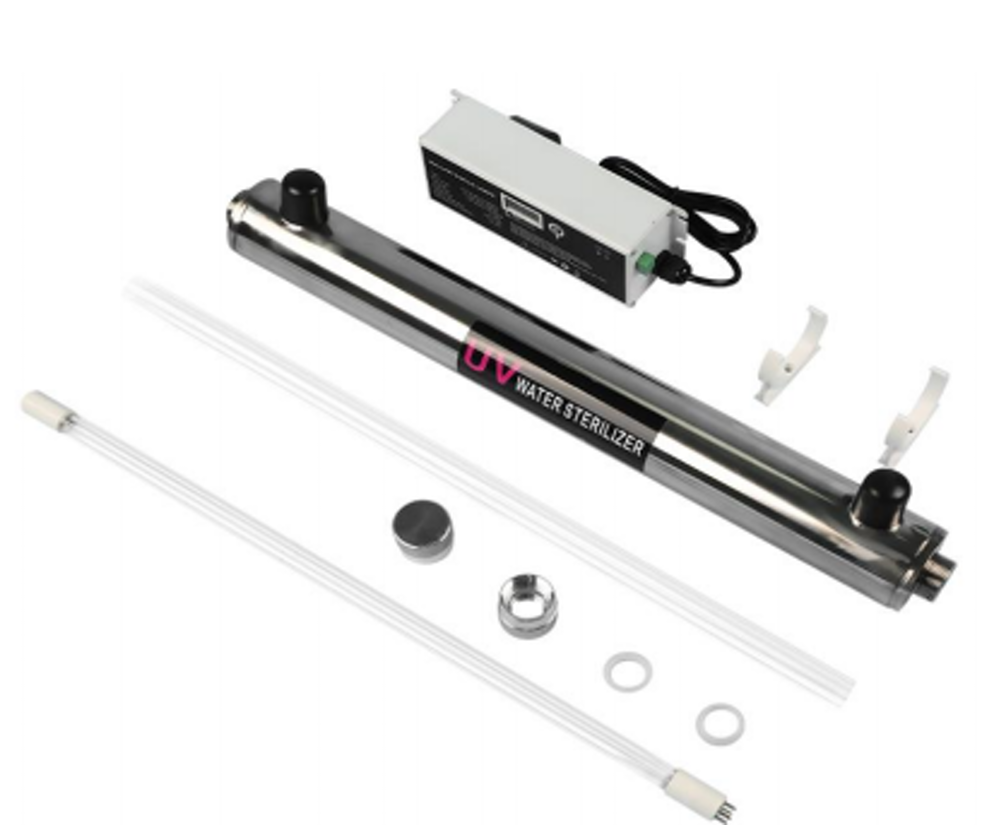

20W UV water sterilizer designed for reliable and chemical-free water treatment in applications up to 1,000 litres per hour.

The system uses UV-C technology to help reduce microorganisms in water without the use of chemicals and without affecting taste, odour, or water quality. The stainless steel housing and quartz sleeve ensure efficient UV transmission and long service life.

Suitable for drinking water systems, aquariums, ponds, laboratory installations, water reuse systems, and general water treatment applications.

• 20W UV-C lamp
• Recommended flow rate up to 1,000 L/h
• Chemical-free water treatment
• Stainless steel housing
• Quartz sleeve for maximum UV transmission
• Low maintenance operation
• Compact design
• Suitable for drinking water and process water applications

25W UV water sterilizer designed for reliable and chemical-free water treatment in applications with flow rates between 1,000 and 2,000 litres per hour.

Using UV-C technology, the system helps reduce microorganisms in water without adding chemicals or changing the taste, odour, or quality of the water. The stainless steel reactor chamber and quartz sleeve ensure long service life and efficient UV performance.

The system is suitable for drinking water treatment, aquaculture systems, ponds, irrigation water, process water, and general water purification applications.

• 25W UV-C lamp
• Recommended flow rate 1,000–2,000 L/h
• Chemical-free water treatment
• Stainless steel housing
• Quartz sleeve for maximum UV transmission
• 1/2" inlet and outlet connections
• Low maintenance operation
• Suitable for drinking water and process water systems

``

30W UV water sterilizer designed for reliable and chemical-free water treatment in applications up to 1,800 litres per hour.

The system utilizes UV-C technology to help reduce microorganisms in water without the use of chemicals and without affecting taste, odour, or water quality. The stainless steel housing and quartz sleeve provide excellent durability and UV transmission.

Suitable for drinking water treatment, aquaculture systems, ponds, irrigation systems, process water, and commercial water treatment installations.

• 30W UV-C lamp
• Recommended flow rate up to 1,800 L/h
• Chemical-free water treatment
• Stainless steel housing
• Quartz sleeve for maximum UV transmission
• 3/4" inlet and outlet connections
• Low maintenance operation
• Suitable for drinking water and process water systems

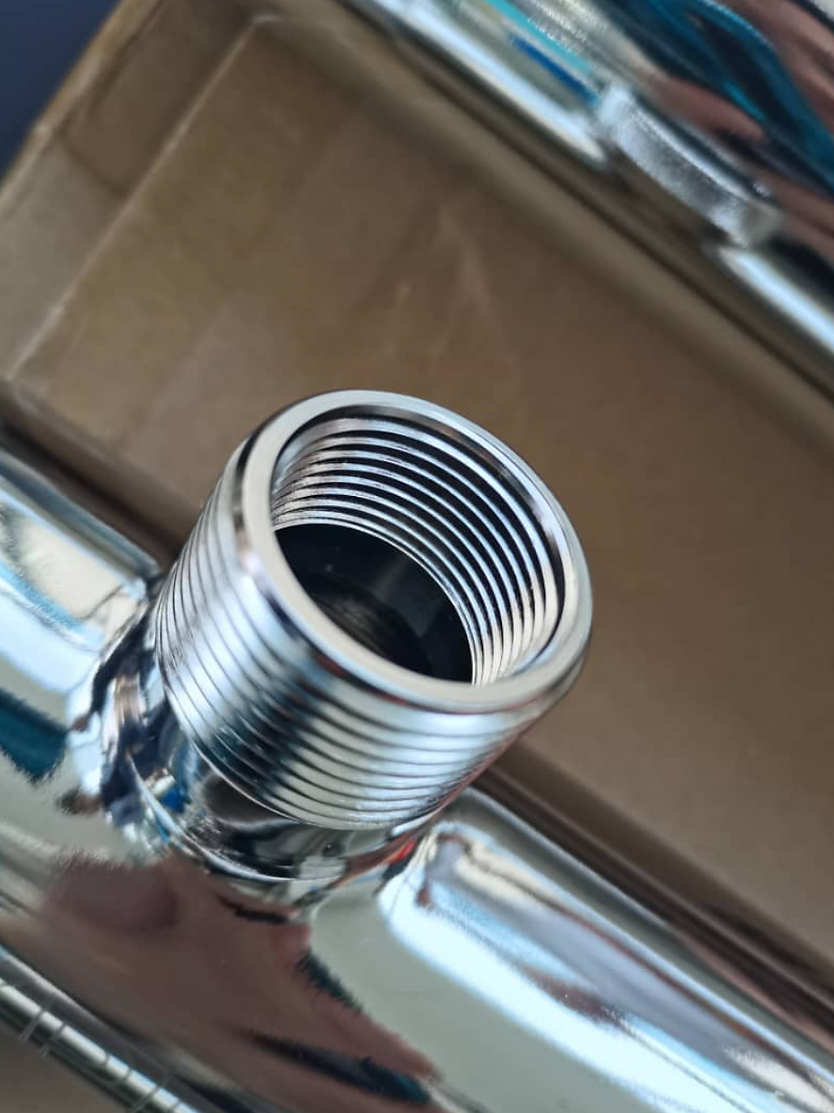

55W UV water sterilizer designed for reliable and chemical-free water treatment in applications up to 2,500 litres per hour.

The system utilizes UV-C technology to help reduce microorganisms in water without chemical additives. Water quality, taste, and odour remain unchanged while the stainless steel reactor chamber and quartz sleeve provide efficient UV transmission and long operating life.

Suitable for drinking water systems, aquaculture facilities, ponds, irrigation systems, commercial buildings, process water applications, and water treatment installations requiring higher flow capacities.

• 55W UV-C lamp
• Recommended flow rate up to 2,500 L/h
• Chemical-free water treatment
• Stainless steel housing
• Quartz sleeve for maximum UV transmission
• Suitable for continuous operation
• Low maintenance requirements
• Suitable for drinking water and process water applications

Compact UV water sterilizer designed for reliable and chemical-free water treatment in low-flow applications up to 100 litres per hour.

Using UV-C technology, the system helps reduce microorganisms in water without adding chemicals or affecting taste, odour, or water quality. The stainless steel chamber and quartz sleeve provide durable operation and efficient UV transmission.

The compact size makes this unit suitable for small drinking water systems, aquariums, laboratory equipment, fountains, and point-of-use water treatment installations.

• 6W UV-C lamp
• Recommended flow rate up to 100 L/h
• Chemical-free water treatment
• Stainless steel housing
• Quartz sleeve for maximum UV transmission
• Low power consumption
• Compact and easy to install
• Suitable for drinking water and process water applications

80W UV water sterilizer designed for reliable and chemical-free water treatment in applications up to 9,100 litres per hour.

The system uses UV-C technology to help reduce microorganisms in water without adding chemicals or affecting taste, odour, or water quality. The stainless steel reactor chamber and quartz sleeve provide excellent durability, efficient UV transmission, and dependable long-term operation.

This model is suitable for larger drinking water systems, aquaculture facilities, process water applications, commercial buildings, irrigation systems, and industrial water treatment installations.

• 80W UV-C lamp
• Recommended flow rate up to 9,100 L/h
• Chemical-free water treatment
• Stainless steel housing
• Quartz sleeve for maximum UV transmission
• Suitable for continuous operation
• Low maintenance requirements
• Suitable for drinking water and process water systems

Compact and robust wind turbine designed for small-scale power generation. Ideal for cabins, off-grid installations, boats, monitoring equipment, and other locations where grid power is limited or unavailable. The aerodynamic design with integrated tail vane ensures stable operation and automatic alignment with the wind for optimal energy production. Supplied complete with a hybrid wind and solar controller, making it easy to integrate into a self-sufficient renewable energy system. Rated power 300 W. Horizontal-axis wind turbine with automatic wind tracking via tail vane. Suitable for 12V or 24V battery systems depending on configuration. Compact, weather-resistant construction for reliable operation in demanding outdoor environments.
