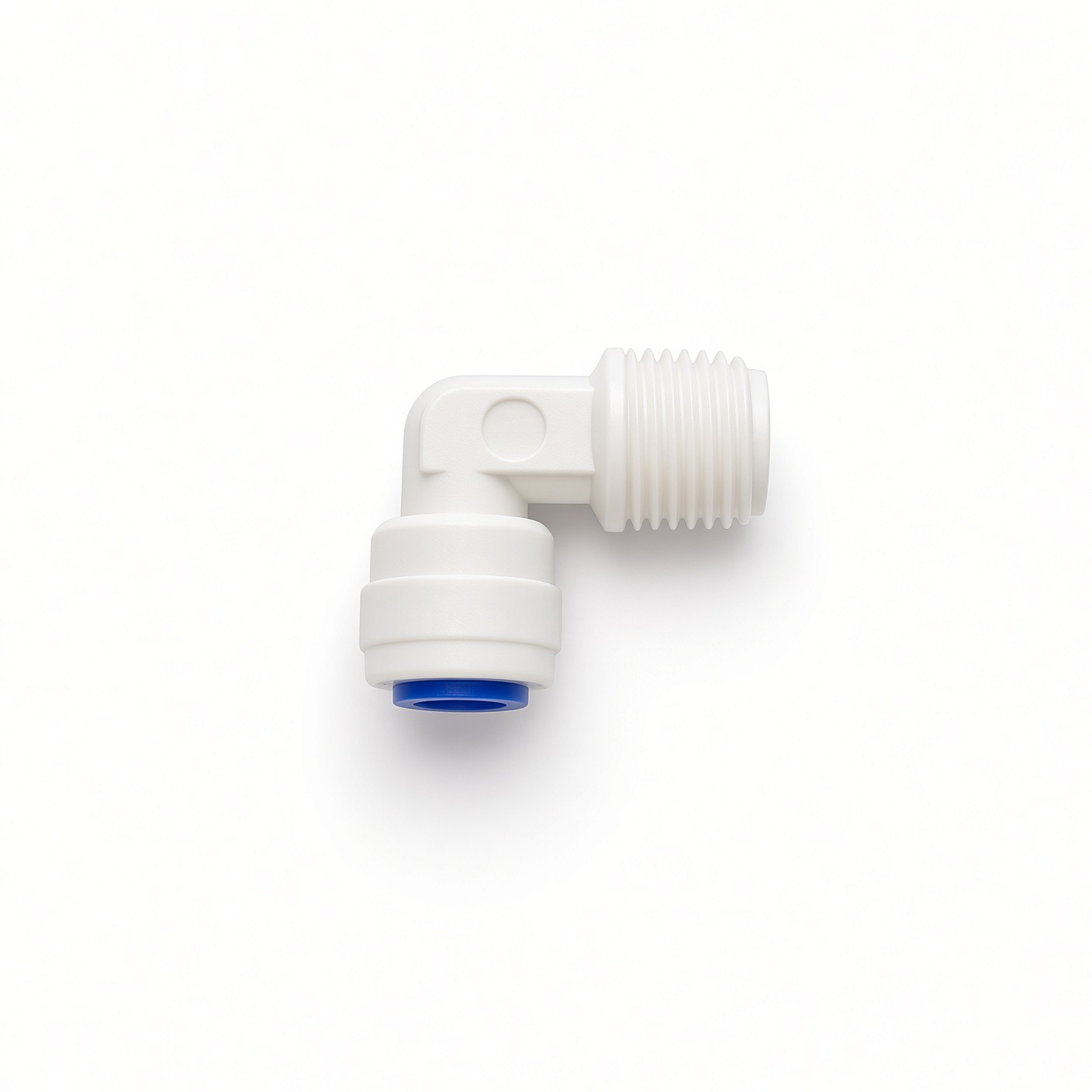

90° Push-Fit Panel Mount Elbow Connector 6 mm

90° Push-Fit Bulkhead Elbow Connector is a compact panel-mount fitting designed for 6 mm tubing installations through panels, cabinets, enclosures and equipment housings.

The connector features push-fit tube connections for quick installation without tools and an integrated mounting thread for secure panel mounting. The 90-degree design allows neat tubing routing while minimizing bend radius requirements.

Technical Specifications

• Type: 90° bulkhead elbow connector
• Connection: Push-Fit
• Tube size: 6 mm OD
• Configuration: Push-Fit × Push-Fit
• Mounting: Integrated panel-mount thread
• Material: Engineering plastic
• Colour: White with blue locking collet
• Tool-free tube installation
• Suitable for water, air and compatible process fluids

Typical Applications

• Reverse Osmosis (RO) systems
• Water treatment equipment
• Drinking water systems
• Instrumentation
• Control cabinets and enclosures
• Dosing equipment
• Laboratory systems
• Ozone and air systems
