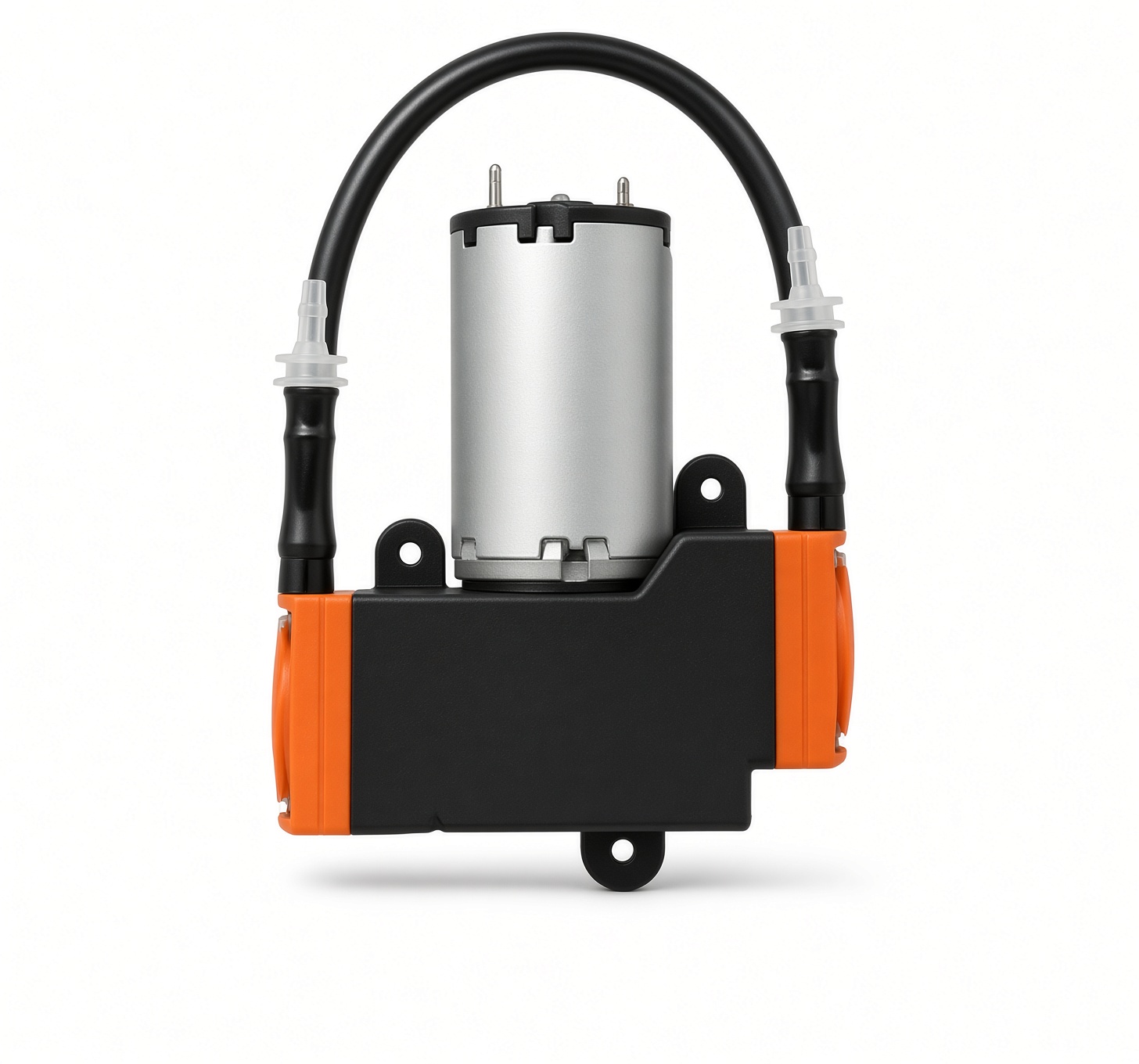

Diaphragm air pump 24V, 10 L/min

Small diaphragm pump for air and vacuum. 24V brushed motor, vacuum down to −0.07 MPa. Dry-running.

Price (incl. VAT): 1,790.00 SEK

Weight: 0.240 kg

Back to catalogue

Diaphragm air pump for air, vacuum and gas. Parallel connection for higher flow. Dry-running and maintenance-free. The medium contacts the pump head and the rubber, so check chemical compatibility.

Specification

Motor: 24V DC, brushed
Control: on/off
Flow: at least 10 L/min, air, 25 °C, no load
Vacuum: down to −0.07 MPa
Positive pressure is not recommended. Not for long continuous duty above 0.02 MPa
Power: 9 W
Noise: 74 dB or less at 50 cm
Weight: about 0.24 kg
Life: at least 2,000 h
Materials: pump head and body PA, diaphragm and valve EPDM
Environment: 0 to 40 °C, below 80% humidity, no condensation
CE and RoHS

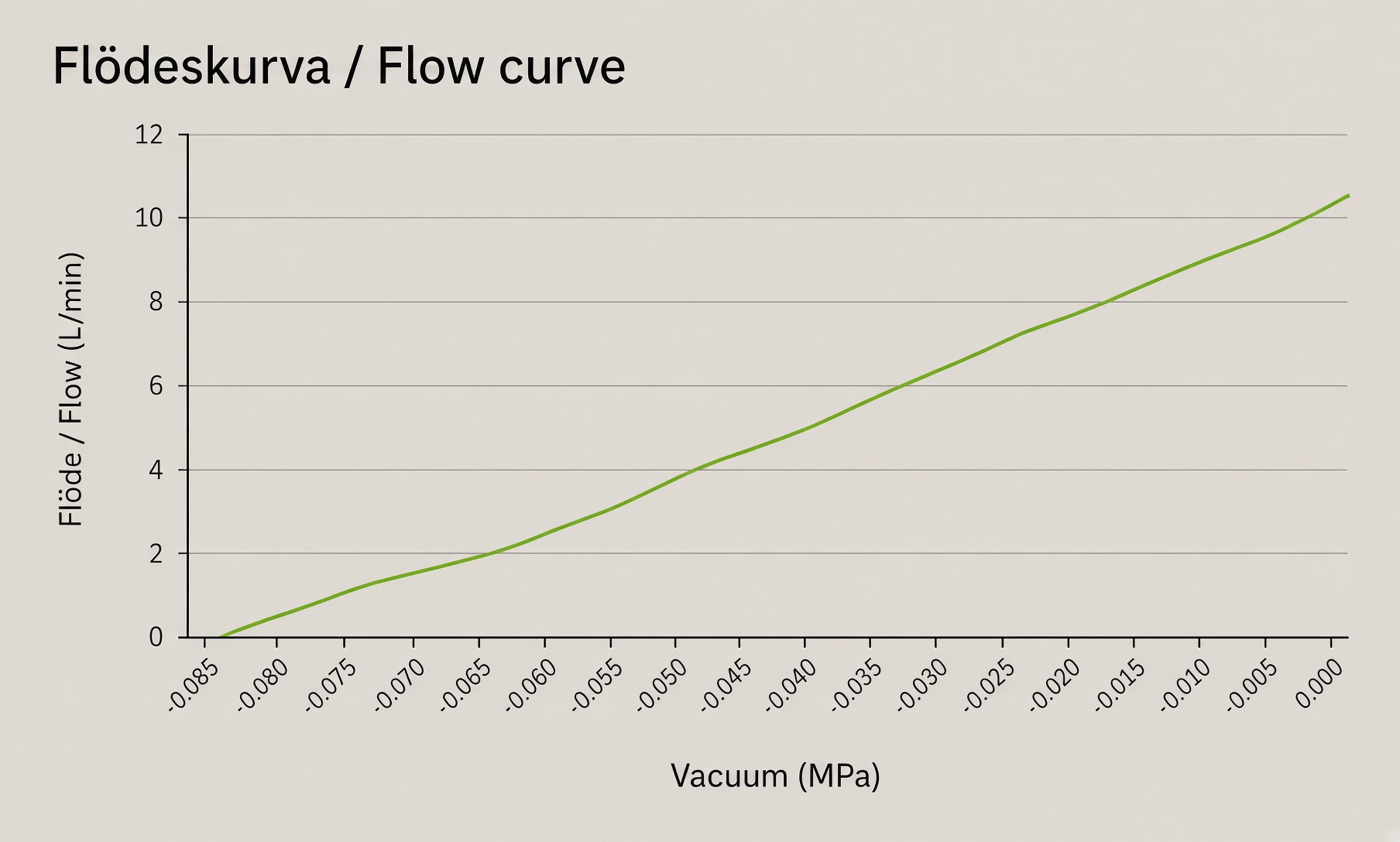

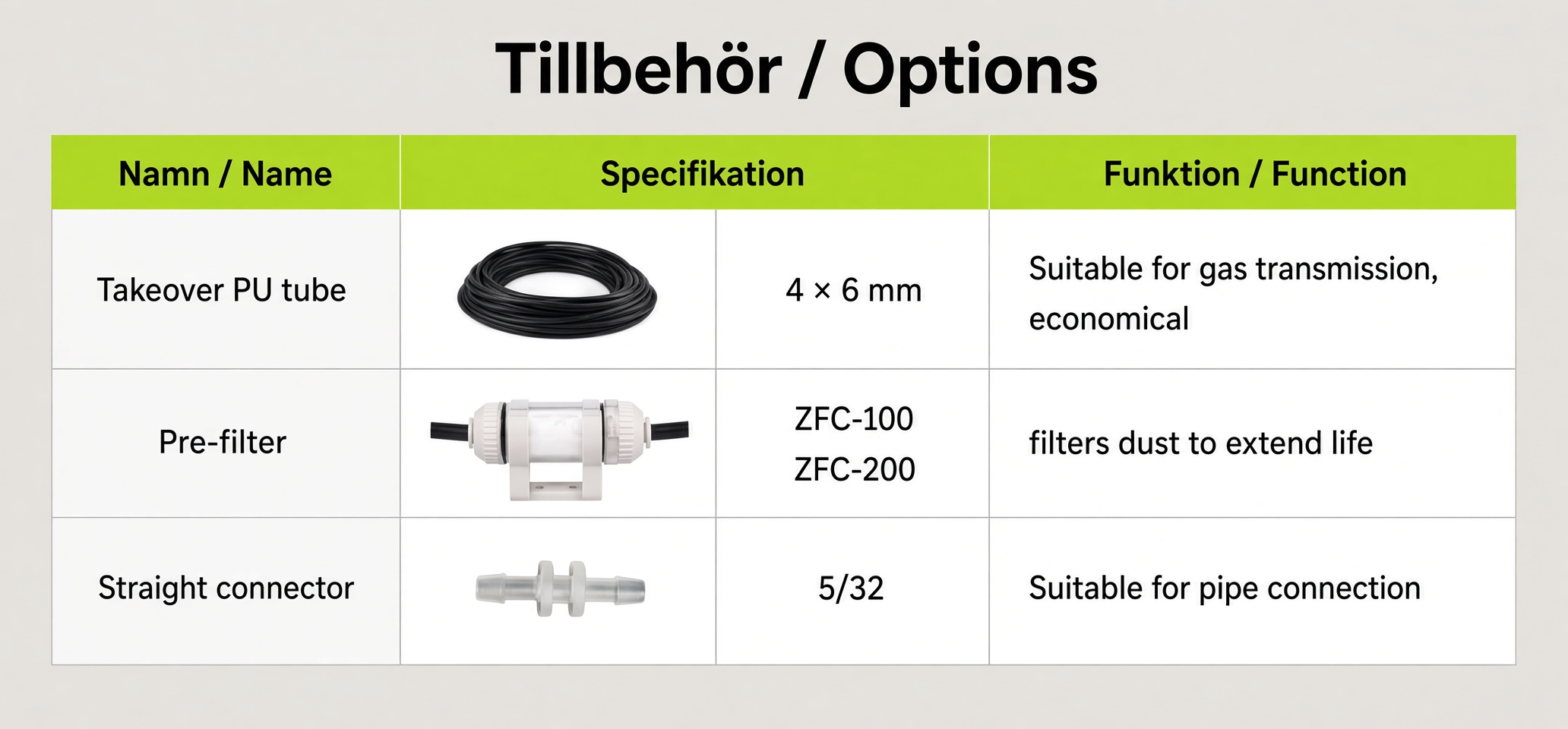

For gas detection, suction cups, instruments and vacuum. Fit a pre-filter if the air contains dust. The flow curve is a reference only.
