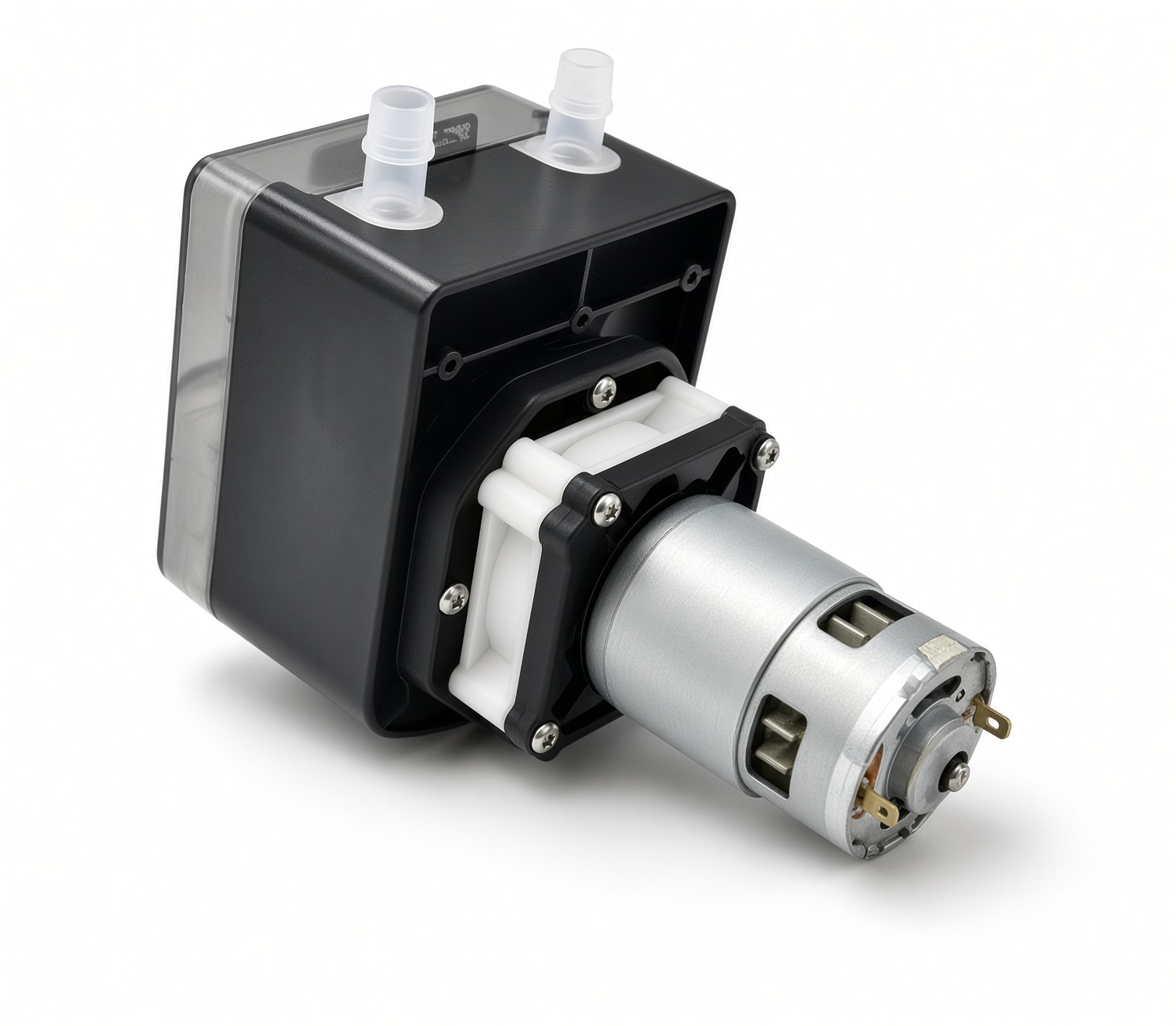

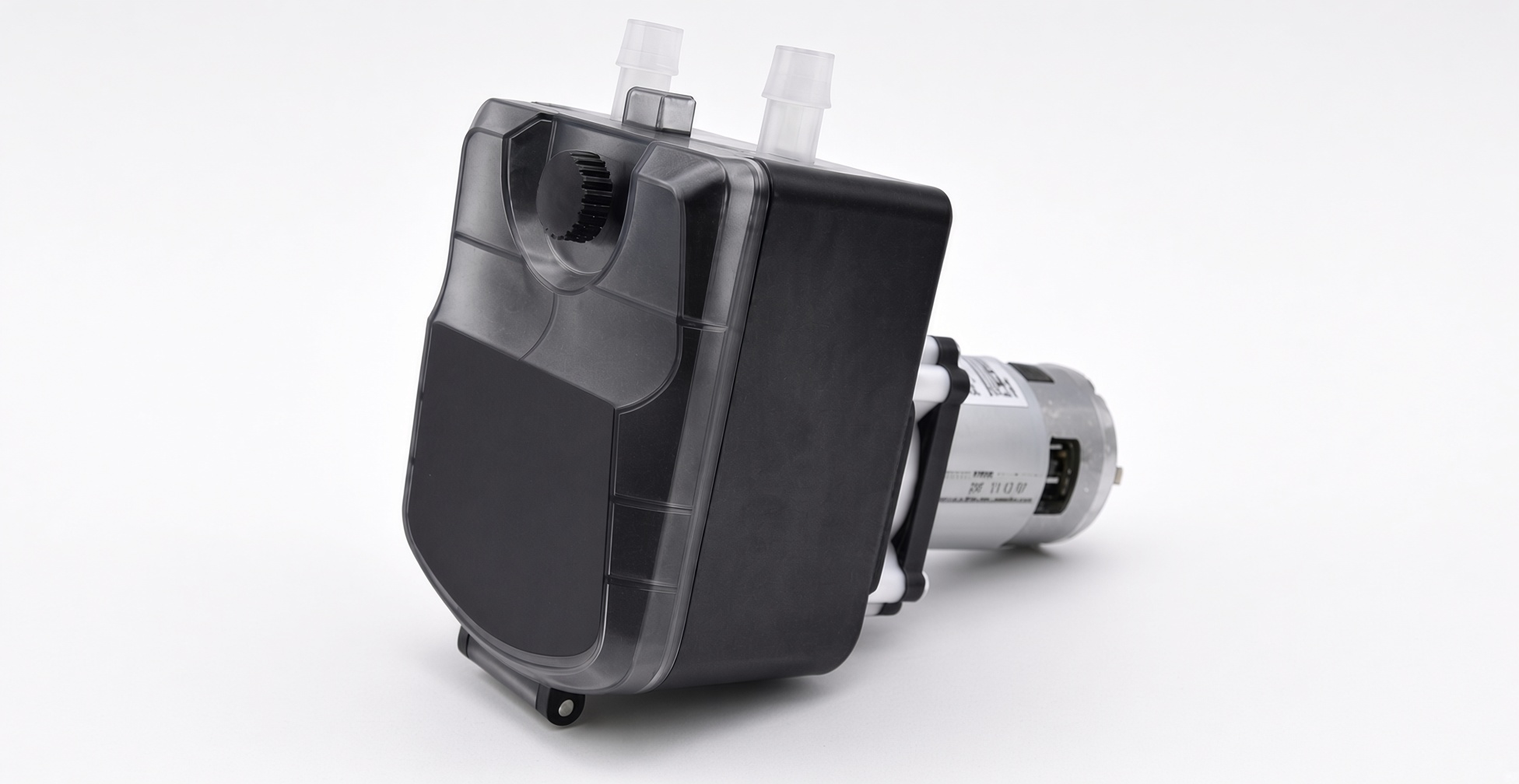

Peristaltic pump 24V, 180 L/h

Peristaltic pump for higher flows of viscous liquid. Only the tube contacts the fluid. Snap-on head for tube replacement. Straight mounting board.

Specification

• Motor: 24V DC, brushed
• Power: 48 W or less
• Control: on/off
• Tube: silicone, 9.5 × 16.1 mm
• Reference flow: 3,000 ml/min (about 180 L/h), pure water, 20 °C, no back pressure
• Weight: about 1.24 kg
• Tube life: about 120 h. Motor: about 800 h
• Environment: max 45 °C, max 70% humidity, no condensation
• Red wire positive, black negative

For filling, coolant, crop spraying and chemical transfer. Flow varies with media, outlet pressure and motor speed. Not intended for continuous duty.
