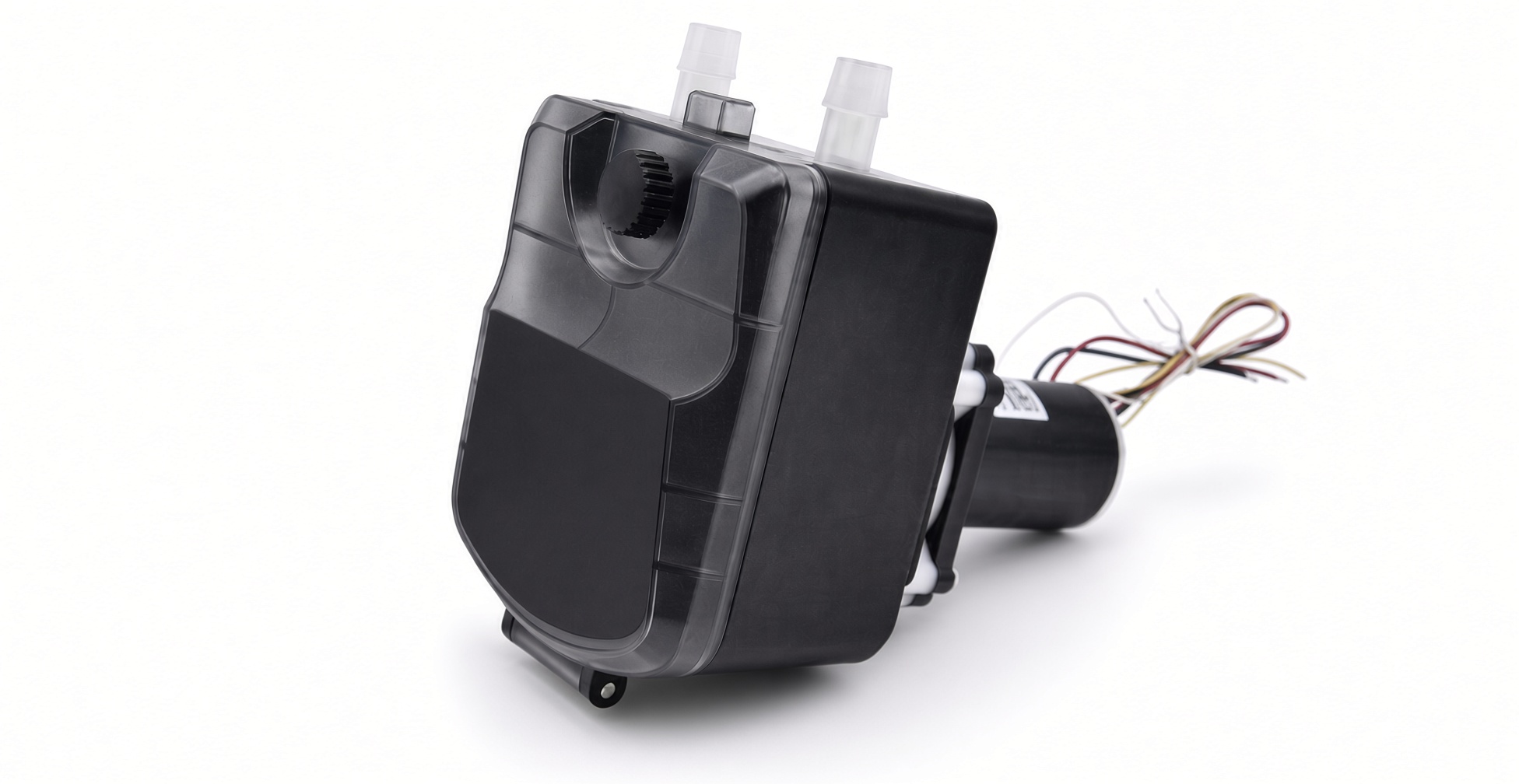

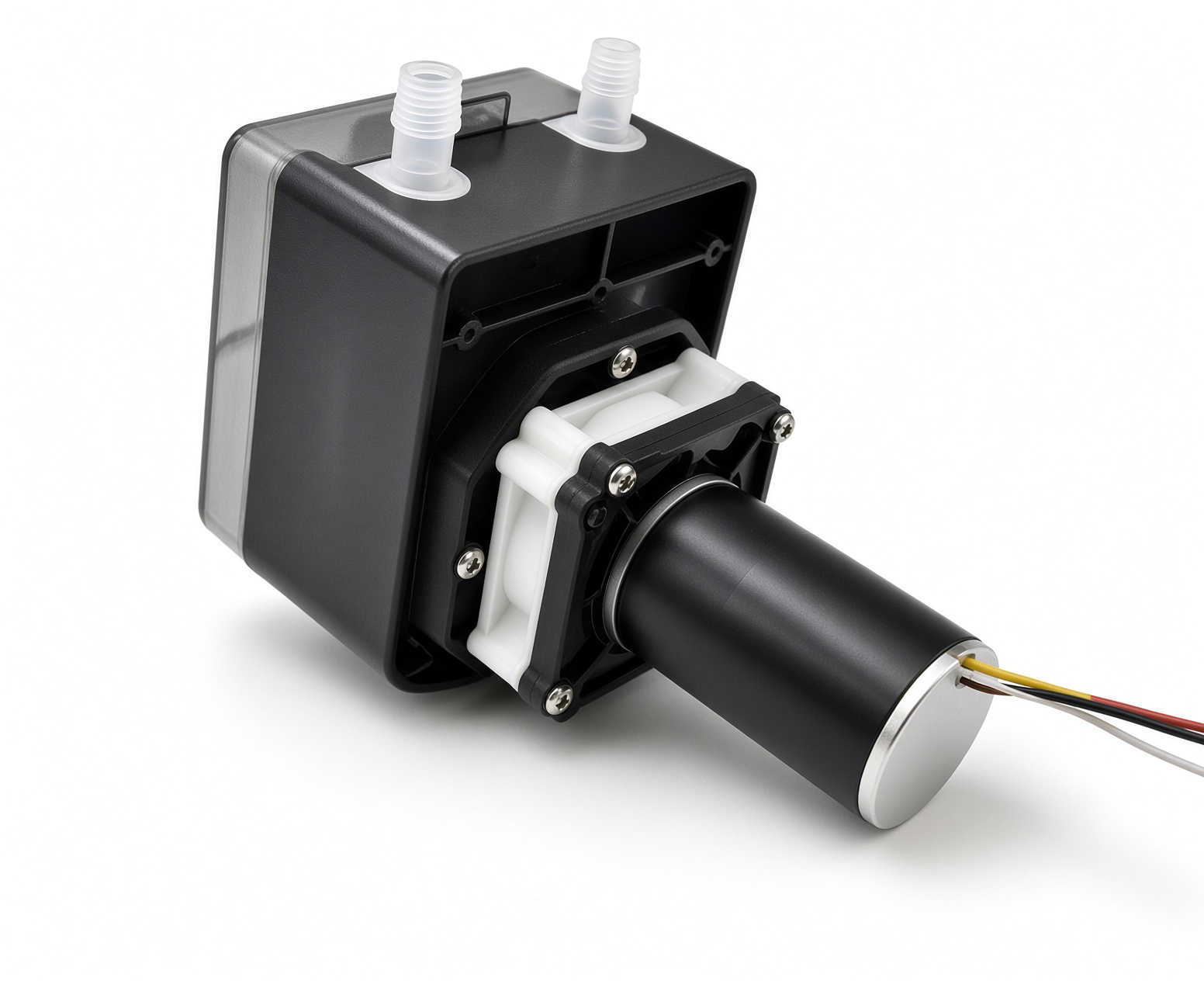

Peristaltic pump 24V brushless, speed control

Peristaltic pump with a brushless 24V motor and speed control. Only the tube contacts the fluid. Snap-on head for tube replacement. Straight mounting board.

Specification

• Motor: 24V DC, brushless
• Power: 48 W or less
• Control: on/off or PWM
• Tube: silicone, 9.5 × 16.1 mm
• Reference flow: 3,100 ml/min (about 186 L/h), pure water, 20 °C, no back pressure
• Weight: about 0.71 kg
• Tube life: about 120 h. Motor: about 2,000 h
• Environment: max 45 °C, max 70% humidity, no condensation
• Red positive, black negative, white speed control, yellow speed feedback. Reverse-polarity protection
• PWM 10–30 kHz, 5 V. Open speed wire: motor does not run

For filling, coolant, crop spraying and chemical transfer where the flow needs to be controlled. Flow varies with media, outlet pressure and speed. Not intended for continuous duty.
